Creating Your Python Scripts

Creating a New Cleanse Service

Create a python script with two function definitions:

Parent function, where we intend to do the following:
1. Parse and read the input CSV data rows.
2. Execute the child cleanse function for each row of data.
3. Consolidate results into an output result set.
4. Transform the output results into CSV format.
5. Return the CSV data as results.
Child function, where we intend to do the following:
1. Data prep (trimming white spaces, replacing unexpected characters, etc.).
2. Data validation.
3. Data standardization and/or normalization.
4. Data enrichment.
5. Returns output values that include tag_value and tag_category definitions.

Attached is a template for creating new Python cleanse functions. Every section of this code is commented as:

Default. Copy and reuse this portion of the code.
Custom. Make changes to this portion of the code as required.

Note: This template does not include code for error handling, logging, and authentication. Python developers are responsible for implementing the coding and engineering best practices applicable to their organization.

Exposing a Cleanse Service as an API

Create a Python script to expose your cleanse routine as a REST API.

Create the Flask App instance.
Define the route to handle incoming web requests and send responses to the user.

We are using Flask (a lightweight Python web framework) for this tutorial. For production, the Flask program should be invoked using a more robust server (for example, Gunicorn).

Note: This template does not include code for error handling, logging, and authentication. Python developers are responsible for implementing the coding and engineering best practices applicable to their organization.

Testing Your Web Application

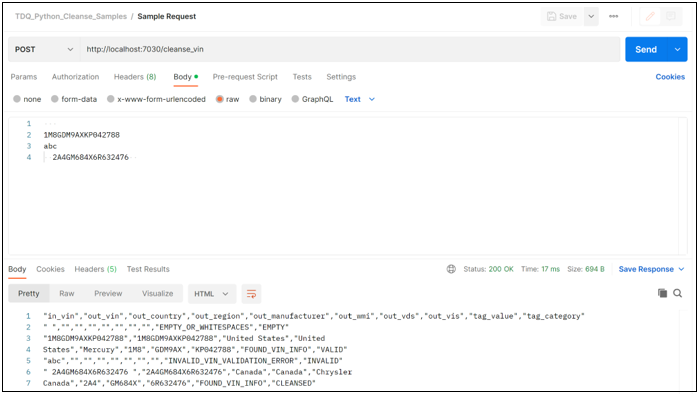

Use an API client like Postman to connect and POST test data to your API. For example:

Service Registration

Service Definition JSON

Create a definition for the service in JSON format (an example is included below). Unless otherwise noted, the field is required.

Attribute	Description
name	Name of the service, must be unique in the custom workspace.
description	A brief description of the service.
location	Service location URL.
sendFullDataSet	Optional. Set this to true if the service expects the entire data set as input, as opposed to one row at a time.
supportsJson	Optional. Set this to true if the service can interpret the request body in JSON format and generate a response in JSON format.
inputColumns	An array of paired values that have: name. Name of the input column. description. A brief description of the input column.
outputColumns	An array of paired values that have: name. Name of the output column. description. A brief description of the output column.
parameters	Optional. An array of values that have: name. Name of the parameter. description. A brief description of the parameter.
credentials	Optional. A pair of values that have: user. User name for the service credentials. password. Password for the service credentials.

The following is an example of a JSON document for a new service called cleanse_vin:

{
	"name": "custom_cleanse_vin",
	"description": "Cleanses and validates Vehicle Identification Numbers",
	"location": "http://docker.internal.host:7030/cleanse_vin",
	"inputColumns": [
		{
			"description": "Input value for Vehicle Identification Number",
			"name": "in_vin"
		}
	],
	"outputColumns": [
		{
			"name": "out_vin",
			"description": "input value when tag_category is VALID, cleansed value when tag_category is CLEANSED, default value when tag_category is MISSING or INVALID"
		},
		{
			"name": "out_country",
			"description": "Country where the vehicle was manufactured"
		},
		{
			"name": "out_region",
			"description": "Region where the vehicle was manufactured"
		},
		{
			"name": "out_manufacturer",
			"description": "Name of the manufacturer"
		},
		{
			"name": "out_wmi",
			"description": "World Manufacturer Identifier"
		},
		{
			"name": "out_vds",
			"description": "Vehicle Descriptor Section"
		},

	{
			"name": "out_vis",
			"description": "Vehicle Identification Section"
		},
		{
			"description": "Tag value that provides explanation for malformed, unexpected or missing data",
			"name": "tag_value"
		},
		{
			"description": "Tag category that categorizes tags as Missing Data, Cleansed Data or Invalid Data",
			"name": "tag_category"
		}
	],
	"tags": [
		{
			"description": "Input value is an empty string or contains all whitespaces",
			"name": "EMPTY_OR_WHITESPACES"
		},
		{
			"description": "Input value is valid and VIN information was successfully retrieved",
			"name": "FOUND_VIN_INFO"
		},
		{
			"description": "VIN information not found",
			"name": "COULD_NOT_FIND_VIN_INFO"
		},
		{
			"description": "Input value is INVALID and failed checksum",
			"name": "INVALID_VIN_FAILED_CHECKSUM"
		},
		{
			"description": "Input value is invalid and failed VIN validation",
			"name": "INVALID_VIN_VALIDATION_ERROR"
		}
	]
}

Service Registration Endpoint

To register a new service, POST the service definition JSON (described above) to the following endpoint:

https://{{host}}:9803/api/v1/service

The response will contain the ID of the new service.

If a new service is successfully registered, it will be available for Rule authors to create new TIBCO DQ Rules using this new service.
