Creating a Project

Projects are BusinessWorks application modules that are created in TIBCO Business Studio. A project contains various resources.

Procedure

  1. Open TIBCO Business Studio using one of the following ways:
    • Microsoft Windows: Click Start > All Programs > TIBCO > TIBCO Business Studio version_number > Studio for Designers.
    • Linux or Mac OS: Run the TIBCO Business Studio executable file located in the TIBCO_HOME/studio/version_number/eclipse directory.
  2. Click File > New > BusinessWorks Resources.
  3. In the BusinessWorks Resource Wizard dialog, click BusinessWorks Application Module, and then click Next. The New BusinessWorks Application Module dialog is displayed.
    Note: There are several ways to open the New BusinessWorks Application Module dialog and create a new project in TIBCO Business Studio. See the TIBCO ActiveMatrix BusinessWorks documentation for more information.
  4. In the Project name field, enter a name for the project.
  5. Keep the Use default location, Create empty process, and Create Application check boxes selected. Click Finish.

Result

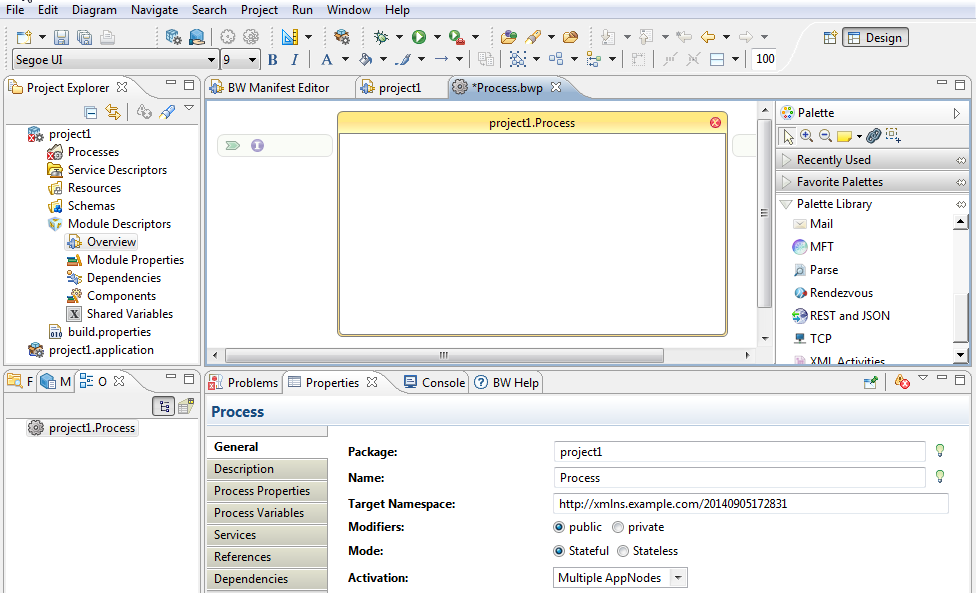

A project and an application are created and displayed in the Project Explorer view. The Process editor is displayed automatically.
