The Service Palette

A service implements one or more interfaces and exposes one or more endpoints per interface. In web service terminology, the interface would be a PortType in a WSDL 1.1 file. The endpoint would be referred to as a port. However, the term endpoint does not imply a physical network address where the service is listening. Services provide an abstraction of web services so that you can implement a more generic service-oriented architecture (SOA) that is not dependent upon a specific transport or implementation. The Service palette contains resources that allow you to define services.

Services decouple the underlying transport from the implementation. You can define an interface you wish to offer, describe the endpoints through which clients can access the service, and specify the implementation for each operation in the service.

In this release of TIBCO ActiveMatrix BusinessWorks, each service can implement any number of interfaces. The endpoints available are SOAP over HTTP, SOAP over JMS and Local.

For example, you may wish to offer a bidding service that implements a Buyer interface. The interface is exposed on the SOAP over HTTP endpoint. The operations contained in the Buyer interface are Bid, Retract, and Raise.

See TIBCO ActiveMatrix BusinessWorks Palette Reference for a detailed description of the resources in the Service palette.

Figure 44 illustrates the service model.

Figure 44 Service model

A service joins an abstract WSDL interface to concrete implementations and exposes them on one or more endpoints. A web service client invokes one of the abstract interface operations using configuration settings provided by the service in the form of concrete WSDL bindings.

Context Separation

Because the Service resource separates the service definition from the transport and the implementation of operations, your implementations may require context information from the underlying request on the specific transport. For example, you may wish to alter processing of the request based on the user ID of the requestor, or you may wish to access the client’s digital signature. The Context resource allows you to define a schema for storing relevant context information.

You can define Context resources, each containing the schema for the data you wish to use. Each operation within a Service resource can then reference a particular Context resource. You can map data from the incoming request (for example, MIME message attachments, authentication and SSL information, and so on) into the elements of the schema defined in your Context resource.

When a Context resource is specified, the data from the incoming request is passed to the implementation defined for an operation. The process definition that implements the operation can use the Get Context and Set Context activities to retrieve or set values for elements within the context.

See TIBCO ActiveMatrix BusinessWorks Palette Reference for more information about the Context resource and the Get Context and Set Context activities.

Configuring a Service

When specifying a Service resource, you must supply the following:

•	a WSDL file — this defines the interface for the service. This interface describes the operations contained in the service and input, output, and fault messages for the operations.

•	endpoint bindings — endpoints expose the location of the service to the service partner. An endpoint binding specifies the transport to use for the endpoint, any transport-specific properties, and any SOAP details (such as SOAP version, SOAP action, and so on).

•	operation implementation — each operation must specify the process definition to execute for the operation.

You can also specify other items, such as headers for input and output messages and context information from the client’s request.

Figure 45 illustrates the relationship between the configuration elements of a service and the web service client. The Service palette chapter of TIBCO ActiveMatrix BusinessWorks Palette Reference describes how to configure a Service resource more completely.

Figure 45 Relationship between WSDL, Service, Process, and web service clients

Operation Implementation

In TIBCO ActiveMatrix BusinessWorks, process definitions implement operations. The input, output, and error schemas for the process definition that implements an operation must match the input, output, and fault messages specified for the operation. Figure 46 illustrates the WSDL file and matching process input, output, and error schema specifications for a process definition. See Start Activity and End Activity for more information about specifying input, output, and error schemas for process definitions.

Figure 46 Input, output, and fault messages of operation must match respective schemas of process



You can specify only one WSDL message for the input schema, or output schema, or for each error schema. This message must be the root of the schema and the schema should not contain any other messages or schema elements. Do not specify more than one WSDL message or any other schema elements.

Running Services

When you deploy and run a project containing a Service resource, a service agent is created for the Service resource. The service agent waits for incoming requests on its specified endpoints and creates process instances to execute the implementation of the requested operation.

For each incoming request, the service agent passes the request’s input message and any specified context information to the process instance that implements the requested operation. The process instance executes and sets the appropriate values in the output message or fault message, if an error occurs. The service agent then sends the output or fault message to the client.

Partners and Partner Link Configurations

Partners are external services that can be invoked from BusinessWorks Process Definitions. Partners are defined by a name and a WSDL portType that describes the operations that can be invoked. The Invoke Partner activity is used within a process definition to invoke an operation on a partner service. The Receive Partner Notification activity is used within a process definition to invoke notification services, where the notification service sends a message that the invoker receives. Partners can be located either inside the same project as the process that invokes the service, or the partner can be an external partner service invoked over the Internet by way of the SOAP protocol.

To define a partner for the process definition, follow this general procedure:

1.	Use the + and X buttons to add or delete partners in the table in the Partners field for a process definition. Move the partners up or down the list using the arrow buttons.

2.	Double click on the value in the Partner Name column of the table to set the name of the partner service.

3.	Select a partner, then use the Browse button in the PortType field to locate the appropriate WSDL containing the portType for the partner.

4.	In the Select a Resource dialog, select the appropriate WSDL file and PortType, then click OK.

5.

Optionally, you can use the Browse button in the Partner Link field to specify the Partner Link Configuration resource that contains the partner’s endpoint. If you specify the partner link in this field, you do not need to specify the Partner Binding tab in the Service when this process definition is used as an operation implementation. If you do not specify the partner link here, you must specify the partner binding on the service.

Partner Link Configuration resources associate partners with endpoints. Your service can then correlate partners invoked by the operations with partner link configurations that specify the actual bindings to endpoints.

Instead of specifying the actual endpoint of a partner service in the process definition, you may wish to specify the interface, and then let the service that uses the process bind the interface to the actual endpoint. This allows you to easily change third-party partner services without changing your implementation.

To create a partner link configuration resource, follow this general procedure:

1.	Drag and drop a Partner Link Configuration resource onto the design panel.

2.	Click the + button to add a new partner. If necessary, use the X button to delete partners or the arrow buttons to move partners up or down the list.

3.

In the Select a Service Endpoint dialog, select a valid endpoint. For WSDL files, valid endpoints are configured ports within the WSDL file. For services within the project, only endpoints configured to use LOCAL as the transport can be specified. If you wish to invoke a local service over SOAP, use a concrete WSDL that exposes the service by way of SOAP. If necessary, you can later change an endpoint for the specified partner by double clicking on the Service Endpoint column of the partner and selecting a new endpoint.

4.	The partner appears in the table in the Partner field. Specify a name for the partner in the Name field. Specify a timeout (in seconds) for the amount of time you wish to allow for invokes to wait while a service responds. Zero indicates an unlimited amount of time.

Applying WS-Security Policy for Partner Link Configuration

Endpoint operation of a partner link defined in a Partner Link Configuration resource acts as a security subject and the security policies can be applied to it. There is a unique association between the partner link service endpoint operation security subject and the applied security policies.

The SOAP event source polices are applied at the operation level. The policies applied to a Partner Link Configuration resource are always at the service endpoint operation level.

To apply a policy on a Partner Link Configuration, follow this procedure:

1.	Drag and drop a Partner Link Configuration resource onto the design panel.

2.	Click the + button to add Partner Link with SOAPEndpoint. If necessary, use the X button to delete partner links or the arrow buttons to move partner links up or down the list.

3.	Drag and drop Security Policy Association resourse onto the design panel.

4.	Drag and drop Security Policy resource onto the design panel.

5.	Name the Security Policy, for example, Inbound Security Policy.

6.	From the Policy Type drop-down, select inbound.

Follow the similar process of outbound, inbound fault and outbound fault.

7.	Click the Select button to the right of the Apply Policy to field. In the Choose Security Subject dialog box, expand Partner Link Configuration resource and select a service endpoint operation.

8.	Click in the Inbound Message Policy field. In the Select a Resource dialog box, expand Policies and select, Inbound Security Policy, in this case.

Follow the same process for Outbound Message Policy, Inbound Fault Message Policy, and Outbound Fault Policy.

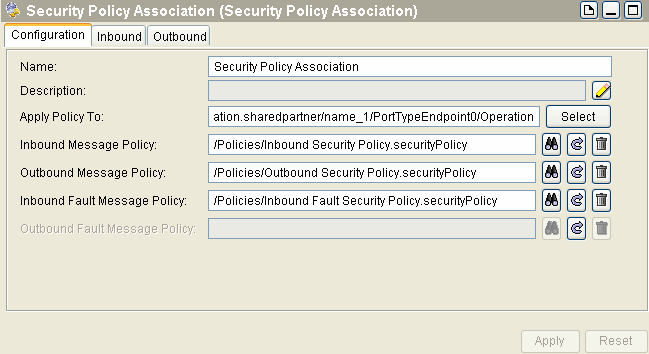

Figure 47 Security Policy Association



•	Apply Policy To - for associating the security policy with the PortTypeEndpoint.

•	Inbound Message Policy - for applying security policy to the messages being received.

•	Outbound Message Policy - for applying security policy to the messages being sent.

•	Inbound Fault Message Policy - for applying security policy to the fault messages being received.

•	Outbound Fault Message Policy - for applying security policy to the fault messages being sent.

Associating Policies with the Invoke Partner Activity

Invoke Partner activities are bound using the partner links and support the message level security.

Using the service endpoint operation as the security subject ensures consistency in associating the security policies with the service resources. The service resource also exposes the service endpoint operation as a security subject. Exposing partner links as security policy subjects ensures a WS-Security support for all the TIBCO ActiveMatrix BusinessWorks or TIBCO ActiveMatrix BusinessWorks BPEL Expension constructs that use partner links for outbound invocations. This implies that the Invoke Partner activity is WS-Security enabled if, it is bound using a partner link that has a SOAP endpoint.

If a user associates the security policies to a particular partner link service endpoint operation, the WS-Security processing is enabled and performed according to the WS-Security guidelines. All the supported WS-Security constructs must work in context with the partner link service endpoint operation security subject.

Headers for Declared Faults

This feature enables the user to configure headers for declared faults. With this the user will be able to configure different schemas to be mapped to the headers for different Fault messages. A Fault Headers tab (Figure 48) has been added to the Advanced SOAP Settings. You can map the context resource values to the configured header using the Fault Headers tab.

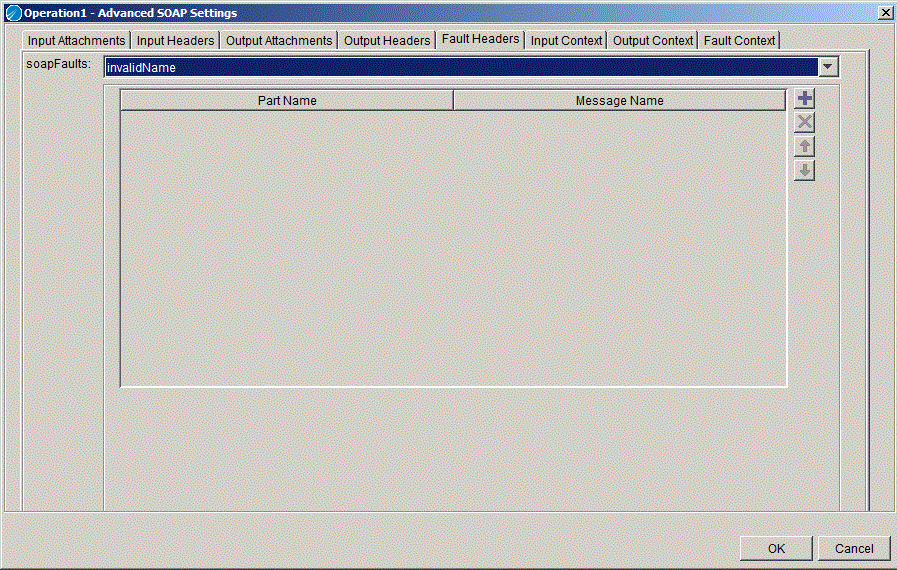

Figure 48 Fault Headers



Configuring Headers for the Fault Message

To configure headers for a fault message, as shown in Figure 49, for example, configure headers in the context resource in the same way they were configured in the headers for declared Fault:

Figure 49 Faults Configured in the Service Resource

1.	Click "Operation1" to go to the Advanced tab of the Service Resource.

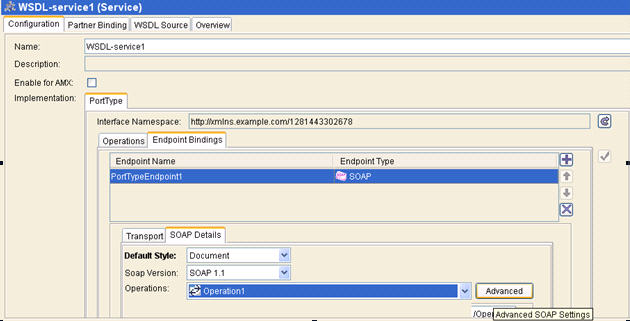

Figure 50 Advanced Tab for Configured Fault Message

2.	Click the Fault Headers tab.

Both the Faults available for that operation are listed in the soapFaults drop-down as shown in Figure 51. Configure the fault message for any of the selected fault. Select the fault header name and Partname of the selected fault same as the Output Headers.

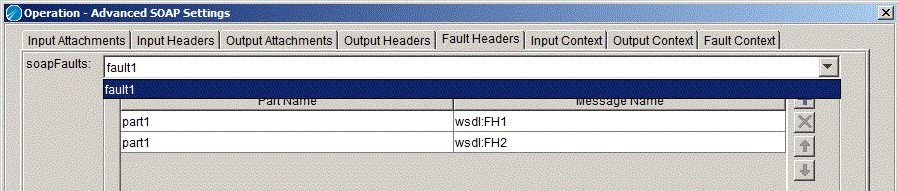

Figure 51 SOAPFault Messages

Configuring Context Resource

The way headers are configured in Headers for Declared Faults, define the Context Resource that can be used to map user inputs to the configured headers.

Irrespective of the number of fault messages for which headers are configured, there will be only one shared context resource to be used. Hence, the schema defined for this context resource will be a superset of all schemas.

Figure 52 Context Resource

Mappings on the Fault Context Tab

To do mappings on the Context Resource:

1.	Go to Fault Context tab and pick the configured context resource.

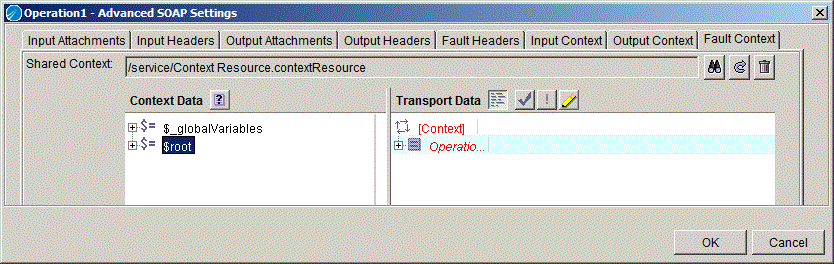

Figure 53 Mappings on Fault Context



2.	Map the Context Data to the configured headers in the Transport Data.

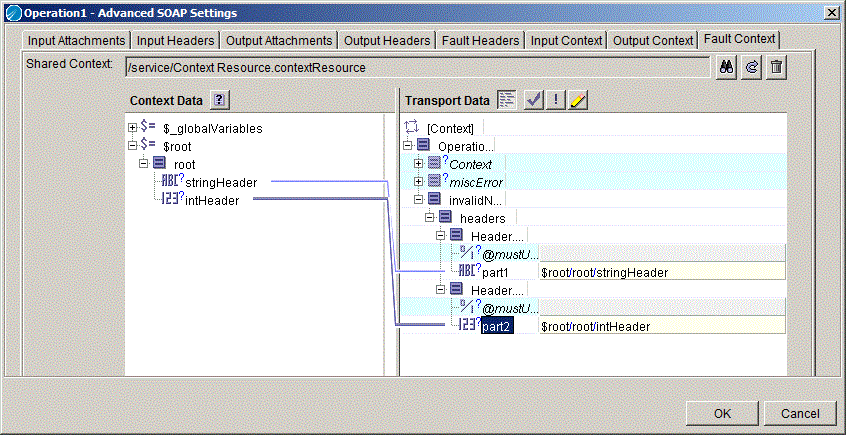

Figure 54 Mapping Configured Headers



In the Implementation process before sending the invalidName fault, use the Set Context Activity and configure values as shown in Figure 55.

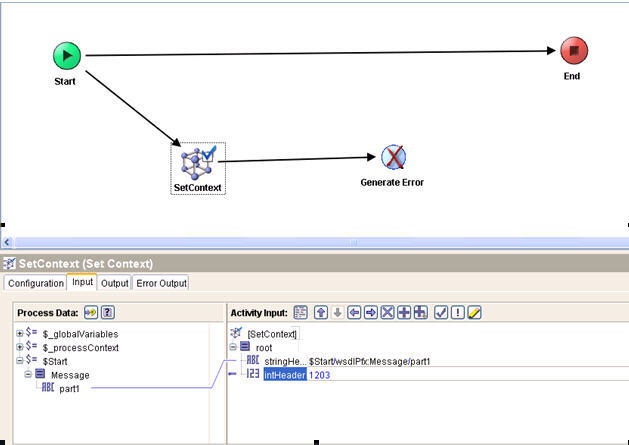

Figure 55 Implementation Process



Ensure that right header context is set before sending the appropriate fault message. Configuring fault in the declared fault shows the Fault Header on the wire in the outgoing SOAP fault message and incoming SOAP fault message under the header section. For example, if you configure headers for invalidName fault and use the SetConetxt activity to configure them in the process but select throw miscError fault in the Generate Error activity, then that fault header configuration will be ignored.
