SOAP Fault Sub-Element Propagation

This feature allows the SOAP Fault sub-elements - faultcode, faultstring, and faultactor to be specified on SOAP faults generated by TIBCO ActiveMatrix BusinessWorks. With this mechanism the SOAP faults generated within the TIBCO ActiveMatrix Business Works process can be propagated to the framework in which it is embedded. To configure and propagate the SOAP fault context, the SOAP endpoint configuration user interface for the service and partner link configuration resources are enhanced to include the configuration of fault context.

Fault Context for a Service Resource

Fault Context tab in the Advanced SOAP Settings screen allows the user to select a context resource. User can map the fault elements to the context object as shown in Figure 64.

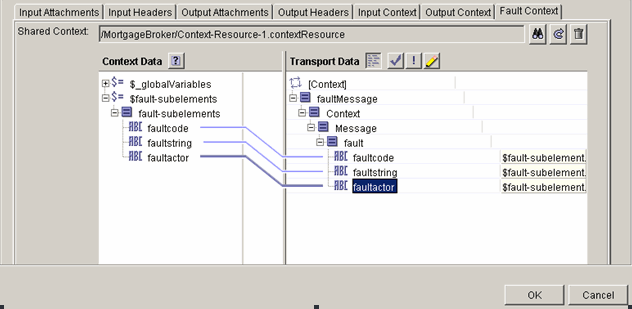

Figure 64 Fault Context Data Mapping in Service Resource

The selection of the shared context resource enables the mapper. The Context Data contains the global variables and the shared context resource data, while the Transport Data contains the basic representation of the context.

Configuring Fault Context on Partner Link Configuration

You can select a shared context resource. The selection of the shared context resource enables the mapper, whose left hand side contains the global variables and the canonical representation of the context, while the right hand side contains the context resource element.

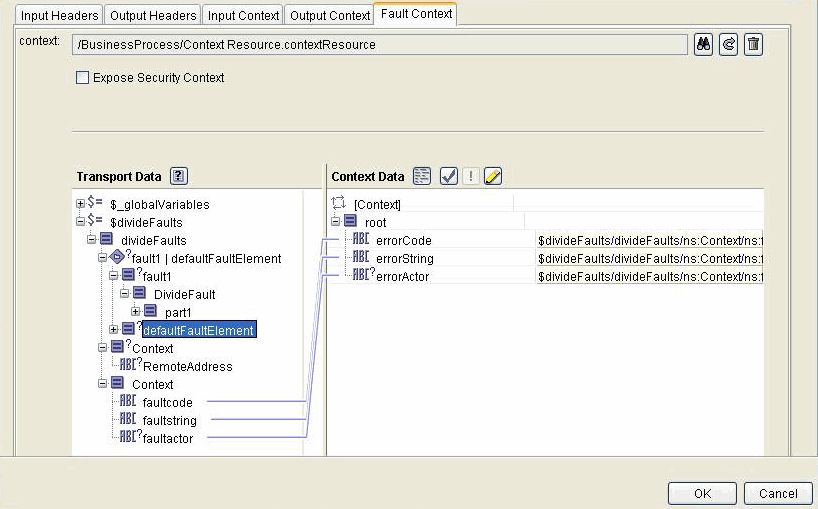

Figure 65 Fault Context Propagation on Partner Link Configuration
