Implementing a REST Service Using a JSON File with "allOf" Keyword

This REST sample shows how to use the OpenAPISpecification 3.0 JSON file with "allOf" keyword to create a RESTful service for adding, updating, and retrieving pets data from a pet store.

The sample uses the following HTTP methods for the Pets REST resource:

• GET: Get details of dog from the petstore

• PATCH: Update dog data to the petstore

• POST: Add cat details to the petstore



Implementing a REST Service Using a JSON File with "allOf" Keyword:

Procedure

1. In the samples directory, select binding > rest > allOf and double-click tibco.bw.sample.binding.rest.allOf. For more information, see the Accessing Samples section.

2. In the Project Explorer, expand the tibco.bw.sample.binding.rest.allOf project.

3. Set the default application profile to match the operating system you are using. For more information, see Setting the Default Application Profile.

4. Fully expand the Processes directory and double-click Pets_Service.bwp.

5. Click Run > Debug Configurations.

6. At the left side pane of the Debug Configuration wizard, expand BusinessWorks Application and select BWApplication.

7. Click the Applications tab and then click the Deselect All button, if you have multiple applications. Select the checkbox next to tibco.bw.sample.binding.rest.allOf.application.

8. Click Debug. This runs the sample in the debug mode.

   The console window shows engine messages similar to:

   Started BW Application [tibco.bw.sample.binding.rest.allOf.application:1.0].

   The OSGI command to list REST and Swagger URLs is lrestdoc, which lists the following discovery URL:

   [Application Name]: tibco.bw.sample.binding.rest.allOf.application1.0

   [Discovery Url]: http://bwin2k16-67:7777/tibco.bw.sample.binding.rest.allOf.application

9. Launch the Google Chrome browser and open http://bwin2k16-67:7777/tibco.bw.sample.binding.rest.allOf.application.

   The Swagger API Page displays as follows:



10. Click any of the operations, such as GET, PATCH or POST, displayed on the web page.

11. After completing the operations on the page, in TIBCO Business Studio for BusinessWorks, click the Terminate icon () to stop the application.

PetDogs

• GET dog details

• PATCH dog details

PetCats

• POST cat details

GET dogs returns an output similar to the following :

{"id":10,"name":"Oreo","status":"Available","bark":false,"breed":"Husky"}

POST cats returns an output similar to the following:

{"id":110,"name":"Kitty","status":"Sold","hunts":true,"age":"12"}

The PetData.log file generated with the following information:

***********Output of Pets Data***********
GET Dog having allOf Pet--> {"id":10,"name":"Oreo","status":"Available","bark":false,"breed":"Husky"}**************************************************************
PATCH Dog having allOf Pet--> {"id":20,"name":"Jasper","status":"Sold","bark":true,"breed":"Shepherd"}**************************************************************
POST Cat having allOf Pet--> {"id":110,"name":"Kitty","status":"Sold","hunts":true,"age":12}**************************************************************

Understanding the Configuration

The project contains two processes, Pets_Service.bwp and Client.bwp.

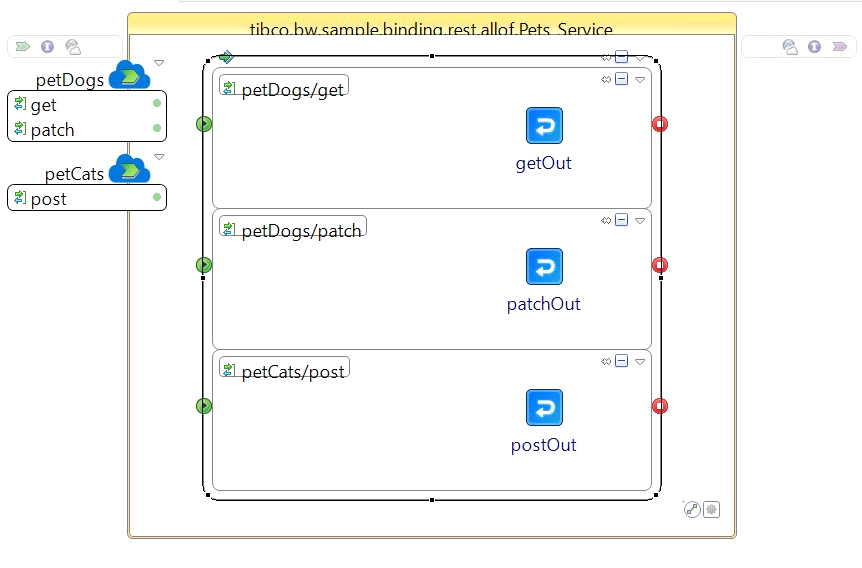

Pets_Service Process: In this process, the Pets REST service performs the post, get, and patch operations. It updates details of a dog to the petstore and retrieves the dog details from the petstore. The cat details are added using the post operation. This service is created using the Petstore_allOf.json file. The file has Dog, Cat, and Pet objects. The Dog and Cat objects use the "allOf" keyword to combine the main 'Pet' schema with 'Dog-specific' and 'Cat-specific' properties respectively.

Client Process: This is a REST Client process, which uses the REST Invoke activity to retrieve data from the REST Server.

Troubleshooting

• If you do not see the REST Swagger API page, verify whether the application has started.

• If you see any problem markers in the project, clean the project by clicking Project > Clean or try switching to a clean new workspace.
