Integrating with TIBCO Enterprise Message Service™

Before you beginMake sure that the TIBCO Enterprise Message Service™ client OSGi bundles are present in the <EMS_HOME>/components/shared/1.0/plugins folder.

Note: The plugins folder that you specify for TIBCO Enterprise Message Service™ must contain only the TIBCO Enterprise Message Service™ client OSGi bundles.

Note: In case the plugins folder contains additional library jars, copy the TIBCO Enterprise Message Service™client OSGi bundles to a temporary folder. Use this temporary folder path as input for bwinstall ems-driver.

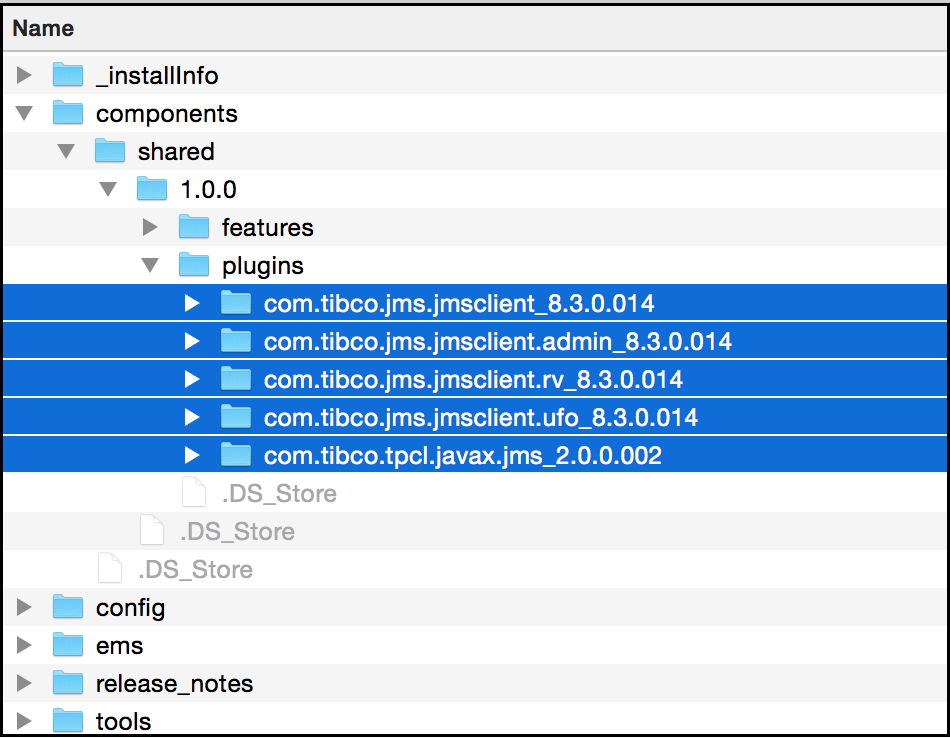

For driver jars, see the following figure.

If you do not have these client libraries, install the TIBCO Enterprise Message Service™ libraries by selecting either the Development or Client installation profiles.

Alternatively, copy the <EMS_HOME>/components folder from an existing installation to your local machine.

Installing TIBCO Enterprise Message Service™ Client Libraries

To install the TIBCO Enterprise Message Service™ client libraries for your ActiveMatrix BusinessWorks environment, run the following command from the <BW_HOME>/bin folder and follow the prompts:

bwinstall ems-driver
