TIBCO Administrator User Interface

TIBCO Administrator provides an easy-to-use web interface for configuring users and applications, deploying applications, and monitoring processes and machines in an administration domain. The figure: TIBCO Administrator User Interface shows the interface.

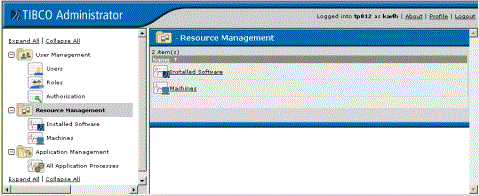

Figure 30: TIBCO Administrator User Interface

The TIBCO Administrator user interface includes the following modules:

•

User Management  Use this module to create users and roles, and assign them access rights to resources available in the administration domain.

•

Resource Management  Use this module to create application domains, get information about installed TIBCO software on each domain machine, view the status of each domain machine, and configure monitoring rules and events that can trigger other actions such as sending an email or running a command.

•

Application Management (mainly for adapter and process)  Use this module to upload the EAR (Enterprise Archive) file of an application, change its configuration options and global variables, define monitoring rules, and then deploy and start (or stop) the application.
