Adapter Subscriber

The Adapter Subscriber activity is a process starter activity. It starts a process based on the receipt of a message from Publication Service of the specified adapter.

Publication Service is configured during adapter configuration, and the activity uses the information in the adapter configuration to configure this activity.

Important: After migrating a TIBCO ActiveMatrix BusinessWorks™ 5.x project, the reference to the transport shared resource is not assigned automatically. To correct this issue, refresh the adapter service from the General tab.

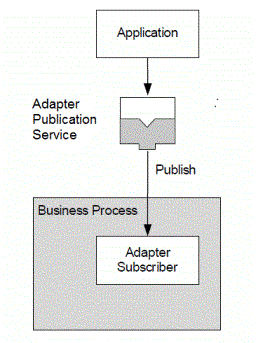

The following figure illustrates Publication Service publishing a message and Adapter Subscriber starting a business process.

General

The General tab has the following fields:

Field	Module Property?	Description
Name	No	The name displayed as the label for the activity in the process definition. The default value is AdapterSubscriber.
Adapter Service	No	The preconfigured Publication Service. Specify the adapter service when configuring the adapter. Click to locate the appropriate service for this activity.
Custom Schema	No	Select or clear the checkbox to specify whether you want to supply an output class for the activity. Cleared (default): The Output Editor tab is read-only. Selected: The Output Editor tab is editable. Note: The feature of Custom Schema in TIBCO ActiveMatrix BusinessWorks 6 is the same as CustomAESchema in TIBCO ActiveMatrix BusinessWorks 5.
Transport Configuration		Click the Transport Configuration link to configure a transport in the Advanced tab.

Description

In the Description tab, you can enter a short description for the activity.

Advanced

The Advanced tab has the following fields:

Field	Module Property?	Description
Transport Type	No	Select a transport type. See Transport Type for more information.
Sequence Key	No	This field contains an XPath expression that specifies how processes run in order. Process instances with sequencing keys that evaluate to the same value are executed sequentially in the order the process instances were created. To edit the XPath expression, click . For more information about XPath expressions and how to control the execution of process instances in order, see TIBCO ActiveMatrix BusinessWorks Application Development.
Custom Job Id	No	This field contains an XPath expression that specifies a custom ID for the process instance. This ID is also available in the $_process context process variable. To edit the XPath expression, click .

Field

Module Property?

Description

Transport Type

Select a transport type. See Transport Type for more information.

Sequence Key

This field contains an XPath expression that specifies how processes run in order. Process instances with sequencing keys that evaluate to the same value are executed sequentially in the order the process instances were created.

To edit the XPath expression, click .

For more information about XPath expressions and how to control the execution of process instances in order, see TIBCO ActiveMatrix BusinessWorks Application Development.

Custom Job Id

This field contains an XPath expression that specifies a custom ID for the process instance. This ID is also available in the $_process context process variable.

To edit the XPath expression, click .

Output Editor

The Output Editor tab defines the schema used for messages: Map, Stream, or XML Text. Map messages are name or value pairs.

You can use the schema to define the structure of the retrieved messages. The schema defined in the Output Editor tab becomes the body of the message in the Output tab.

Conversations

You can initiate the conversation. Click Add New Conversation to initiate multiple conversations.

For details about conversations, see TIBCO ActiveMatrix BusinessWorks Application Development.

Output

The following table lists the output items for this activity:

Output Item	Data Type	Description
subject	String	The subject of the message.
replySubject	String	The reply subject of the message.
certifiedSequence Number	String	This element contains the sequence number in which this message was received. It is available only when Tibrv Certified is the transport.
certifiedSender	String	This element contains the CM name of the message sender. It is available only when Tibrv Certified is the transport.
MessageID	String	The ID of the message. This element is available only when JMS Queue or JMS Topic is the transport.
trackingInfo	Complex	The AE tracking information of the sender. This element is a concatenation of "BW." + Application_Name + Module_Name + Process_Name + Activity_Name + User_Part (Business_Key).
JMSHeaders	Complex	This element contains the message header fields for the message. Only properties applicable to this type of message are displayed. It is available only when JMS Queue or JMS Topic is the transport. For more information about message header fields, see "JMS Properties" in TIBCO ActiveMatrix BusinessWorks Bindings and Palette Reference.
OtherProperties	Complex	This element contains the message properties for the message. Only properties applicable to this type of message are displayed. It is available only when JMS Queue or JMS Topic is the transport and JMS Application Properties in the Transport Type configuration are specified. For more information about message properties, see "JMS Properties" in TIBCO ActiveMatrix BusinessWorks Bindings and Palette Reference.
body	Complex	A complex schema type specified for the adapter service or a complex schema type designated by a user.

Note: To disable the default auto confirm behavior, set the disable.adsub.autoconfirm Java property to true when running the BusinessWorks application. When the Java property is enabled, the BusinessWorks process must contain the Confirm activity to confirm the message. In the Confirm activity, the Adapter Subscriber activity is always available for confirmation in all cases. If the Java property is not set to true and the Confirm activity is used, then the confirmation by the Confirm activity is ignored as the message is already confirmed.
