SmartMapper Wizard Activity - SmartMapper Calls Tab

The SmartMapper Calls tab annotates the input schema for logical locations for keys or references.

Note: The fields in this tab are available only when you have created an input schema in the Input Editor tab.

In SmartMapper Calls tab, the selected field is not required to be part of the key. The location is the path where the mapper establishes context.

The Input Participant and Output Participant fields are for participants available in the Relationships folder.

Note: All operations within a SmartMapper Wizard activity must use the same SmartMapper ER Model.

The SmartMapper Calls tab contains the following fields.

Field Data Type Description

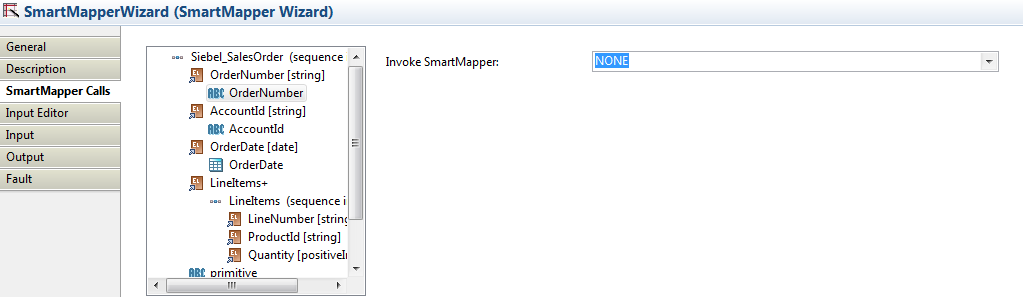

Input Schema Complex The schema tree in the left pane. It is used to browse the input schema and select the nodes where a SmartMapper operation is invoked.
Invoke SmartMapper Complex
Select from the following operations to invoke a SmartMapper operation for the selected schema.
  • Lookup Relationship (xref_lookup)
  • Lookup Entity (xref_lookup)
  • Maintain Mapping - One to One (xref_map) This operation does not apply to the association relationship.
  • Maintain Mapping - One to Many (xref_map) This operation does not apply to the association relationship.

See Invoke SmartMapper Operations for more information.

  • Invoke SmartMapper Operations
    Use the SmartMapper Wizard activity to invoke a batch of relationship lookup operations, entity lookup operations, and mapping maintenance operations.
