SmartMapper ER Model

The SmartMapper ER Model resource represents a logical data model that contains a set of applications, relationships and storage. A SmartMapper ER Model needs to be created before creating a SmartMapper process.

The SmartMapper ER Model used in this Wizard project contains two applications and four relationships. A file-based SmartMapper service is used to store the relationship data. Four entities are added in each application and each entity has its own data schema.

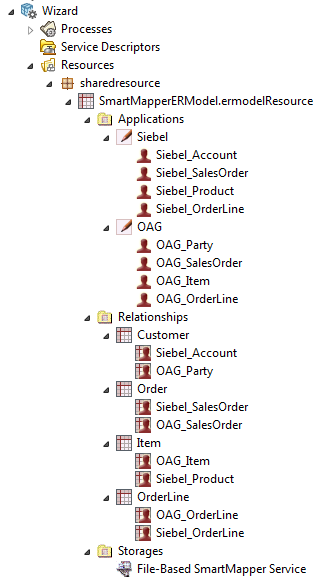

The following figure shows the complete SmartMapper ER Model:
