SmartMapper ER Model

The SmartMapper ER Model resource represents a logical data model that contains a set of applications, relationships and storage. A SmartMapper ER Model needs to be created before creating a SmartMapper process.

The SmartMapper ER Model used in this project contains one application and two relationships. A JDBC-Based SmartMapper service is used to store the relationship data. Four entities are added in the application and each entity has its own data schema.

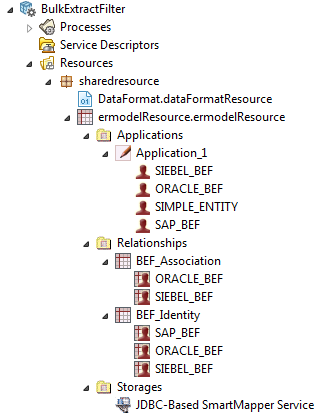

The following figure shows the complete SmartMapper ER Model:
