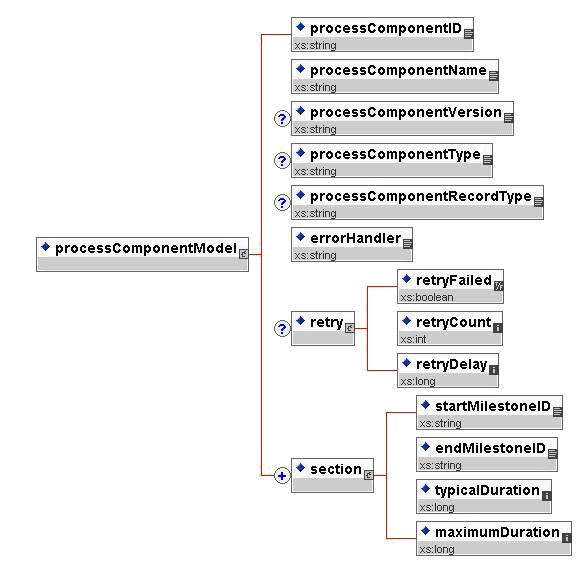

Process Component Model

Element	Type	Cardinality	Description
processComponentID	String	Required	Unique identifier for the Process Component to be executed.
processComponentName	String	Optional	Process component name for the Process Component to be executed.
processComponentVersion	String	Optional	Process component version for the Process Component to be executed.
processComponentType	String	Optional	Process component type for the Process Component to be executed.
processComponentRecordType	String	Optional	Class of processComponentType.
errorHandler	String	Optional	Error handler to use in the event of the Process Component returning an incomplete or unsuccessful execution response message.
retry	Type	Optional	Retry type.
retry/retryFailed	Boolean	Required	Flag indicating that Orchestrator should retry failed plan items.
retry/retryCount	Integer	Required	Number of times Orchestrator should retry the failed plan item before referring it to Plan Item Failed Handler for manual intervention.
retry/retryDelay	Long	Required	Delay in msec between calls to the Process Component in the event that the plan item is retried.
section	Type	1-M	Process component model section type.
section/startMilestoneID	String	Required	Unique identifier for the start milestone that describes this section.
section/endMilestoneID	String	Required	Unique identifier for the end milestone that describes this section.
section/typicalDuration	Long	Required	Typical duration for this section in msec.
section/maximumDuration	Long	Required	Maximum duration for this section in msec.
