Runtime Overview
TIBCO ActiveMatrix employs a three-level runtime environment consisting of hosts, nodes, and application fragments.

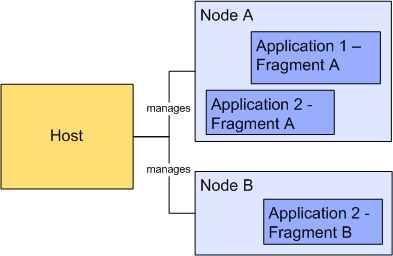

The following figure illustrates a possible configuration of hosts, nodes, and application fragments. The host manages node A and node B. Application 1- Fragment A runs on node A. Application 2's fragments are distributed over nodes A and B.

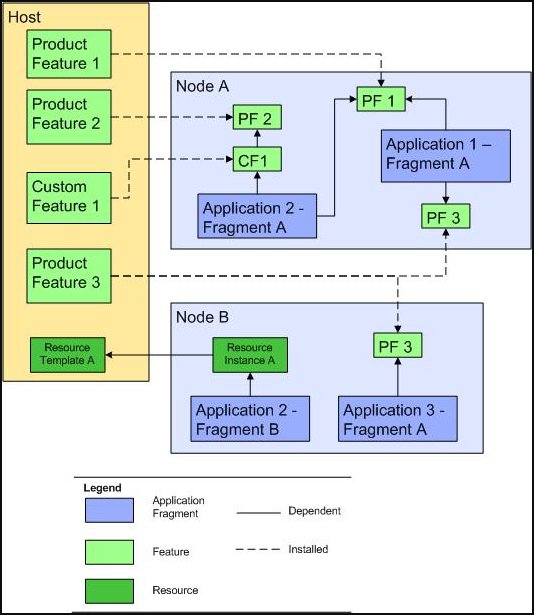

The following figure illustrates a possible configuration of hosts, nodes, features, resource instances, and application fragments. In the figure the host has three product features: PF1, PF2, and PF3, one custom feature CF1, and one resource template A. Custom feature CF1 is dependent on product feature PF2. On Node A all the available features are installed. Node B has one installed product feature and one installed resource instance. Application 1- Fragment A on node A is dependent on two product features: PF1 and PF3. Application 2- Fragment A is dependent on custom feature CF1 and product feature PF1. Application 2- Fragment B is dependent on resource instance A. Application3 - Fragment A is dependent on the product feature PF3.
