An ActiveMatrix Administrator Server (Single or Replicated)

In a production environment, TIBCO recommend that the ActiveMatrix Administrator server is hosted independently from ActiveMatrix BPM, using its own set of TIBCO Host instances.

If a high availability, fault tolerant configuration is required, the ActiveMatrix Administrator server should also be replicated.

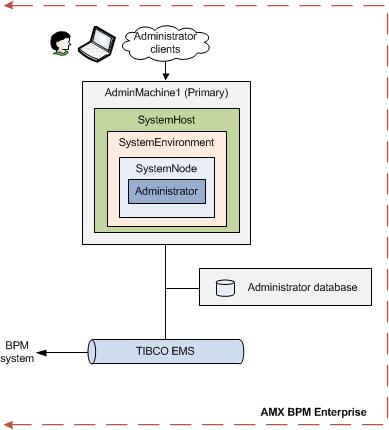

The following figure shows an example configuration for a single ActiveMatrix Administrator server.

Example configuration for a single ActiveMatrix Administrator server
Note: For details of the associated configuration for a distributed ActiveMatrix BPM system, see Example configuration for a distributed ActiveMatrix BPM system.

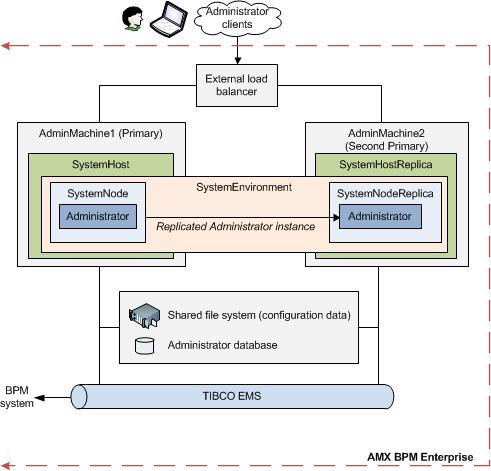

The following figure shows an example configuration for a replicated ActiveMatrix Administrator server.

Example configuration for a replicated ActiveMatrix Administrator server
Note: For details of the associated configuration for a distributed ActiveMatrix BPM system, see Example configuration for a distributed ActiveMatrix BPM system.
