complexType XmlQueryEntity

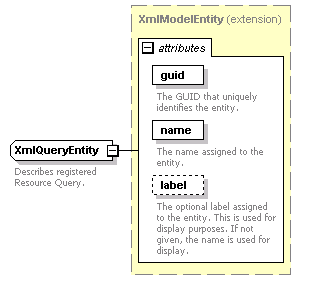

diagram
namespace	http://base.api.de.bpm.tibco.com
type	extension of XmlModelEntity
properties	base  XmlModelEntity abstract  true
attributes	Name   Type   Use   Default   Fixed   Annotation guid   xs:string   required         documentation The GUID that uniquely identifies the entity. name   xs:string   required         documentation The name assigned to the entity. label   xs:string   optional         documentation The optional label assigned to the entity. This is used for display purposes. If not given, the name is used for display.
annotation	documentation Describes registered Resource Query.
source	<xs:complexType name="XmlQueryEntity" abstract="true">   <xs:annotation>     <xs:documentation>Describes registered Resource Query.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="XmlModelEntity"/>   </xs:complexContent> </xs:complexType>
