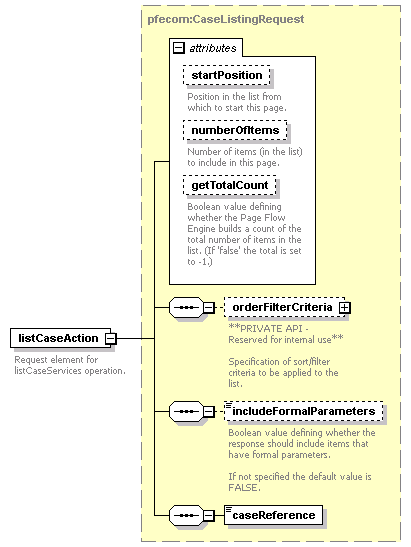

| diagram |
 |
| namespace |
http://business.api.busserv.n2.tibco.com |
| type |
CaseListingRequest |
| properties |
|
| children |
orderFilterCriteria includeFormalParameters caseReference |
| attributes |
| Name | Type | Use | Default | Fixed | Annotation | | startPosition | xs:long | | | | | documentation | | Position in the list from which to start this page. |
| | numberOfItems | xs:long | | | | | documentation | | Number of items (in the list) to include in this page. |
| | getTotalCount | xs:boolean | optional | true | | | documentation | Boolean value defining whether the Page Flow Engine builds a count of the total number of items in the list. (If 'false' the total is set to -1.)
|
|
|
| annotation |
| documentation | | Request element for listCaseServices operation. |
|
| source |
<xs:element name="listCaseAction" type="pfecom:CaseListingRequest">
<xs:annotation>
<xs:documentation>Request element for listCaseServices operation.</xs:documentation>
</xs:annotation>
</xs:element> |
