Previewing the New Default Forms

The default form for a user task can be configured to display controls based on data definitions in a class in the business object model. In this case, the controls on the form will correspond to the attributes in the class.

In this task, you will preview the forms for two of the user tasks in the Notification of claim business process.

Procedure

  1. View the default form for the Record no-fault claim user task.
    1. Right-click the user task Record no-fault claim and click Form > Preview.
    2. A preview of the form is displayed in the form viewer:
    3. Notice that there are controls on the form for each attribute of the NoFaultClaim class in the business object model.
  2. View the default form for the Record fault claim user task.
    1. Right-click the user task Record fault claim and click Form > Preview.

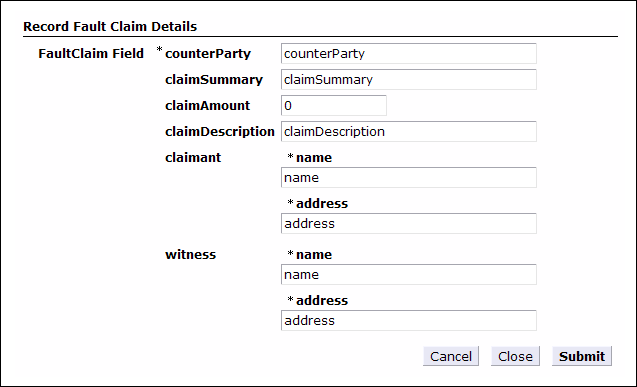

    2. A preview of the form is displayed in the form viewer:
    3. Notice that, in addition to the controls displayed on the previous form, this form also contains a text field for the Counter Party.
