Deploy the WelcomeUsers Project

To make an application available, deploy the associated project to the deployment server.

If a project has references to artifacts in other projects, such as organization models or business object models, deploy those projects at the same time.

Procedure

  1. From the Deployment Server pane, right-click XYZWorkServer1 and click Deploy Module.
    The Select Module Type window opens.
  2. Select Deploy BPM Project and click Next.
    The Select BPM Project window opens.
  3. Select WelcomeUsers and click Next.

    There is a short pause while the necessary files generate.

    The Application Configuration window opens.

  4. Click Next.
    The Property Configuration window opens.
  5. Click Finish.

    The Console pane opens.

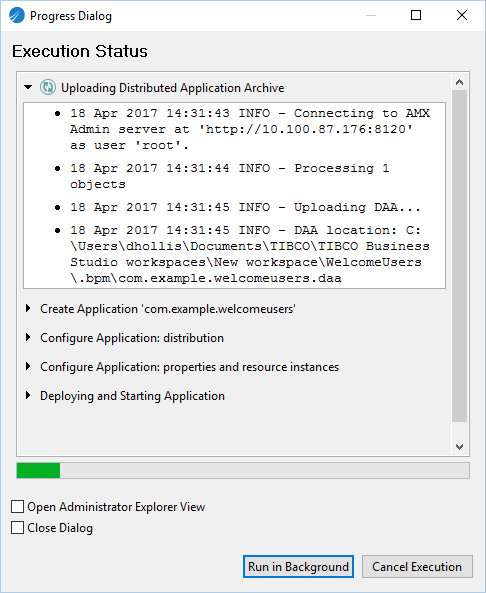

    The Execution Status window also opens.

    The Console pane and Execution Status window display progress messages.

  6. Either click Run in Background, or wait until execution is complete, and click Close.

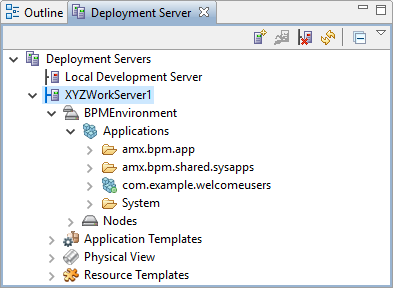

  7. From the Deployment Server pane, click Deployment Servers > XYZWorkServer1 > BPM Environment > Applications.

    Applications include com.example.welcomeusers, the WelcomeUsers project.
