Creating a Second Sub-Process

You need a second sub-process that performs the same task as the Blood Test Appointment process, but for x-ray appointments.

You could produce this in the same way as described in Creating a Sub-Process, by starting from the process interface and adding tasks. But it is simpler to copy your existing sub-process and make the necessary changes.

Procedure

  1. Select the Blood Test Appointment sub-process in Project Explorer and copy it. Paste the copy under Processes.
  2. Change its label to X-Ray Appointment.
  3. Select the Allocate Blood Test Appointment user task in the X-Ray Appointment sub-process. Change the Label to Allocate X-Ray Appointment.
  4. Click on Clear next to the Participants field. This removes the link to the Blood Test Booker participant.
  5. Create a participant called X-Ray Booker, and map it to the Radiography Secretary position.
  6. Drop the new participant on to the Allocate X-Ray Appointment user task in the X-Ray Appointment sub-process.
  7. Select the Email Hospital Department task.

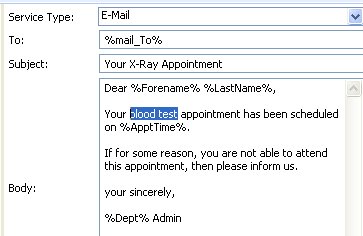

  8. In the General tab, change "Blood Test" to "X-Ray" in the subject line and in the body of the email.
