Creating a New Project

A project is the basic container that you use to store all the artifacts needed by your business processes, including the business object model.

Note: You can include the business object model in a project together with either the organization model or the business processes or both, or have them in separate projects.

The project that you will now create will be used in a subsequent tutorial (How to Use Business Data) for business processes. It does not contain an organization model.

Procedure

  1. Start Studio for Designers.
    Note: Following this tutorial will be simpler and clearer if you close any other projects that you may have open in your TIBCO Business Studio workspace, using the Project > Close Project menu option.
  2. Select File > New > BPM Developer Project.
  3. In the New BPM Developer Project dialog, enter EasyAsBusinessData as the Project name field.
  4. In the Destination Environments field, select BPM and click Next.

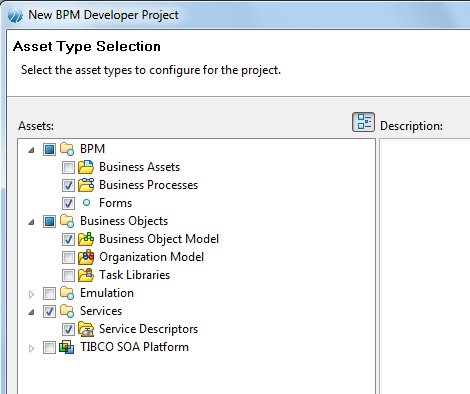

  5. In the Asset Type Selection dialog, make sure the following values are selected, and click Next.

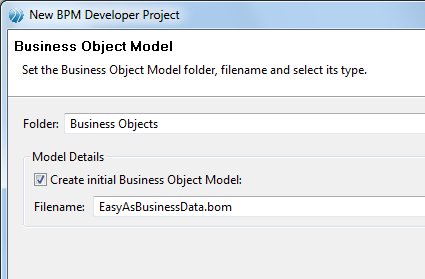

    The Business Object Model dialog is displayed.
  6. Click Finish.

    The Process Editor and Business Object Model editor are both displayed.

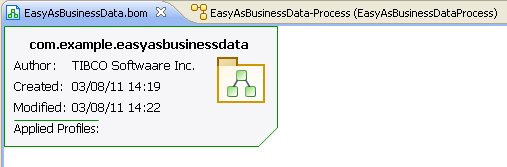

  7. Select the Business Object Model editor

Result

For more information, see "Defining a Business Object Model" in the "Tasks" chapter of TIBCO Business Studio Modeling User’s Guide.

Next topic: Creating a Package
