Typical Flow of Events

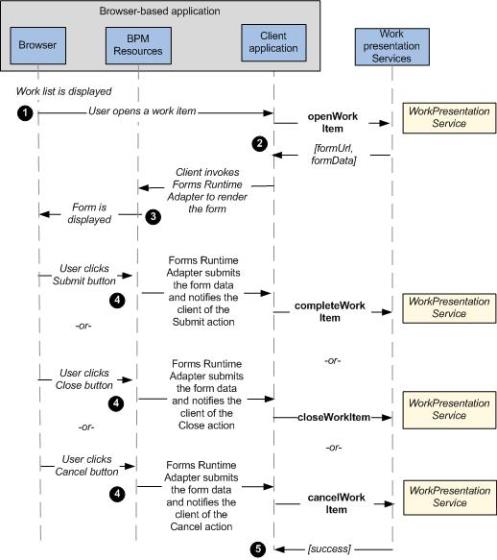

This topic describes the typical flow of events when a user opens a work item from the work list displayed in the browser of the client application.

The details of the events are as follows:

  1. To open a work item, the client application invokes the BPM WorkPresentationService via a Java service connector. The openWorkItem() operation is used to open the work item.
  2. In response to the openWorkItem() request, the formUrl and formData are returned to the client application. The client application decides the locale for rendering the form and provides the identifier of the DOM node under which the form will be rendered. The channelId is the identifier of the presentation channel to which the client application is bound, e.g. GIGWTPull_DefaultChannel or openspaceGWTPull_DefaultChannel. See Binding the Client Application to a Channelfor more information.

    The client application invokes the FormRunner.loadForm() method, which accepts the above values along with two arguments - onSuccess and onError. See com.tibco.forms.client.FormRunner for details of the FormRunner.loadForm() method.

    The following code snippet shows how the form is loaded using the FormRunner.loadForm() method.

    var formURL; // Form URL obtained from the work item.
var formData; // The initial form data obtained from the work item.
var bomJSPath; // BOM JavaScript root path obtained from the workitem.
var locale = "en_US"; // locale to use
var parentId; // Identifier of a node to which the form is added.
var submitHandler = function(actionName, form) {
    var formData = form.getSerializedParameters();
    // submit the work item
	    form.destroy();
};
var closeHandler = function(actionName, form) {
    // close the work item
	    form.destroy();
};
var cancelHandler = function(actionName, form) {
    // cancel the work item
	    form.destroy();
};
var onSuccess = function(form) {
    form.setActionHandler(com.tibco.forms.client.Form
        .ACTION_SUBMIT, submitHandler);
    form.setActionHandler(com.tibco.forms.client.Form
        .ACTION_CLOSE, closeHandler);
    form.setActionHandler(com.tibco.forms.client.Form
        .ACTION_CANCEL, cancelHandler);
};
var onError = function(e) {
    alert("An error occurred while loading the form: "+ e);
};
com.tibco.forms.client.FormRunner.loadForm(formURL, formData, bomJSPath, locale, parentId, onSuccess, onError, JSONP);
    Note: Avoid using the com.tibco.forms.client.FormRunner.loadForm() method on the page onLoad event, as the com.tibco.forms.client.FormRunner class might not be fully loaded and the API methods being used might not be available. To avoid these errors, the client application can define the onTIBCOFormRunnerLoad function on the page and can be notified about the availability of com.tibco.forms.client.FormRunner. See Injecting the Forms Runtime Adapter in the Browser for further details.
  3. The form is displayed in the browser. The FormRunner.loadForm() method is asynchronous, so any post-processing that is done on the loaded form object happens within the onSuccess callback handler. In the above code snippet, three action handlers are set that take care of the submit, close, and cancel operations that are provided on most forms.
  4. When the form is submitted, the submitHandler handles the submit action. In response to form submission, form.getSerializedParameters() method retrieves the formData. See com.tibco.forms.client.Form for details of the form.getSerializedParameters() method. This method returns a JSON (JavaScript Object Notation) serialization of the data within the form.
  5. After successful submission of the form, the client application invokes completeWorkItem() to pass the form data back to the BPM WorkPresentationService. This operation is used to update the work item.
