Client Service Provider Interface

The client service provider interface is used by the OAuth server to authenticate a client when the client is requesting the access token during the authorization code or client credential flow. It enables the OAuth server to authenticate the client and obtain attributes of the client.

Client Service Provider Interface (SPI) Flow

The following figure illustrates the flow for client service provider interface.

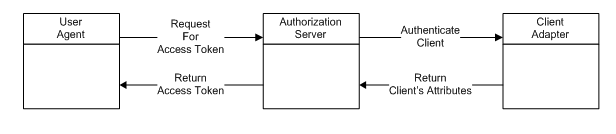

Figure 30 Client SPI Flow



Client Service Provider Interface (SPI) Java API

The following is the Java API of the client service provider interface:

---



/**

* ClientAdapter is the interface use by OpenID Provider to authenticate client.

* It is also for OpenID Provider to retrieve the clients scopes.

* <p/>

* A ClientAdapter is implemented by Portal Service who manages the client registration.

*

*/

public interface ClientAdapter {

/**

* This method is called when the instance of the adapter is first loaded.

* The properties is a map of properties from SecurityRuntime.cfg.

* The adapter may initialize itself using these properties.

*

* @param properties a map of properties from SecurityRuntime.cfg.

*/

public void init(Map<String, String> properties);

/**

* Authenticate the client with the specify id and secret.

*

* @param clientId client id to authenticate.

* @param secret secret to authenticate.

* @return a DirectoryResult that has the result of the authentication.

*/

public ClientResult authenticateClient(String clientId, String secret);

/**

* Retrieve scopes for the specify client.

*

* @param clientId the clientId to retrieve the scope.

* @return return a map that contains information of the scopes.

* scope -> array of scopes

* description -> array of descriptions

* @throws AdapterException an exception if failed to retrieve the scopes of the client.

*/

public Map<String, String> getClientAttributes(String clientId)

throws AdapterException;

}

---



getAttributes

The required attributes for getAttributes are as follows:

Table 142 Required Attributes For getAttributes

Attribute	Description
dn	Specifies the distinguish name for the client.
oidcClientID	Specifies the unique ID for the client.
oidcClientRedirectURI	Specifies the redirect or callback URL.
scopes	Specifies a list of comma separated scopes.

Sample attributes:

The following table shows the sample attributes:

Attribute	Sample Value
oidcClientID	playground
dn	oidcClientIDplayground
ou	client
dc	tibco
scopes	public playground
oidcClientRedirectURI	https://redirectHost/site/client/redirectEndpoint
oidcAppName	Playground
oidcAppLogoURL	https://redirectHost/site/client/logo
oidcClientEmail	playground.asg@tibco.com
