Scope Service Provider Interface

The scope service provider interface is used by the OAuth authorization server for the following actions:

•	Retrieve the description of the scopes.

•	Retrieve the scopes for a specified owner and resource to access.

Scope Service Provider Interface (SPI) Flow

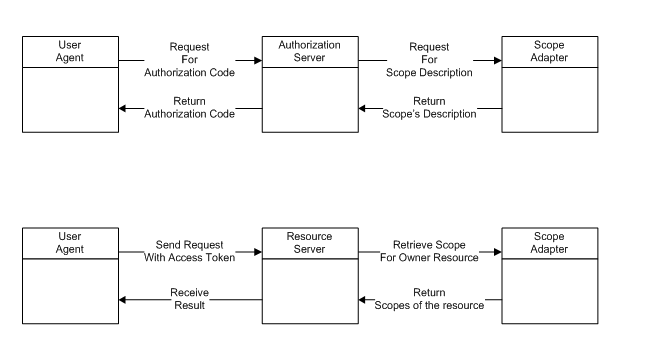

The following figure Scope SPI Flow illustrates the flow for scope service provider interface.

Figure 31 Scope SPI Flow



Scope Service Provider Interface (SPI) Java API

The following is the Java API of the scope (token) service provider interface:

---



/**

* ScopeAdapter is the interface use by OpenID Provider to retrieve client's

* scope and scope for a specific resource for a user.

*

*/

public interface ScopeAdapter

{

/**

* This method is called when the instance of the adapter is first loaded.

* The properties is a map of properties from SecurityRuntime.cfg.

* The adapter may initialize itself using these properties.

*

* @param properties a map of properties from SecurityRuntime.cfg.

*/

public void init(Map<String, String> properties);



/**

* Returns descriptions for specified scopes

*

* @param scopes the scopes to retrieve the descriptons for.

* @return the descriptions for specified scopes

* @throws AdapterException an exception if failed to retrieve the scopes' descriptions.

*/

public String[] getDescriptions(String[] scopes)

throws AdapterException;



/**

* Retrieve scopes for the resource a specified owner.

*

* @param owner the owner to resource.

* @param resource the resource for the scope to retrieve.

* @param resourceAttributes attributes of the resources

* @return scopes for the resource a specified owner.

* @throws AdapterException an exception if failed to retrieve the scopes of

* the resource.

*/

public String[] getResourceScopes(String owner, String resource, Map<String, String> resourceAttributes)

throws AdapterException;



}

---
