Target Operation Group Configuration

This section explains the configuration setup for a target operation group to select a routing algorithm. The routing algorithm determines the target operation within the target operation group to process the facade request received by this target operation group.

Configure a Target Operation Group

To configure a target operation group, follow these steps:

1.	Ensure that you are on the Routing tab of the Config UI. See Click the ROUTING Tab.

2.	Click the Target Operation Groups tab on the top menu.

3.	Enter the value for the following fields:

Table 77 Target Operation Group Configuration

Parameter	Description
Group Name	• Specifies the name of the target operation group. This can be any name defined by a user. • This is a Required field.
Description	A short user description of the target operation group.
Type	Specifies the type of target operation group. See Routing Algorithms for Target Operation Group for details. Select one of the possible values from the drop-down list: • LoadBalanced • RoundRobin. See Configure a RoundRobin Target Operation Group. • WeightedRoundRobin • RoundRobinWithFailover • WeightedRoundRobinWithFailover • StickyResourceAffinity.
Target Operations	Specifies the list of target operations in the group. Add multiple target operations using the + icon to a target operations group. The target operations must be configured under the Target Operations tab.

4.	Save the changes to the configuration.

If you configure a target operation group of the type RoundRobinWithFailover or WeightedRoundRobinWithFailover, you must define the HealthCheck configuration for each target operation in the group. See HealthCheck Configuration for Target Operation for configuration details.

Configure a RoundRobin Target Operation Group

To configure a target operation group of RoundRobin type, select the type of target operation group as RoundRobin. Follow these steps:

1.	Click the Target Operation Groups tab.

2.	Enter the value for the following fields:

Table 78 RoundRobin Target Operation Group Configuration

Parameter	Description
Group Name	• Specifies the name of the target operation group. This can be any name defined by a user. • This is a Required field.
Description	A short user description of the target operation group.
Type	Select RoundRobin from the drop-down list. See RoundRobin Target Operation Group Configuration.
Target Operations	Specifies the list of target operations in the group. Add multiple target operations using the + icon to a target operations group. The target operations must be configured under the Target Operations group.

3.	Save the changes to the configuration.

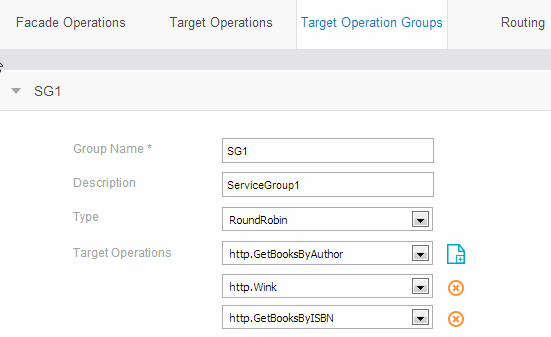

4.	Figure RoundRobin Target Operation Group Configuration shows the RoundRobin Target Operation Group configuration.

Figure 13 RoundRobin Target Operation Group Configuration

Configure a WeightedRoundRobin Target Operation Group

To configure a target operation group of WeightedRoundRobin type, select the type of the target operation group as WeightedRoundRobin. Follow these steps:

1.	Click the Target Operation Groups tab.

2.	Enter the value for the following fields:

Table 79 WeightedRoundRobin Target Operation Group Configuration

Parameter	Description
Group Name	• Specifies the name of the target operation group. This can be any name defined by a user. • This is a Required field.
Description	A short user description of the target operation group.
Type	Select WeightedRoundRobin from the drop-down list. See WeightedRoundRobin Target Operation Group Configuration.
Target Operations	Specifies the list of target operations in the group. Add multiple target operations using the + icon to a target operations group. The target operations must be configured under the Target Operations group.

3.	Save the changes to the configuration.

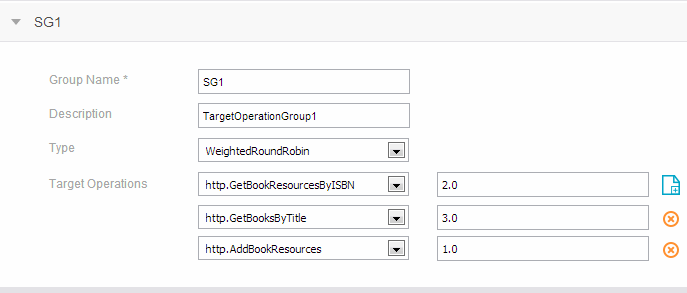

4.	Figure WeightedRoundRobin Target Operation Group Configuration shows the RoundRobin Target Operation Group configuration.

Figure 14 WeightedRoundRobin Target Operation Group Configuration

Configure a RoundRobinWithFailOver Target Operation Group

To configure a target operation group of RoundRobinWithFailover type, select the type of the target operation group as RoundRobinWithFailover. Follow these steps:

1.	Click the Target Operation Groups tab.

2.	Enter the value for the following fields:

Table 80 RoundRobinWithFailOver Target Operation Group Configuration

Parameter	Description
Group Name	• Specifies the name of the target operation group. This can be any name defined by a user. • This is a Required field.
Description	A short user description of the target operation group.
Type	Select RoundRobinWithFailover from the drop-down list. See RoundRobinWithFailOver Target Operation Group.
Target Operations	Specifies the list of target operations in the group. Add muliple target operations using the + icon to a target operations group. The target operations must be configured under the Target Operations group.

3.	Save the changes to the configuration.

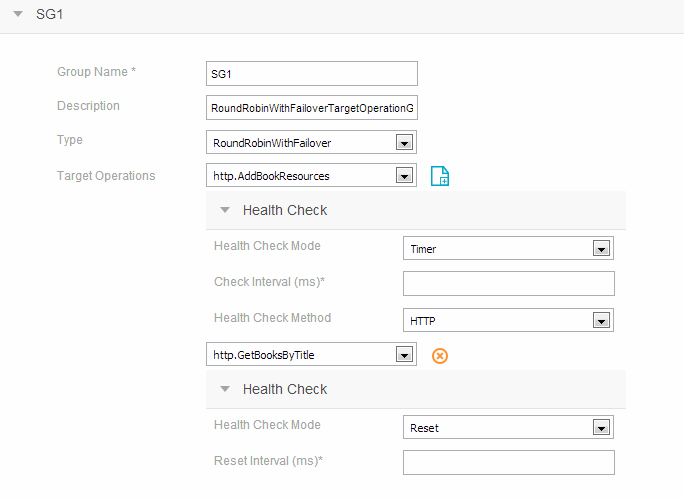

4.	Figure RoundRobinWithFailOver Target Operation Group shows the RoundRobinWithFailover Target Operation Group configuration:

Figure 15 RoundRobinWithFailOver Target Operation Group

Configure a WeightedRoundRobinWithFailOver Target Operation Group

To configure a target operation group of WeightedRoundRobinWithFailover type, select the type of the target operation group as WeightedRoundRobinWithFailover. Follow these steps:

1.	Click the Target Operation Groups tab.

2.	Enter the value for the following fields:

Table 81 WeightedRoundRobinWithFailOver Target Operation Group Configuration

Parameter	Description
Group Name	• Specifies the name of the target operation group. This can be any name defined by a user. • This is a Required field.
Description	A short user description of the target operation group.
Type	Select WeightedRoundRobinWithFailover from the drop-down list. See WeightedRoundRobinWithFailOver Target Operation Group.
Target Operations	Specifies the list of target operations in the group. Add muliple target operations using the + icon to a target operations group. The target operations must be configured under the Target Operations group.

3.	Save the changes to the configuration.

4.	Figure WeightedRoundRobinWithFailOver Target Operation Group shows the RoundRobinWithFailover Target Operation Group configuration:

Figure 16 WeightedRoundRobinWithFailOver Target Operation Group

StickyResourceAffinity Target Operation Group Configuration

This section explains the steps required to configure the target operation group of StickyResourceAffinity type:



Task A Define Sticky Routing Key

The sticky routing key can be defined based on many parameters such as the IP address, machine domain name, and so on. The StickyKey is populated from the <stickyRoutingKey> element tag in the transformation (XSLT) file.

Refer to Example XSLT File for StickyRoutingKey to define an XSLT file for the sticky routing key.

Example XSLT File for StickyRoutingKey

The following example illustrates an XSLT file to derive a StickyRouting Key. Refer to the <stickyRoutingKey> element tag in the file defined as follows:

---



<?xml version="1.0" encoding="ISO-8859-1"?>

<xsl:stylesheet

version="2.0"

xmlns:xsl="http://www.w3.org/1999/XSL/Transform"

xmlns:c="http://www.tibco.com/schemas/asg/context"

xmlns:h="http://www.tibco.com/asg/protocols/http"

xmlns:f="http://www.tibco.com/asg/functions/form"

xmlns:form="http://www.tibco.com/asg/content-types/form"

xmlns:book="http://www.example.com/xsd/books"

xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"

xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">



<xsl:output

omit-xml-declaration="yes"

indent="yes"

/>



<xsl:variable name="contextHref">

<xsl:value-of select="/transformation/context/@href"/>

</xsl:variable>



<xsl:variable name="httpRequest">

<xsl:copy-of select="document($contextHref)/c:context/c:entry[@key='asg:httpRequest']/h:request/*"/>

</xsl:variable>



<xsl:variable name="parsedQueryString">

<xsl:value-of select="$httpRequest/h:client-ip"/>

</xsl:variable>



<xsl:variable name="nbRequestHref">

<xsl:value-of select="/transformation/nbRequest/@href"/>

</xsl:variable>

<xsl:variable name="nbRequest">

<xsl:copy-of select="document($nbRequestHref)/soapenv:Envelope/soapenv:Body/*"/>

</xsl:variable>



<xsl:template match="/">

<output>

<xsl:variable name="username">

<xsl:value-of select="$nbRequest/book:Author"/>

</xsl:variable>

<username><xsl:value-of select="$username"/></username>

<parsedQueryString><xsl:value-of select="$parsedQueryString"/></parsedQueryString>

<routingKey>

<xsl:choose>

<xsl:when test="$username = 'Vivek Ranadive'"><xsl:value-of select="$username"/></xsl:when>

<xsl:when test="$username = 'Vivek Ranadive1'"><xsl:value-of select="$username"/></xsl:when>

<xsl:when test="$username = 'Vivek Ranadive3'"><xsl:value-of select="$username"/></xsl:when>

<xsl:otherwise>default</xsl:otherwise>

</xsl:choose>

</routingKey>

<stickyRoutingKey>

<xsl:choose>

<xsl:when test="$parsedQueryString != ''"><xsl:value-of select="$parsedQueryString"/></xsl:when>

<xsl:otherwise>default</xsl:otherwise>

</xsl:choose>

</stickyRoutingKey>



</output>

</xsl:template>



</xsl:stylesheet>

---



Task B Upload Sticky Routing Key File

To upload the XSLT file containing the <stickyRoutingKey> element, follow these steps:

1.	Start the Config UI, if not running.

2.	Log in to the Config UI using your credentials.

3.	Add a new project or select an existing project under Projects.

4.	Click the ROUTING tab on the right-hand side.

5.	Click the Facade Operations tab on the top menu.

6.	Add a new operation or select an existing operation.

7.	Upload the XSLT file as follows:

a.	Click Choose File button in the New ProcessBody Transform field to select the XSLT transformation file containing stickyRoutingKey tag.

b.	Click Open on the new dialog to upload the file.

c.	If the XSLT file is located in the ASG_CONFIG_HOME/ASGConfigName/xslt/operations directory, choose the XSLT file in the ProcessBody Transform field.

8.	Save the changes to the configuration.

Task C Configure StickyResourceAffinity Type Target Operation Group

To configure a target operation group of StickyResourceAffinity type, select the type of the target operation group as StickyResourceAffinity. Follow these steps:

1.	Click the Target Operation Groups tab.

2.	Enter the value for the following fields:

Table 82 StickyResourceAffinity Target Operation Group Configuration

Parameter	Description
Group Name	• Specifies the name of the target operation group. • This is a Required field.
Description	A short user description of the target operation group.
Type	Select StickyResourceAffinity from the drop-down list. See StickyResourceAffinity Target Operation Group Configuration for details.
Target Operations	Specifies the list of target operations in the group. Add muliple target operations using the + icon to a target operations group. The target operations must be configured under the Target Operations group.

3.	Save the changes to the configuration.

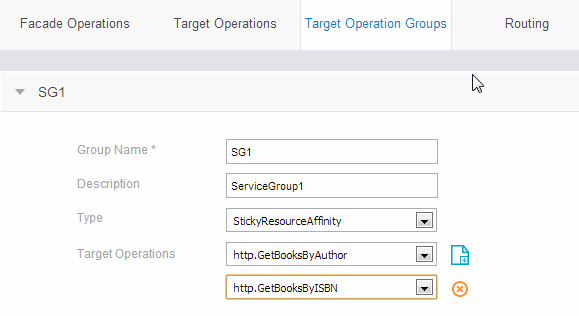

The following figure shows the StickyResourceAffinity Target Operation Group configuration:

Figure 17 StickyResourceAffinity Target Operation Group Configuration
