Dynamic Organization Units
Dynamic Organization Units are created within Organizations to reference an organization pattern (Dynamic Organization). For example, they could be used where you want to refer to a number of branches with the same structure, without creating each individually within the Organization using the Organization Modeler.

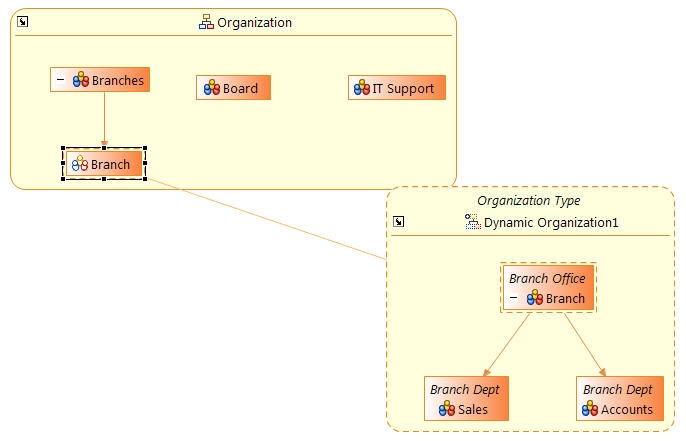

In the example below, the dynamic organization unit Branch has a reference to the Dynamic Organization called Dynamic Organization1. Dynamic Organization1 consists of a hierarchy of organization units which make up a branch structure.
Note: The entity
Branch never gets deployed to BPM, and no entity of that name is generated in the organization model. This is only a visual marker that
TIBCO Business Studio - BPM Edition uses to represent the reference to the Dynamic Organization.
