Defining Custom Activities

(Short description required.)

Use the WSDL editor supplied with the MDM Process Designer to add custom activities.

Procedure

  1. Open the CIMServices.wsdl in design mode by right clicking CIMServices.wsdl- > Open With- > WSDL Editor.

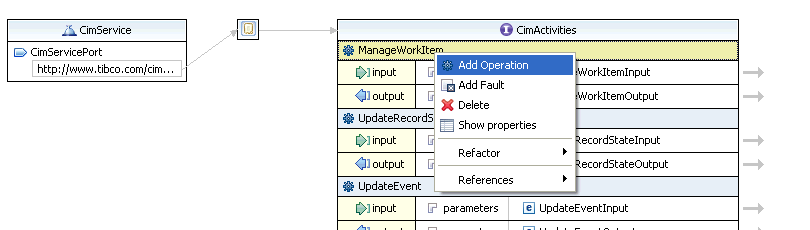

  2. The list of MDM activities is displayed - right click any activity and select Add Operation.
  3. The new activity (called NewOperation by default) gets added at the bottom; you can rename the activity, for example CustomActivity as below.
  4. Click the arrow to the right of input in the newly added custom activity.
  5. The inline schema will be displayed.

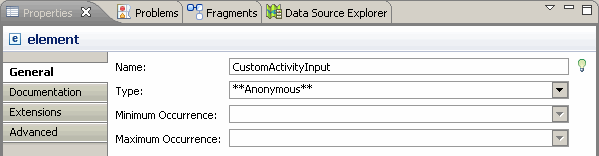

  6. In the Properties window, General tab, change the Name to <ActivityName>Input. For example, CustomActivityInput.

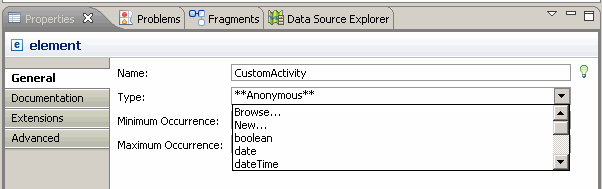

  7. Next, select New... from the Type dropdown.
  8. In the New Type dialog displayed, provide <ActivityName>InputType as Name. For example, CustomActivityInputType. Click OK.
  9. Follow the same steps to set the custom activity output type by clicking the arrow to the right of output, and using <CustomActivity>Output as name and <CustomActivity>OutputType as type.
  10. You can now add input and output parameters to the custom activity.
For more information on adding parameters, see Adding and Modifying Custom Parameters.
  11. Once you save the wsdl, the newly defined activities will be displayed in the list of activities in CimActivities under Service Descriptors.
