Adding Parameter for eval mode=Variable

(Short description required.)

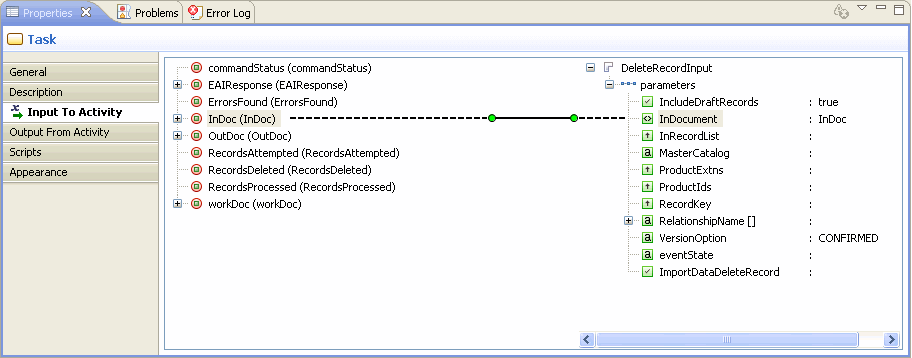

A Data Field variable can be mapped to data types such as StringType, BoolType, LongType, and so on. For example, the screenshot below shows an Document type data field mapped to the variable type InDocument parameter of the DeleteRecordInput activity.

Procedure

  1. Select the activity (that you want to define parameters for) in the process flow.
  2. In the Properties Window, go to the Input to Activity tab.
  3. Expand the <activityname input parameters on the right.
  4. Select the parameter that you want to provide a value to and drag it onto DataField (Workflow state variable) on the left.

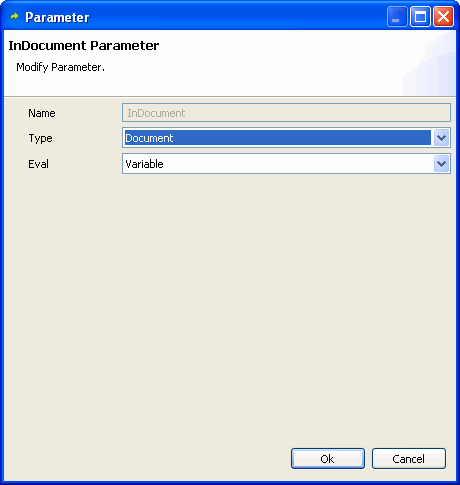

  5. Double-click on parameter to view or change the parameter default type.
  6. Click OK.
