Constraint Properties

Click an added constraint to see its properties in the Properties Pane.

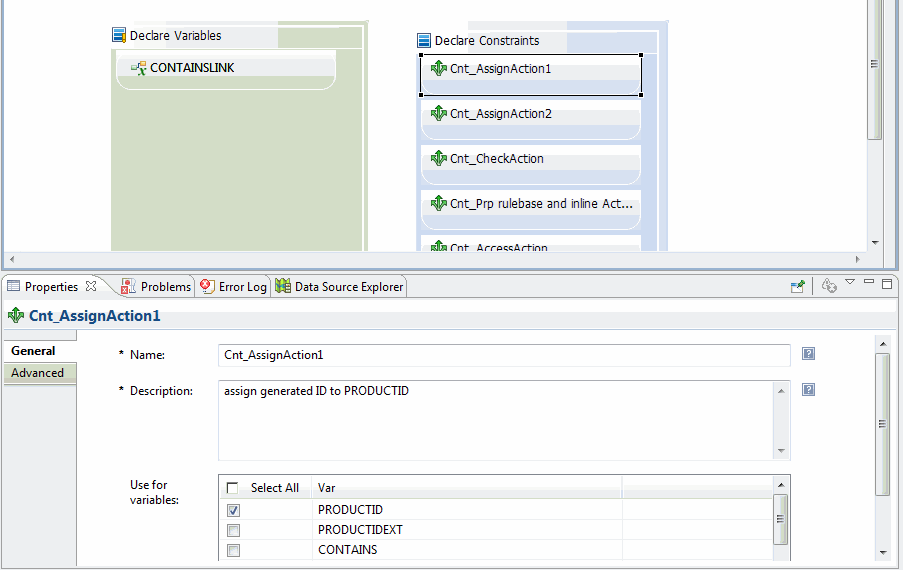

The following properties are displayed for constraints in the Properties Pane, General tab:

Name: Any logical name to identify the constraint.
Description: A short text description of the constraint.
Use for Variables: This specifies which attribute(s) the rule applies to.

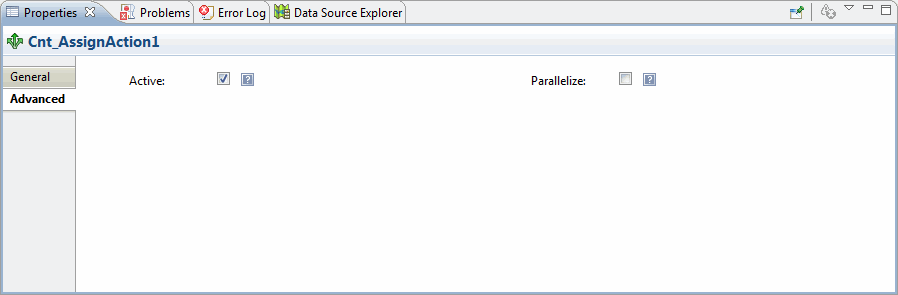

The following properties are displayed for constraints in the Properties Pane, Advanced tab:

Active: Indicates the active constraint to be evaluated during rulebase execution. To disable the contraint, uncheck the active flag.
Parallelize: Indicates that this constraint does not depend on order of execution and can be executed in parallel with other constraints in rulebase.

Double click a constraint in the main rulebase diagram to open up the Constraint diagram which lists Conditions and Actions. For details see, aExpressions and Access Action.
