Exporting a Repository Model

(Short description required)

The Export Wizard is used to export the graphically designed repository model to MDM in .xml file format.

Procedure

Select the Project in the Project Explorer and click File- > Export or right click the project and select Export.

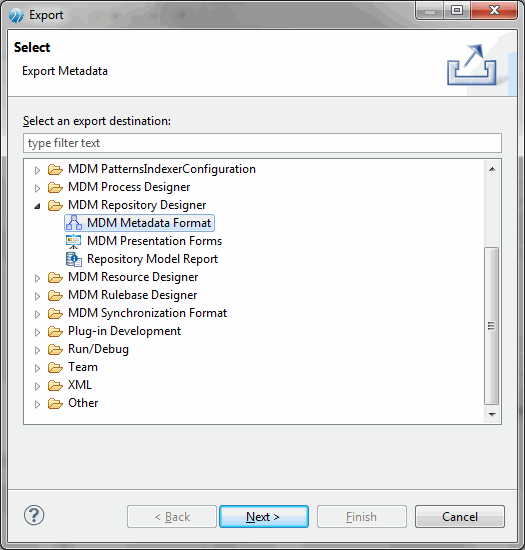

Select MDM Metadata Format under MDM Repository Designer. Click Next.

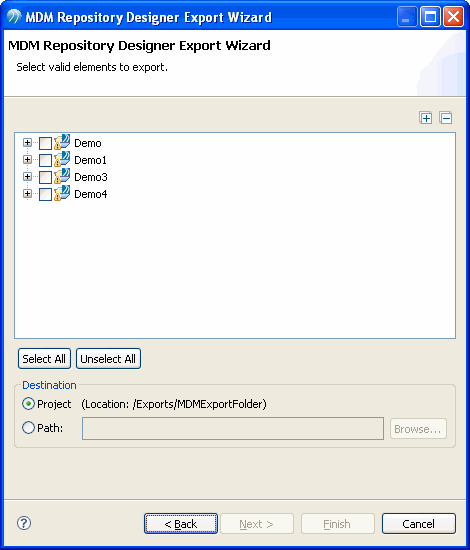

Select the <repositorymodelName>.rep file for export by selecting the checkbox. The default location to which the file will get exported is displayed in the Destination section under Project (/Exports/MDMExportFolder). You can change the path if required. Click Finish.

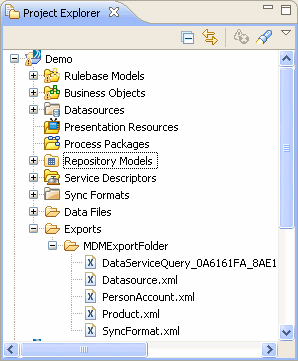

If you chose to export to the Project itself, in the Project Explorer, you will now see a new folder Exports/MDMExportsFolder created which contains the XML file that was generated.

You can now import your Repository model into MDM.
