Setting up MDM Process Designer to use the Subversion Repository

(Short description required.)

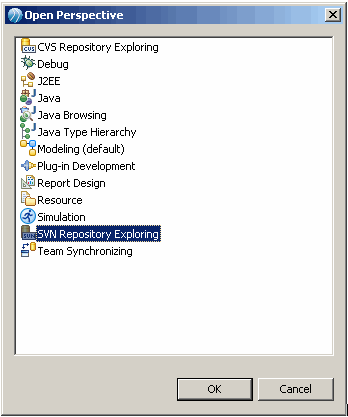

1. Start the MDM Process Designer. In the menu bar, select Window- > Open Perspective - > Other. In the Open Perspective dialog box that is displayed, select SVN Repository Exploring.

2. In the SVN Repository view displayed (initially empty) right click and select New - > Repository Location.

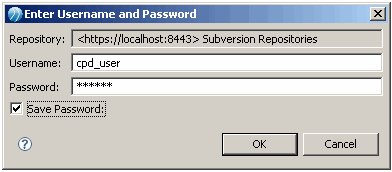

3. Enter the http base address, the username, and password for your SVN server in the dialog that is displayed. Select the Save Password checkbox. Click OK.

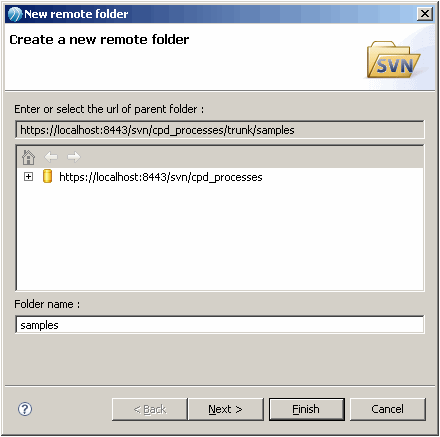

4. In the tree that is displayed, open the repository location and navigate to trunk. Right click it and select New - > New Remote Folder. Name this folder appropriately (here we use the name 'samples') and optionally add a commit comment. This is the folder you will share your process projects in.
