Adding Parameter for eval mode=XPath
(Short description required.)
Procedure
-
Select the activity (that you want to define parameters for) in the process flow.
-
In the Properties Window, go to the Input to Activity tab.
-
Expand the <activityname input parameters on the right.
-

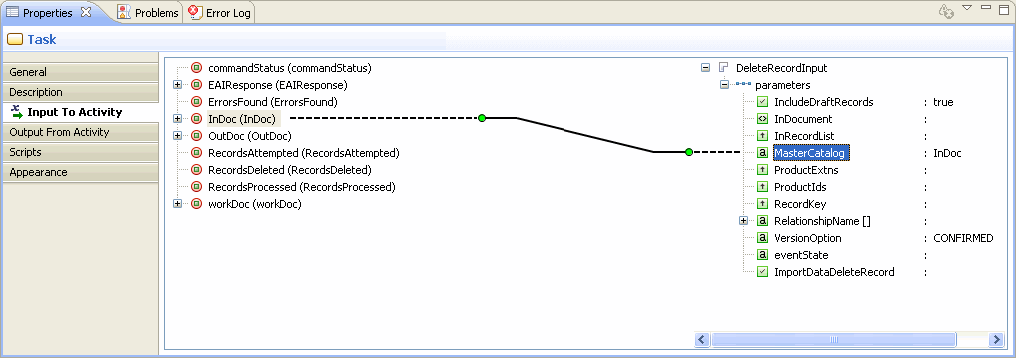

Select the parameter that you want to provide a value to and drag it onto DataField (mlXMLDocument type) on the left.
-

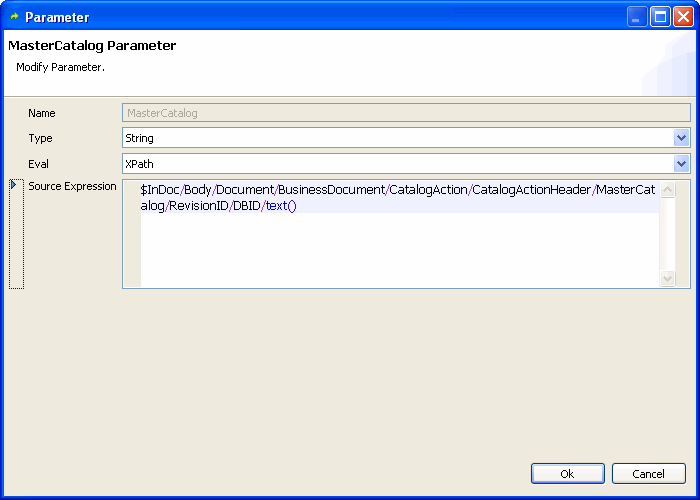

Double-click on the parameter and select XPath from the Eval drop-down list. Use the Source Expression to write the xpath expression.
-

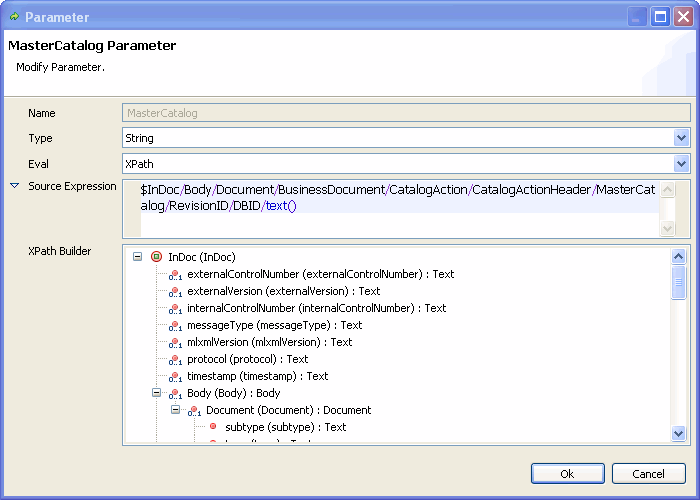

Use the XPath Builder to write the XPath expression.
-
Click OK.
Result
Note: Use the ’$' character followed by the variable name (mapped data field) to access the mlXmlDocument.
