Adding Rulebase to a Folder

To add a new rulebase to a particular folder.

Procedure

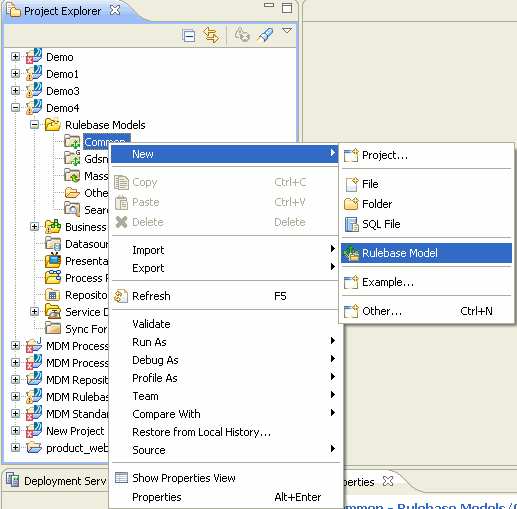

  1. Select the folder in which you want to add the rulebase. Right-click on the folder, for example, Common, and select New and click Rulebase Model.

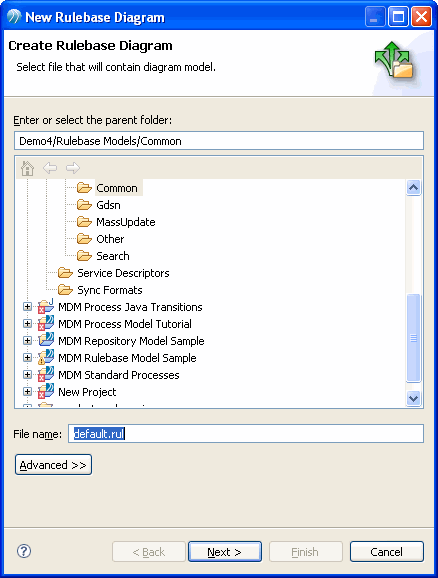

  2. The Create Rulebase Diagram dialog is displayed.
  3. Enter appropriate rulebase base name in File name field.
  4. Click Next. The Rulebase Type selection dialog is displayed.
  5. Select the Rulebase Type from the drop-down list. Click Next.

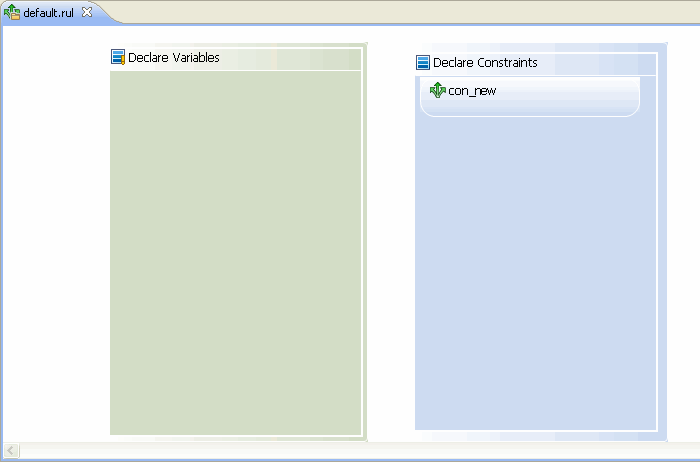

  6. The Rulebase diagram for the newly created rulebase is displayed.
