Creating a New Embedded Subprocess

You can create a new embedded subprocess by refactoring existing objects into an embedded subprocess.

Procedure

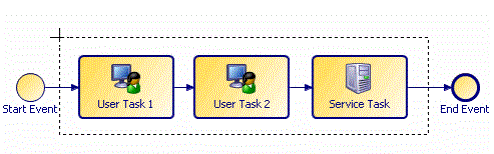

1. Select the objects that you want to put in the embedded subprocess. For example:



2. Right-click and select Refactor > Move into New Embedded Sub-Process.
3. Complete the dialog as follows:
   1. Enter a name for the embedded subprocess that you want to create.
   2. Select the New Sub-Process is a transaction checkbox if you want the new subprocess to become a transaction and therefore be under transaction control. For more information, see User Tasks and Pageflow Processes.
   3. Select the Insert start event in new sub-process and Insert end event in new sub-process checkboxes to control whether start and end events are added to the refactored subprocess.

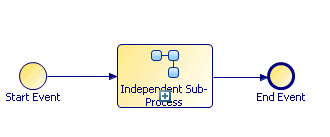

4. Click Finish. The objects that you selected are placed within a new embedded subprocess (with start and end events if those options were selected):
