Tools for Finding Objects in a Diagram

TIBCO Business Studio provides different tools to find objects in a diagram.

• To find an object on a process, press Ctrl+F or click the icon on the toolbar. In the resulting dialog box enter the name or partial name of the object you are looking for. For example:



  In this example the only task that starts with "c" is a script task called coreLogic. Clicking on the task displays it in the Process Editor.

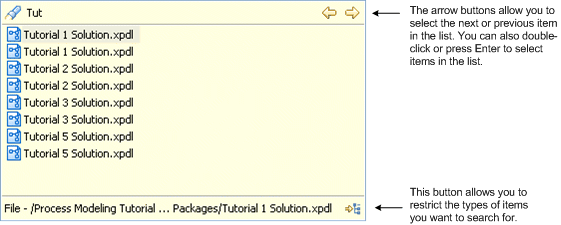

• You can find workspace elements such as processes, package names, and process interfaces by pressing Ctrl+F or the search toolbar button in the Project Explorer view. For example:



• You can also find a business object model package, class, primitive types and enumerations, as well as organization models, by pressing Ctrl+F or the Find toolbar button in the Project Explorer view.
• You can also find items using the first characters from the start of each capitalized word (CamelCase searching). For example, "BP" returns a file called BankPayment.wsdl.

The wildcard ? returns all elements. Use the * wildcard to restrict the results (for example, *2 to return all matches ending in 2). Note that the wildcard * by itself does not return any results; it only works in conjunction with a string.
