Creating Error Events

Error events are created in the Project Explorer.

Procedure
1. Create a process interface.
2. In the Project Explorer, under the process interface, expand an event. For example:

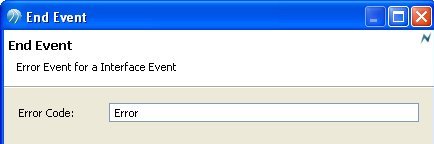

3. Right-click Errors and then, select New > Error. The following dialog box is displayed:

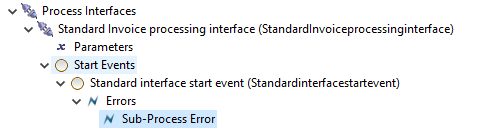

4. Enter a name for the error code and click Finish. The error code you created is displayed in the Project Explorer, and in the Process Interface Editor:



   Continue with Error Codes and Process Interfaces to see how these error codes are used in processes created from a process interface with error codes.
