Enable Auditing of Process Data

To be able to audit process data (that is, view process data in the Event Viewer), you must enable it in the ec-probe-rules.xml file on the server.

The work item attributes are not included in audit data (that is, in the Event Viewer) by default for performance reasons.
    Procedure
  1. Open the ec-probe-rules.xml file.
    This file is located in the following directory on the machine on which BPM is installed:

    CONFIG_HOME/bpm/bpm_app_name/configuration

    where:

    • CONFIG_HOME is the root directory for ActiveMatrix BPM runtime files. This can be specified during installation.

      On Windows systems, this defaults to:

      C:\ProgramData\amx-bpm\tibco\data

      On UNIX systems, this defaults to:

      /opt/tibco/data

    • bpm_app_name is the name of the ActiveMatrix BPM application, which can be specified during installation.

      This defaults to:

      amx.bpm.app

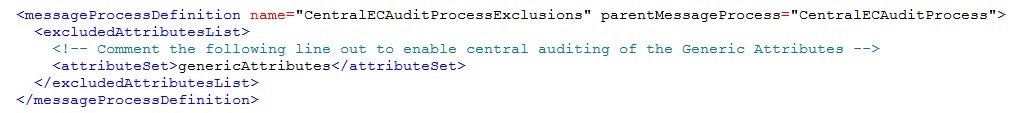

  2. Locate genericAttributes:

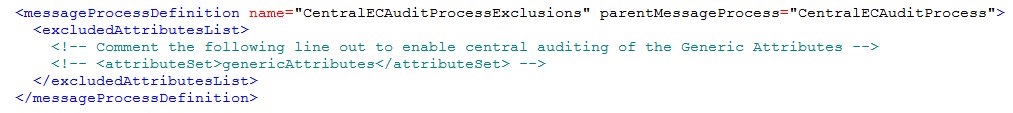

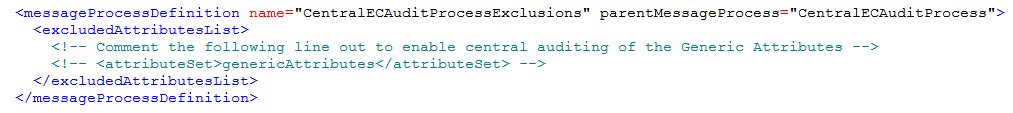

  3. Comment out the line that contains genericAttributes:
    It should now appear as follows:

  4. Save and close the ec-probe-rules.xml file.
What to do next

Map process data fields to the desired work item attributes - see Mapping Process Data to be Audited.
