Using a Schema in an Organization Model

This is an overview of the steps required to create the example shown as a Schema and then use it in an Organization Model.

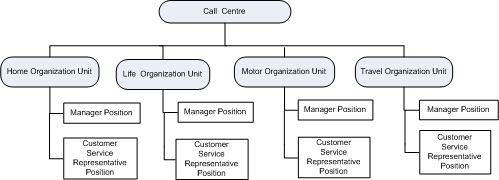

An example of an organization unit that you might want to model as a Schema is shown below.

    Procedure
  1. Create a project. On the Organization Model dialog box of the New Project wizard, deselect the Create default schema types field.

    The Schema for this project therefore contains only those types that you define.

  2. Create the following types in the Organization Schema:
    An Organization Type called Call Center. See Creating an Organization Type.
    Organization Unit Types called Home, Life, Travel and Motor. See Creating an Organization Unit Type.
    A Position Type called Manager. See Creating a Position Type.
    A Position Type called Customer Services Representative. See Creating a Position Type.

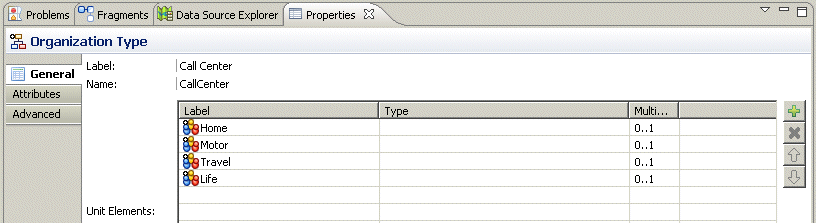

  3. For the Call Center Organization Type, specify the Home, Life, Motor and Travel Organization Unit Types as Organization elements.

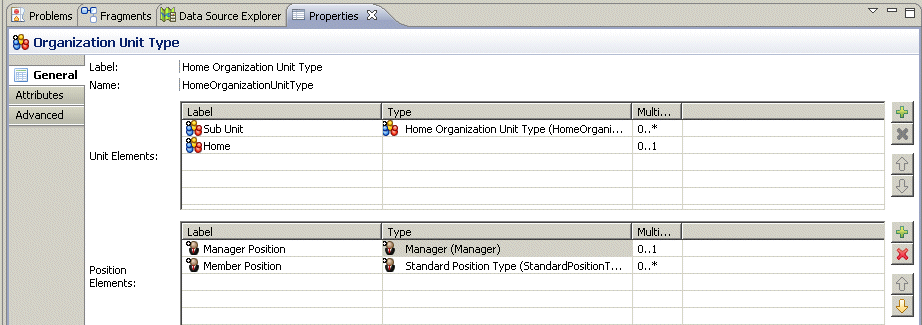

  4. For the Home, Life, Travel and Motor Organization Units, specify the Manager and Customer Service > Representatives as Position Elements.

  5. Create an Organization Model. Ensure that you deselect the Create default schema check box.
  6. Create an Organization within that Organization Model.
  7. On the General tab in Properties view, change the Type of the Organization you have just created from a Standard Organization Type to the Call Center Type.

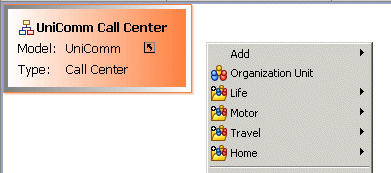

  8. In the Organization diagram editor, right-click on the empty canvas. On the context menu that pops up, you can select Home, Life, Motor and Travel Organization Units, as shown below. You can also select an untyped Organization Unit.

  9. Create either a Home, Life, Travel or Motor Organization Unit.

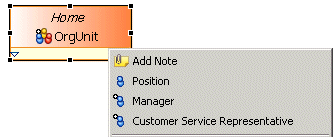

  10. If you right click on the Organization Unit you created, the Manager and Customer Service Representative Positions are displayed, as shown below.
