TIBCO BusinessEvents Enterprise Administrator Agent

TIBCO^® Enterprise Administrator provides a centralized administrative interface to manage and monitor multiple TIBCO products deployed in an enterprise. A product is exposed to TIBCO Enterprise Administrator with the help of an agent. TIBCO BusinessEvents is shipped with TIBCO BusinessEvents Enterprise Administrator Agent that can be used to administer, manage, and monitor BusinessEvents applications.

TIBCO BusinessEvents Enterprise Administrator Agent is the back-end server process that provides a management and monitoring functionality for a BusinessEvents application and cluster. The agent communicates with the TIBCO Enterprise Administrator Server for UI interactions and communicates with BusinessEvents instances using JMX. The BusinessEvents Enterprise Administrator Agent communicates with the remote machines for deployments using Secure Shell (SSH).

Using BusinessEvents Enterprise Administrator Agent, you can monitor and manage the BusinessEvents application deployment using a single dashboard. Thus BusinessEvents Enterprise Administrator Agent provides you a better user experience for BusinessEvents application management.

The integration consists of two main components:

• TIBCO Enterprise Administrator server
• TIBCO BusinessEvents Enterprise Administrator Agent

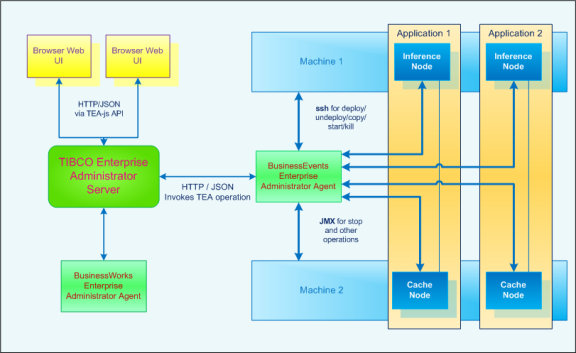

TIBCO Enterprise Administrator server renders the UI and works with the user sessions and product-specific agents. The agents provides product-specific functionality, such as, deployments, monitoring, and management of the product. TIBCO Enterprise Administrator server also provides a mechanism to bind users to the agent-specific roles and permissions. TIBCO Enterprise Administrator server can host or connect with multiple product agents, thereby providing a common dashboard across products to end users. The following diagram shows the architecture for BusinessEvents integration with TIBCO Enterprise Administrator.
