Deploying on an Instance Level

These steps will set project-related settings that apply to deployments on specific machines.

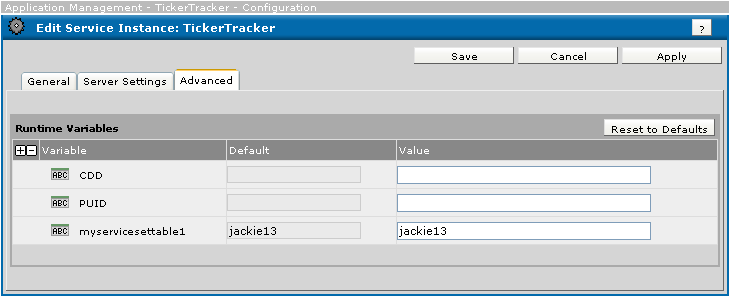

1. At the Configuration Builder panel, select a machine-level entry (machineName - projectName ). These entries appear below the application-name.bar entry. Then select its Advanced tab. You see a dialog similar to the following:


   Here you can also override any service-settable global variable values as desired. (See Overriding of Global Variables in TIBCO Administrator for important information.)

2. Click Save when you are done. The Configuration Builder panel appears again.
   The same project-related options are available here as at the .bar level, but here they apply only to an engine deployed to the selected machine. As desired, enter the name of the CDD file and processing unit (PUID) you want to use for this deployed engine. You can use a relative or absolute path. The same project-related options are available here as at the .bar level, but here they apply only to an engine deployed to the selected machine. Enter the name of the CDD file and processing unit (PUID) you want to use for this deployed engine. You can use a relative or absolute path.
3. You are now ready to deploy. By default, an engine starts when you deploy it. You can also start and stop engines as separate actions.

   Navigate to the main Configuration Builder dialog and click Deploy.


4. At the Deploy Configuration dialog, configure settings if desired then click OK. The application deploys, and the Configuration dialog displays again.

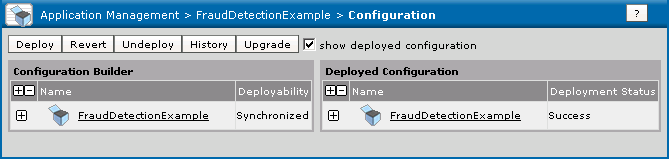

   You can select the Show deployed configuration check box to display the Deployed Configuration panel and verify success:
