An OpenSpirit Insert Activity creates and executes a query to insert
data via an OpenSpirit Data Connection.Activity
An OpenSpirit Insert Activity creates and executes a query to insert
data via an OpenSpirit Data Connection.
OpenSpirit Insert Configuration Fields
| Field | Global Var? | Optional? | Description |
| Name | No | No | User assigned name given to query activity |
| Description | No | Yes | User assigned description (optional) |
| OpenSpirit Data Connection | No | No | A shared resource that defines a project or data source. See OpenSpirit Data Connection. |
| SQL Query | No | No | The SQL INSERT query that defines which columns to insert. The SQL is constructed using the OpenSpirit Insert Query builder. |
| Model | No | Read Only | Displays the data model used in the SQL query. The model is specified in the OpenSpirit Insert Query builder. |
The input for the activity is the following.
| Input Item | Datatype | Description |
| QueryParameters | Complex | Contains the list of prepared parameters and the values of the attributes to be inserted in the SQL statement. Prepared parameters allow you to substitute process data for items in the SQL statement. The types and names of the prepared parameters are based on the SQL query. |
The output for the activity is the following.
| Output Item | Datatype | Description |
OspOutput |
Complex | The root class for the output of the OpenSpirit Insert activity. This class contains all output items for the activity. |
| NumRowsInserted | Integer | The number of rows inserted by this query (will be either 0 or 1). |
QueryParameters |
Complex | The input QueryParameters are echoed here so that subsequent activities may use the supplied values. |
OspDataKey |
string | The OpenSpirit datakey of the inserted item. This is returned if the insert succeeded. This is commonly used in subsequent Insert activities where children of this data item are to be inserted and they require the datakey of their parent. |
The Error Output tab lists the possible exceptions that can be thrown by this activity.
| Exception | Thrown When ... |
OspException |
The query could not be successfully executed. The msg element should contain some indication of the reason. |
OpenSpirit Insert Query Builder

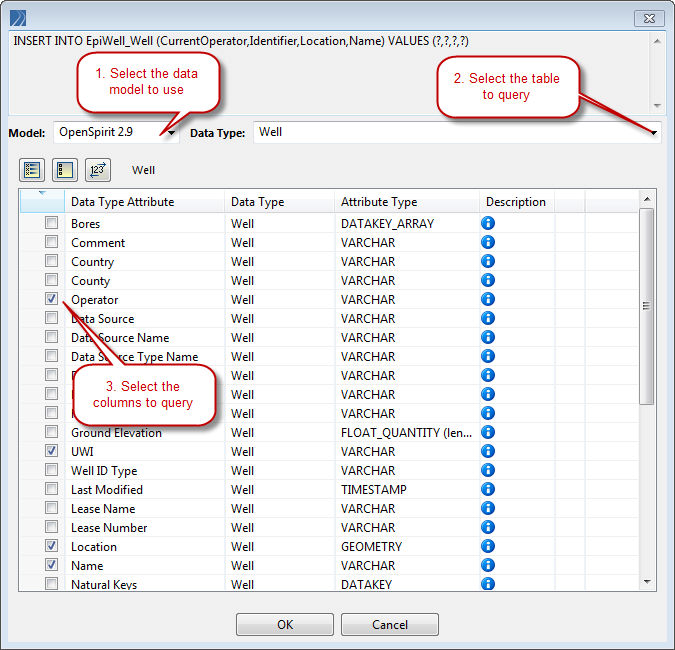

The INSERT query builder allows you to construct a SQL query statement without having to type any SQL. Follow the steps illustrated below:
1. Select the data model you wish to use. All OpenSpirit data connectors expose the OpenSpirit common data model and many also expose the native model of the underlying data store. If you chose a native model make sure it matches the data source type.
2. Select which table you wish to insert into. Note that display names are used in the combo box. The actual table name will appear in the constructed SQL query.
3. Select which columns,
or attributes, you wish to insert. The
icon
may be used to display the description, if available, for each column.
Note that display names are used in the listing of attributes. The
actual attribute name will appear in the constructed SQL query. An
input parameter will be constructed for every selected attribute with
the same name and type as the selected attribute.
Note that for some data stores (e.g. Kingdom and Petra) , after data is inserted, it will not be visible in the native application that is connecting to the same project unless the application refreshes its connection or is restarted. This is due to caching done in the vendor's API.
