Exporting Properties to Consul Server

This section describes exporting default and tokenized properties to Consul Server

Before you begin
  1. Select Windows > Preferences > BusinessWorks > Service Registryfrom the Menu bar.
  2. Once the Service Registry wizard opens, add the URL as http://<consul_server_host>:<port> for the Consul Server in the service registry configuration section.
  3. Click Apply and OK

To export tokenized properties to the Consul Server

    Procedure
  1. Double click the application properties.
  2. In the Properties view, select the profile, and click the Export Profile button.
    The Export Profile wizard opens.

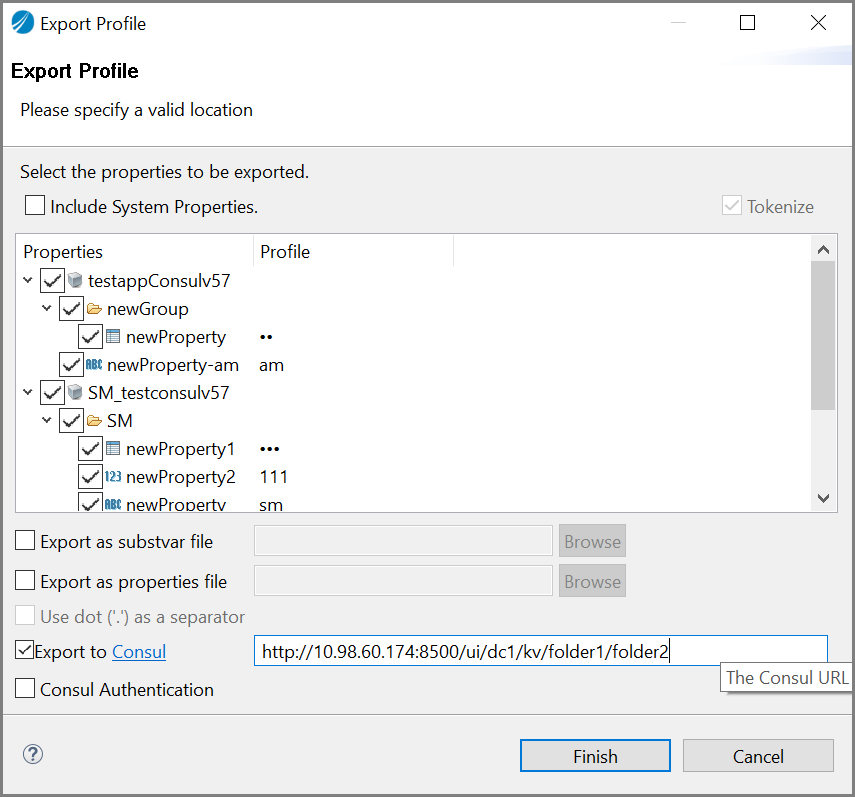

  3. In the Export Profile wizard, select the properties to be exported.
  4. To export to consul server, see select the Export to Consul checkbox and click Finish.
  5. To enable authentication for the Consul Server, select the Consul Authentication checkbox and click Finish.
    This checkbox is available only when the Export to Consul checkbox is selected. When the Consul Authentication checkbox is selected, it is mandatory to provide a authentication token.
    Note:
    • In the properties view, the values of the properties in the profile can be anything, when the profile is exported as a properties file it changes to #<PropertyName>#
    • The authentication token that has write authorization only can be exported to Consul Server. For more information, see the Using Consul as a Configuration Management Service.

    Note: It is now possible to export the profile properties to the specific custom folder under Consul > Key-Value by specifying its path in the Export to Consul checkbox.

    The following table lists the values of five different types of properties if the default values are not provided for all the properties and exported to consul server

    Data Type Property Name Values Before Export Values After export Values After Export in Consul Server
      DefaultDefault
    String newProperty5   #newProperty5# newProperty5
    Password newProperty4   #newProperty4# <encrypted value of the password>
    Integer newProperty3 0 #newProperty3# 0
    Long newProperty2 0 #newProperty2# 0
    Boolean newProperty1 false #newProperty1# false

    The following table lists the values of five different types of properties if the default values are provided for all the properties and exported to consul server

    Data Type Property Name Values Before Export Values After export Values After Export in Consul Server
      DefaultDefault
    String newProperty5 TIBCO #newProperty5# TIBCO
    Password newProperty4 *** #newProperty4# <encrypted value of the password>
    Integer newProperty3 1 #newProperty3# 1
    Long newProperty2 12345 #newProperty2# 12345
    Boolean newProperty1 true #newProperty1# true

    The following table lists the values of five different types of properties if the default tokenized values are provided for all the properties and exported to consul server

    Data Type Property Name Values Before Export Values After export Values After Export in Consul Server
      DefaultDefault
    String newProperty5 #//test//newProperty5# #newProperty5# newProperty5
    Password newProperty4 #//test//newProperty4# #newProperty4#

    a String:

    PASSWORD

    Integer newProperty3 #//test//newProperty3# #newProperty3# 0
    Long newProperty2 #//test//newProperty2# #newProperty2# 0
    Boolean newProperty1 #//test//newProperty1# #newProperty1# false

    Note: After exporting String type property in group to consul server, the exported profile has key and value as newGroup.newGroup1.newGroup1Property5
