Process Diff Viewer
The following are the different modes of operation by which diff viewer is viewed for a process.
- Import an already existing sample or create a new project.
- The selected process should be modified and saved at least once before comparing the two revisions. This ensures that there is a local history available in the workspace.
- Procedure

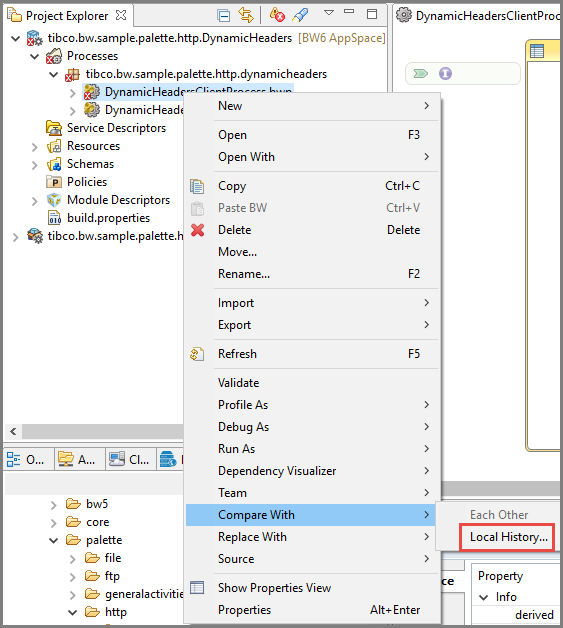

- In
Project Explorer view, right-click on the selected process and select
or
The History tab is displayed.
- On the

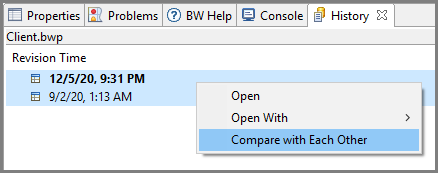

History tab, select the two different revisions to compare. Right-click and select
Compare with Each Other option.

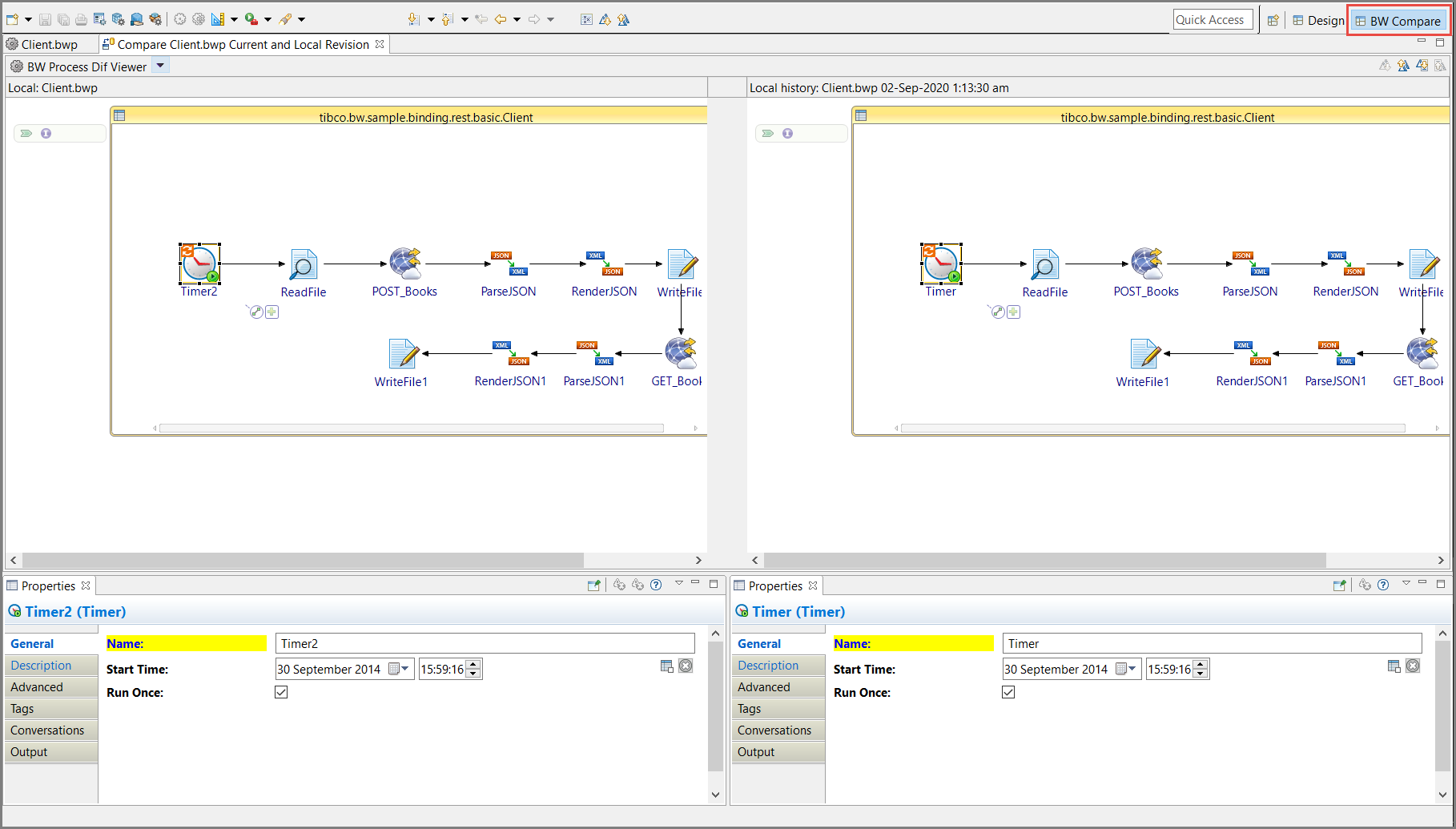

A BW Compare view is displayed, that displays the visual diff between the two different revisions of the selected process.
In the above example, there is a change in the General and Description tab hence they are marked in blue.
On the General tab, a change is made in the Name field, hence it is highlighted in yellow.
- Procedure

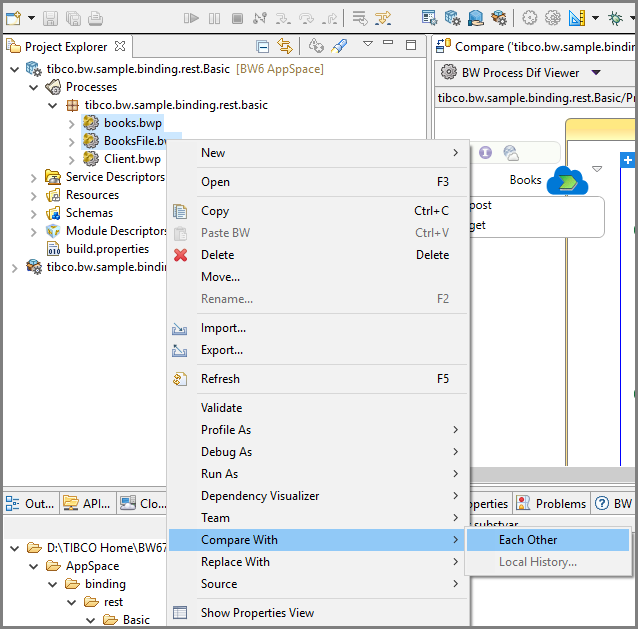

- In Project Explorer view, select the two different processes. Right-click and select
.

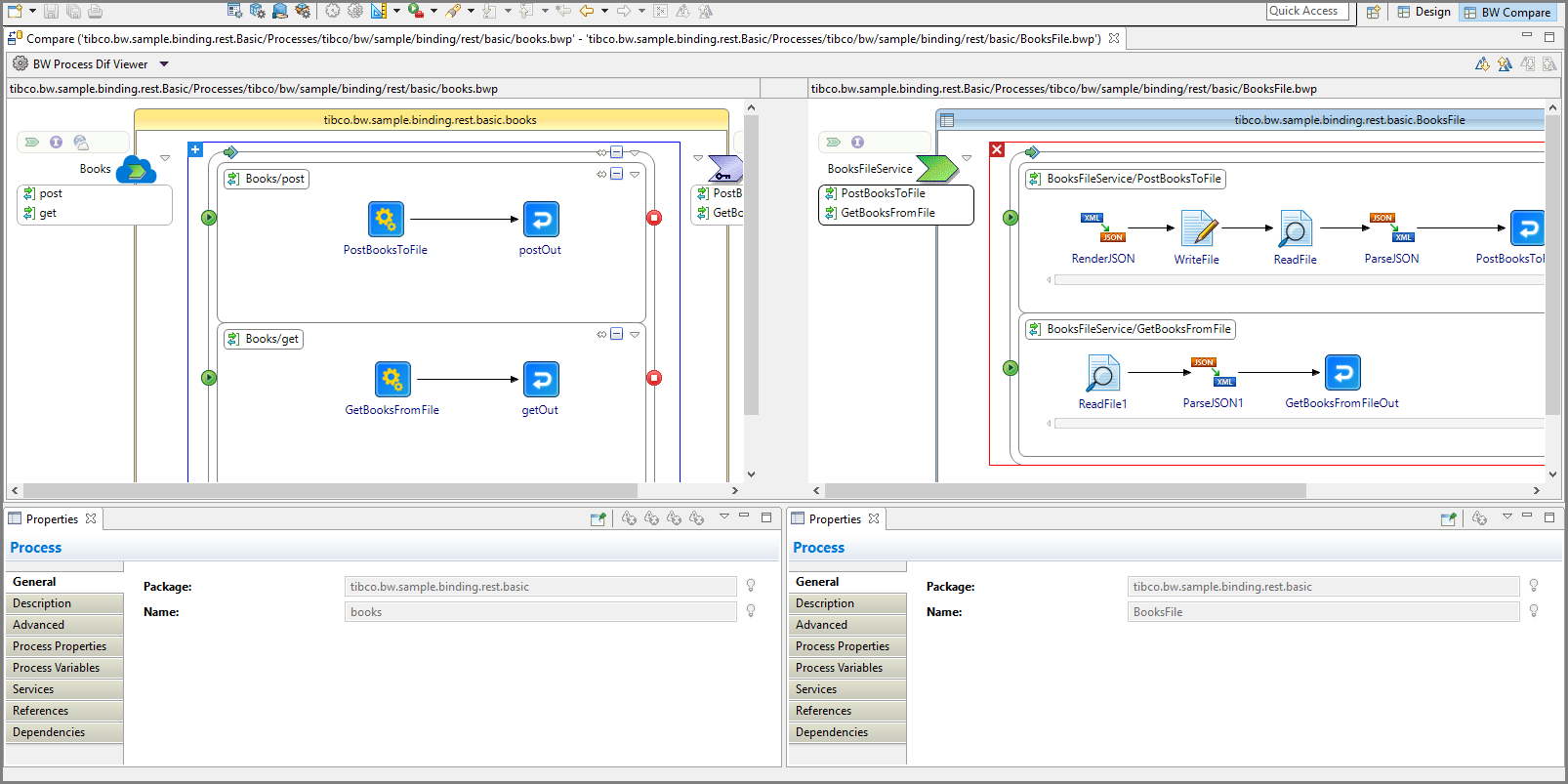

A BW Compare view is displayed, that displays the visual diff between the two different processes.
Caution: If a process in an application is copied to the same application or shared module or a different application, the diff viewer does not highlight any changes unless the changes are explicitly made. If a new process is created with the same activities, the diff viewer will highlight changes for the activities even though the process flow is same.
- Import a project from SVN repository.
- Ensure the project is imported from SVN repository and a previous version of the project is saved and available to compare the two revisions.
- Procedure
- In

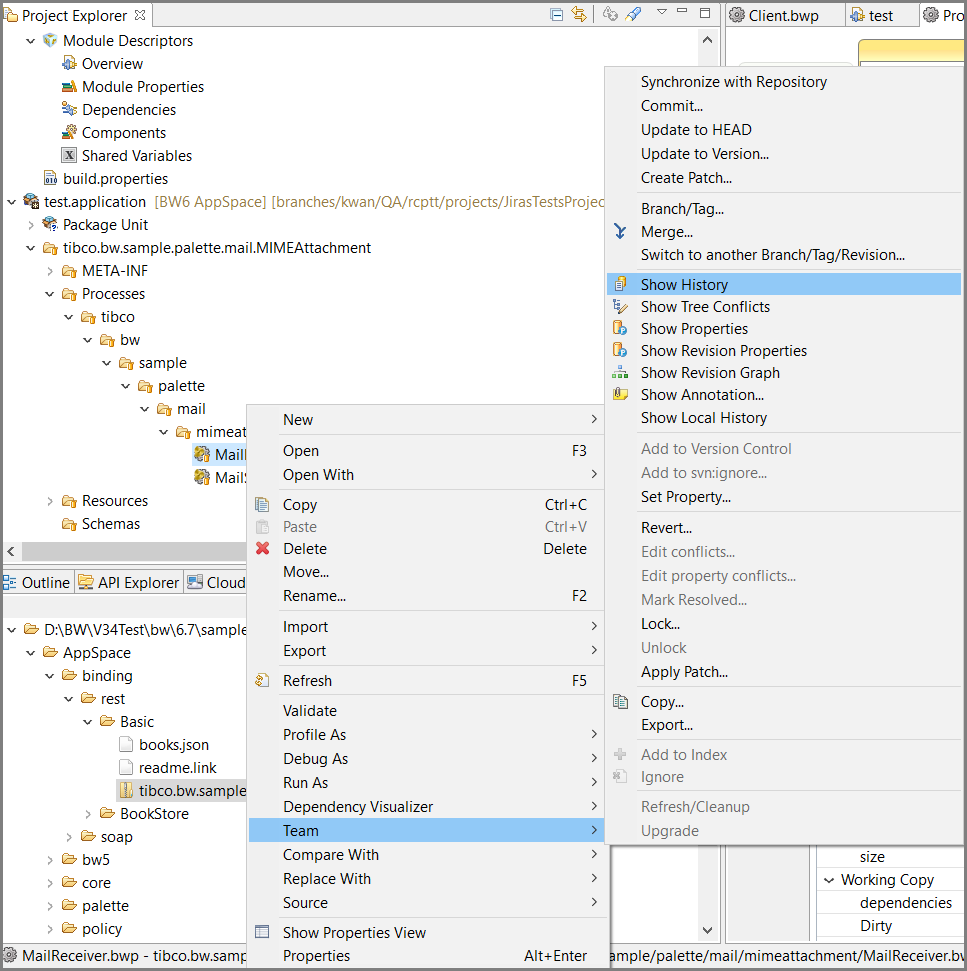

Project Explorer view, right-click on the selected process imported from the SVN repository and select
The History tab is displayed.
- On the
History tab, select the two different revisions to compare. Right-click and select
Compare option.
The Compare window is displayed.
- In the
Compare window, select the SVN versions to compare. Click
OK.
A BW Compare view is displayed, that displays the visual diff between the two different revisions of the selected process.
- Import a project from Git repository.
- Ensure the project imported from Git repository has a previous version and the project is saved and available to compare the two revisions.
- Procedure

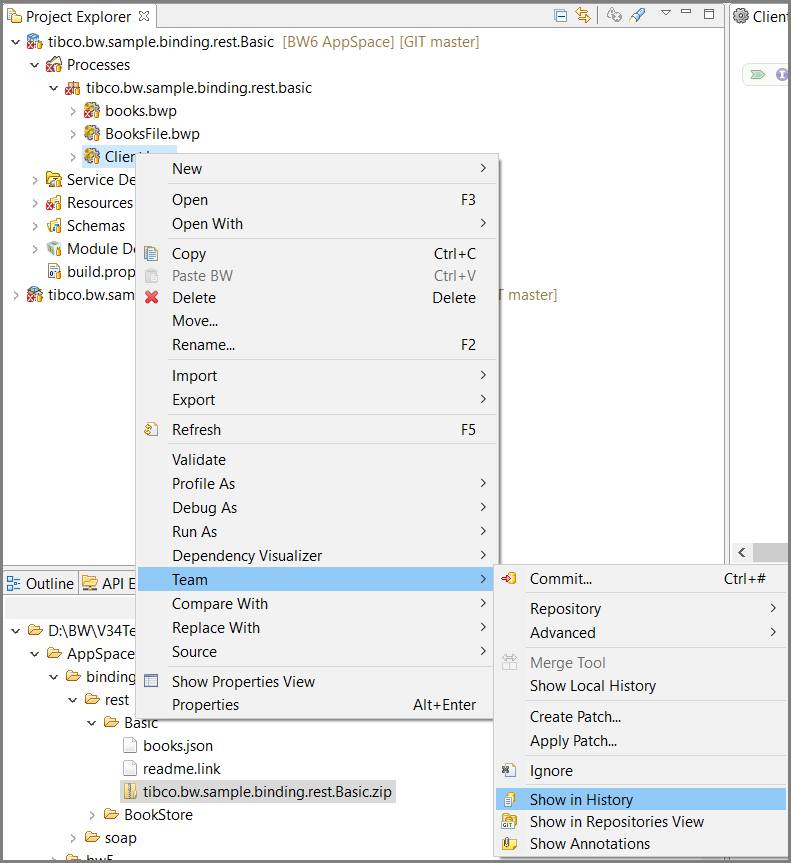

- In Project Explorer view, right-click on the selected process imported from the Git repository and select
The History tab is displayed.
- On the
History tab, select the two different revisions to compare. Right-click and select
Compare with Each Other option.
A BW Compare view is displayed, that displays the visual diff between the two different revisions of the selected process.
