Using AWS as a Configuration Management Service from TIBCO Business Studio for BusinessWorks

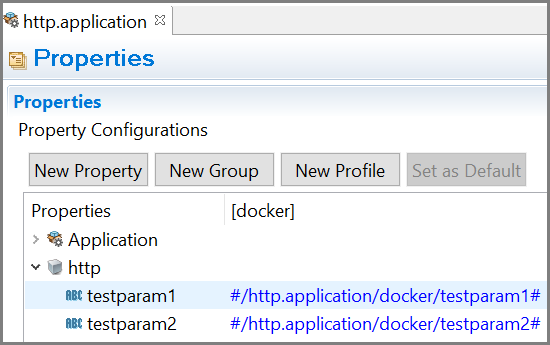

You can use AWS Systems Manager Parameter store for configuration management services in TIBCO Business Studio for BusinessWorks by defining a token such as #/<BWCE_APP_NAME>/<PROFILE_NAME>/<property name># in the application properties, where <property name> is the name of the configuration parameter.

For example, #/http.application/docker/testparam1#.

Procedure

Follow these steps to use configurations from AWS Systems Manager Parameter store in TIBCO Business Studio for BusinessWorks:

  1. Set the environment variables AWS_ACCESS_KEY, AWS_SECRET_KEY, AWS_REGION, AWS_PARAMETER_STORE, and APP_CONFIG_PROFILE. The AWS_ACCESS_KEY and AWS_SECRET_KEY environment variables are used as credentials for authentication. In order to enable assume role, the following additional environment variables should be passed, AWS_ROLE_ARN, AWS_ROLE_SESSION_NAME, AWS_EXTERNAL_ID (optional), and AWS_EXPIRATION_DURATION (optional). For more information on the environment variables, see Environment Variables for Docker.
  2. Select the desired profile as the default profile inside TIBCO Business Studio for BusinessWorks in order to fetch the values from AWS Server.

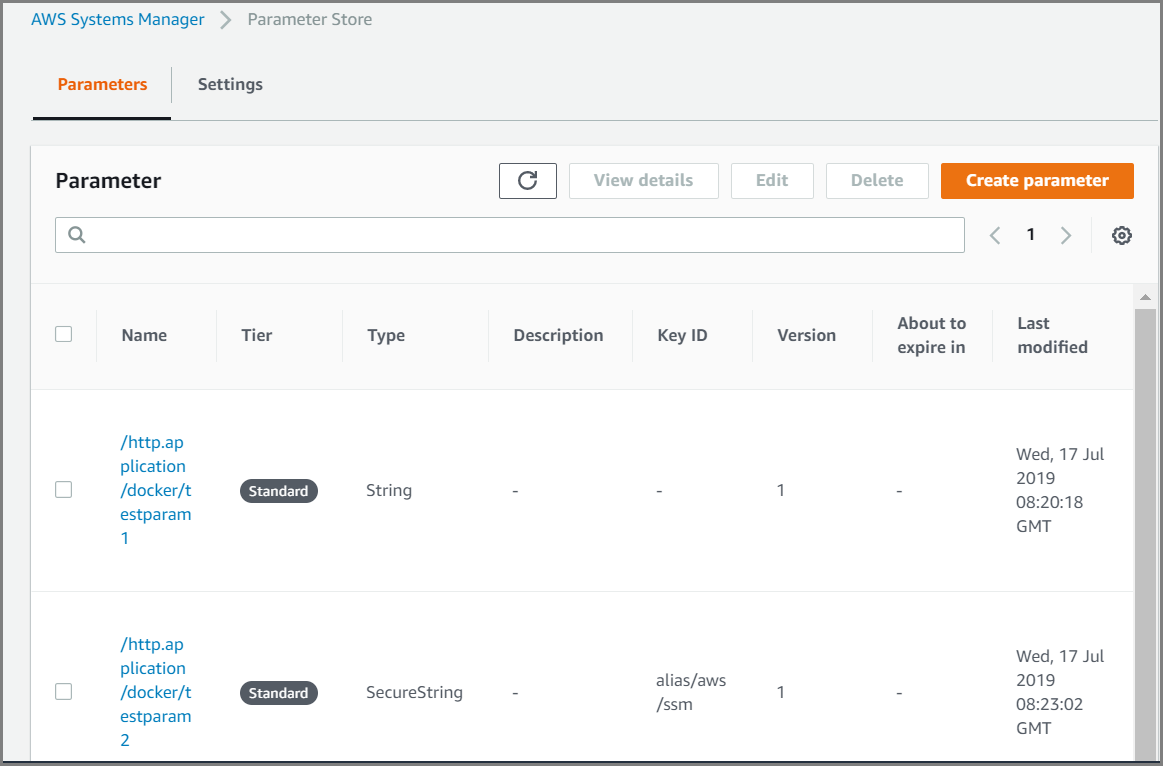

  3. In your AWS parameter store, define the keys using the format /<BWCE_APP_NAME>/<PROFILE NAME>/<KEY Name>.

    For example, /http.application/docker/testparam1

Integrating ECS and EKS Services with AWS Parameter Store

Support for configuration management service for AWS Parameter Store is provided while deploying application on ECS and EKS services.

Set the environment variables APP_CONFIG_PROFILE and AWS_PARAMETER_STORE to configure ECS and EKS services with AWS Parameter Store.

To use AWS Parameter Store with EKS service for passwordless solution, deploy the application on EKS cluster configured to a service account, OIDC provider, and an IAM role associated with the cluster, pass the environment variables APP_CONFIG_PROFILE and AWS_PARAMETER_STORE. The AWS credentials do not need to be passed. For more information, see https://aws.amazon.com/it/blogs/opensource/introducing-fine-grained-iam-roles-service-accounts/

Note: The AWS credentials need to be provided while running the application on TIBCO Business Studio for BusinessWorks or Docker platform.
