Testing a Process

After configuring a process, you can test the configured process to check if the designed process completes the task.

Prerequisites

Ensure that you have configured a process, as described in Configuring a Process.

Procedure

  1. On the toolbar, click Debug > Debug Configurations.
  2. Click BusinessWorks Application > BWApplication in the left panel.
  3. Ensure that only the application you want to debug is selected in the Applications tab in the right panel.
  4. Click Debug to test the process in the selected application.

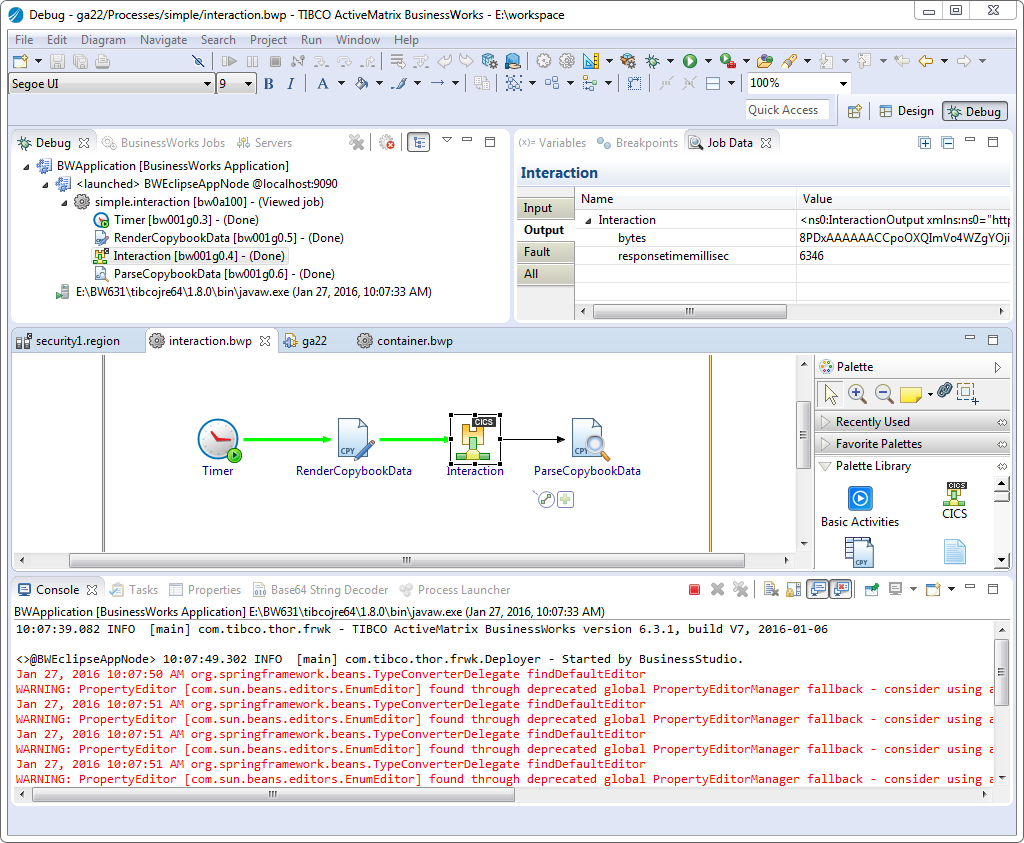

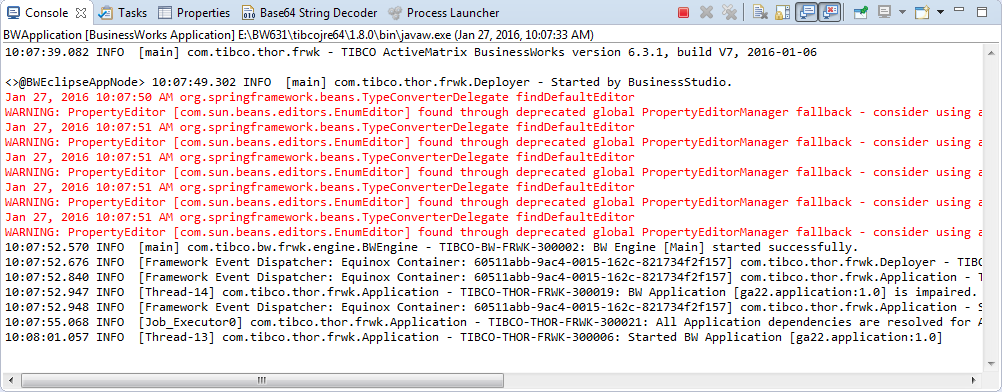

    TIBCO Business Studio changes to the Debug perspective. The debug information is displayed in the Console view.

  5. In the Debug tab, expand the running process and click an activity.
  6. In the upper-right corner, click the Job Data tab, and then click the Output tab to check the activity output.
