The MSSQLPublishByReference project contains one process:
mssqlpublishbyreference.PubByRef process. This project demonstrates how the plug-in handles polling of data from referenced object.
PubByRef Process

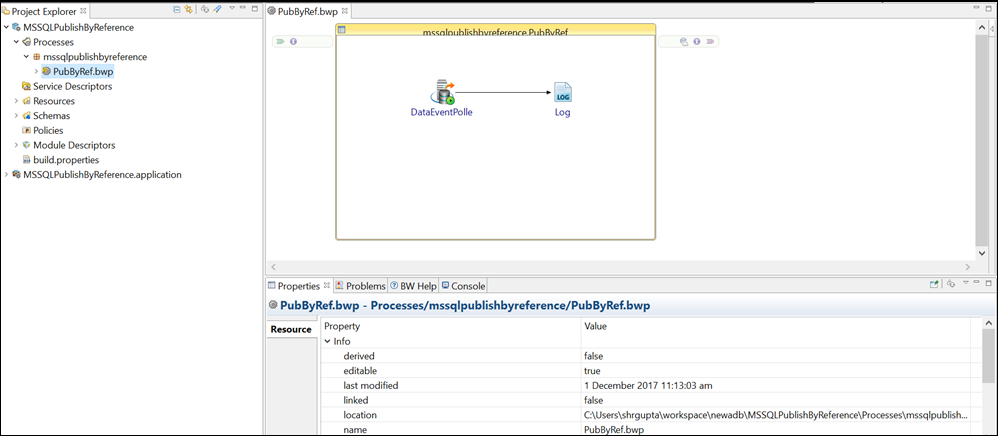

In this example, the DataEventPoller activity polls the data from the referenced object. The following figure shows the PubByRef process:
JDBC Connection Resource

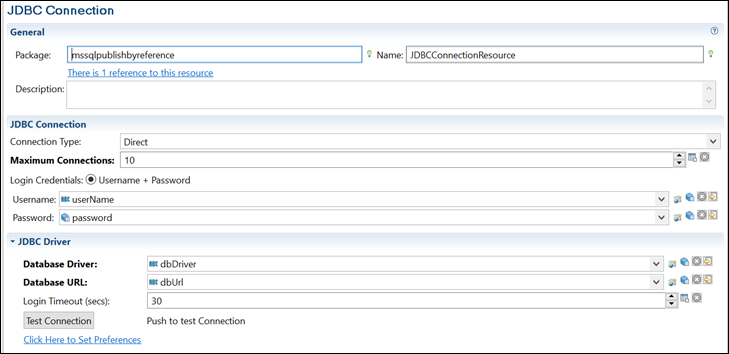

In this example, the JDBC Connection resource is configured as follows:
ADB Configuration Resource

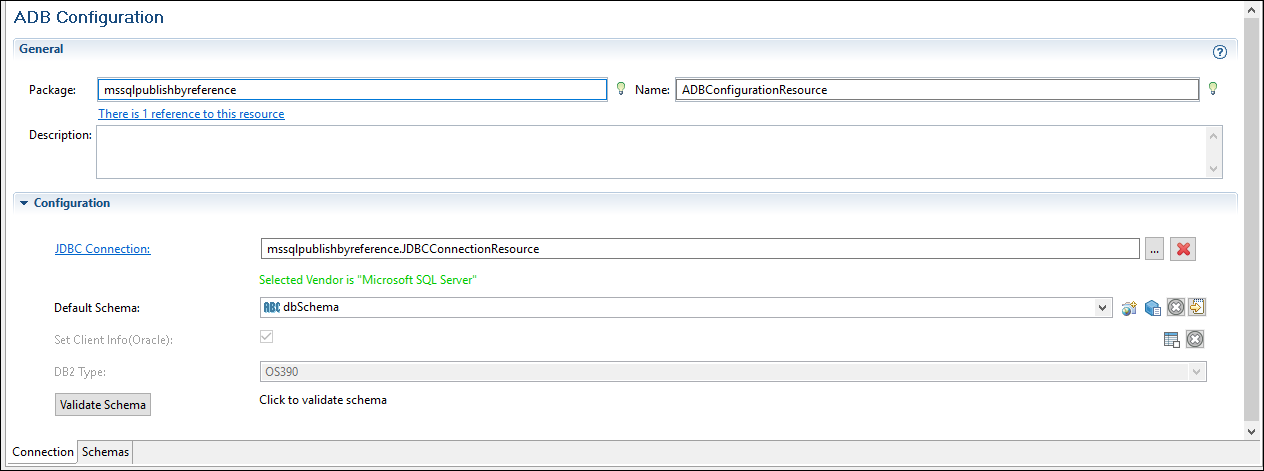

In this example, the ADB Configuration resource is configured as follows:
The table schema is defined by using the Schemas tab. The different tabs on the right are shown below.

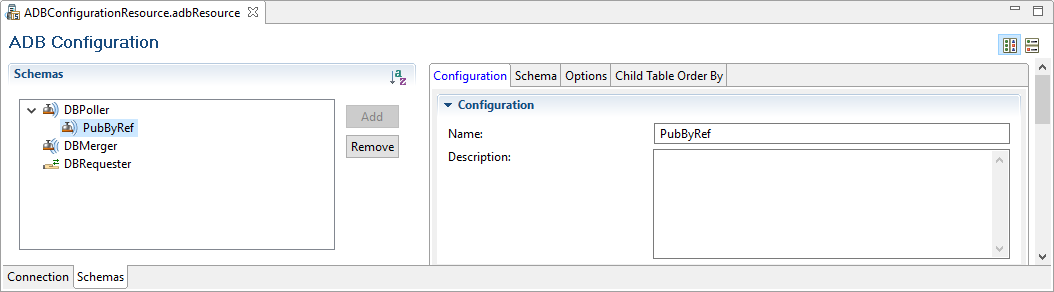

The Configuration tab:

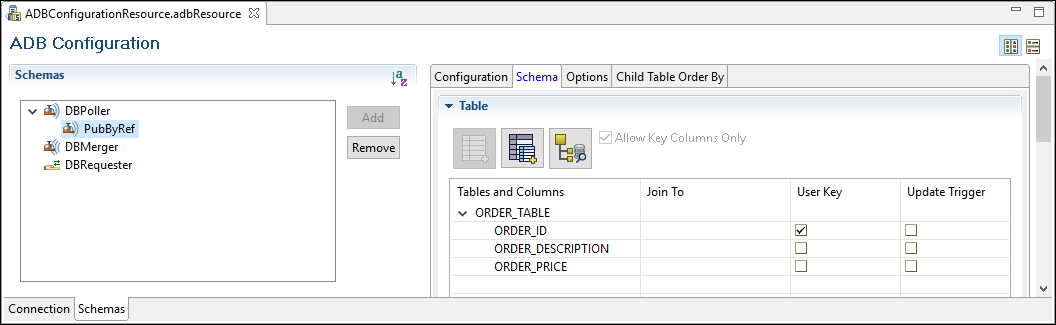

The Schema tab:

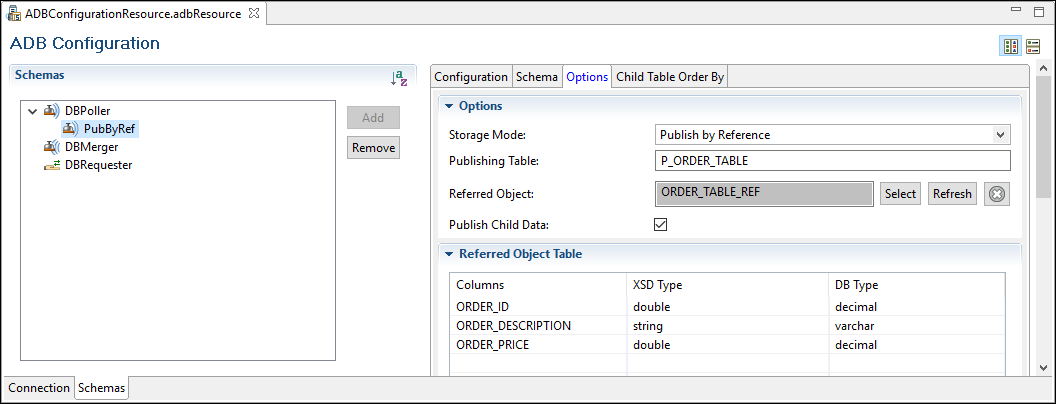

The Options tab:

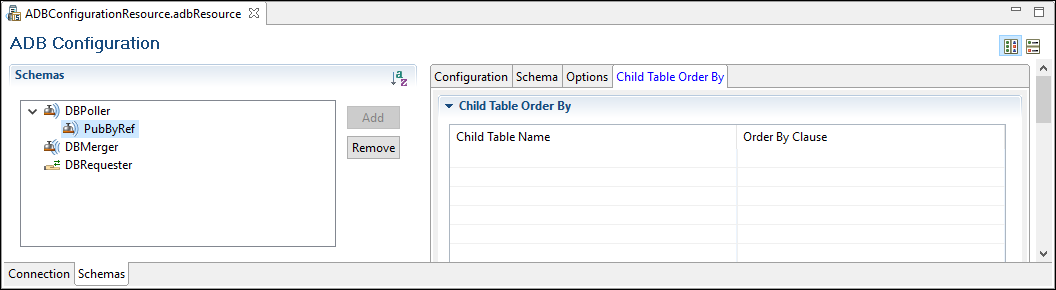

The Child Table Order By tab:
