Data Event Poller: DB2UDBParent Project

The DB2UDBParent project contains one process: db2udbparent.PublishParentData process. This project demonstrates how the plug-in handles polling of data from a publishing table.

PublishParentData Process

In this example, the DataEventPoller activity polls the data from the publishing table. The following figure shows the PublishParentData process:

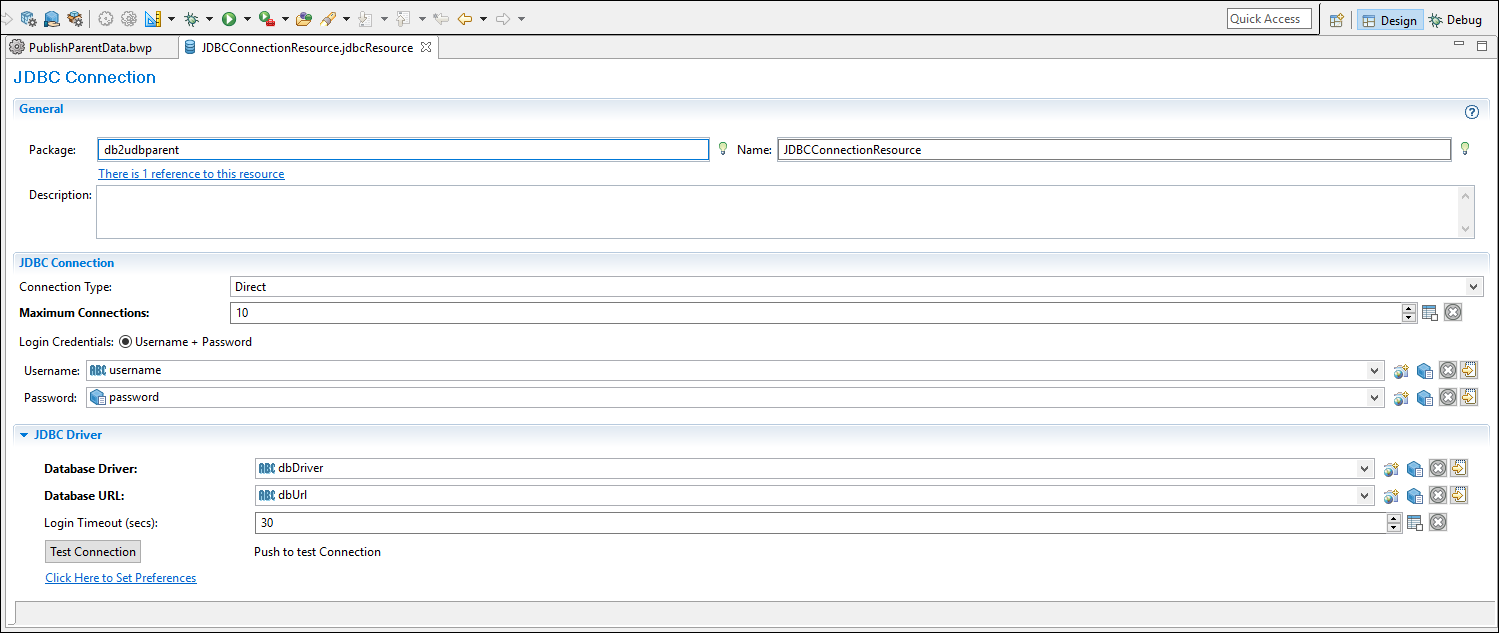

JDBC Connection Resource

In this example, the JDBC Connection resource is configured as follows:

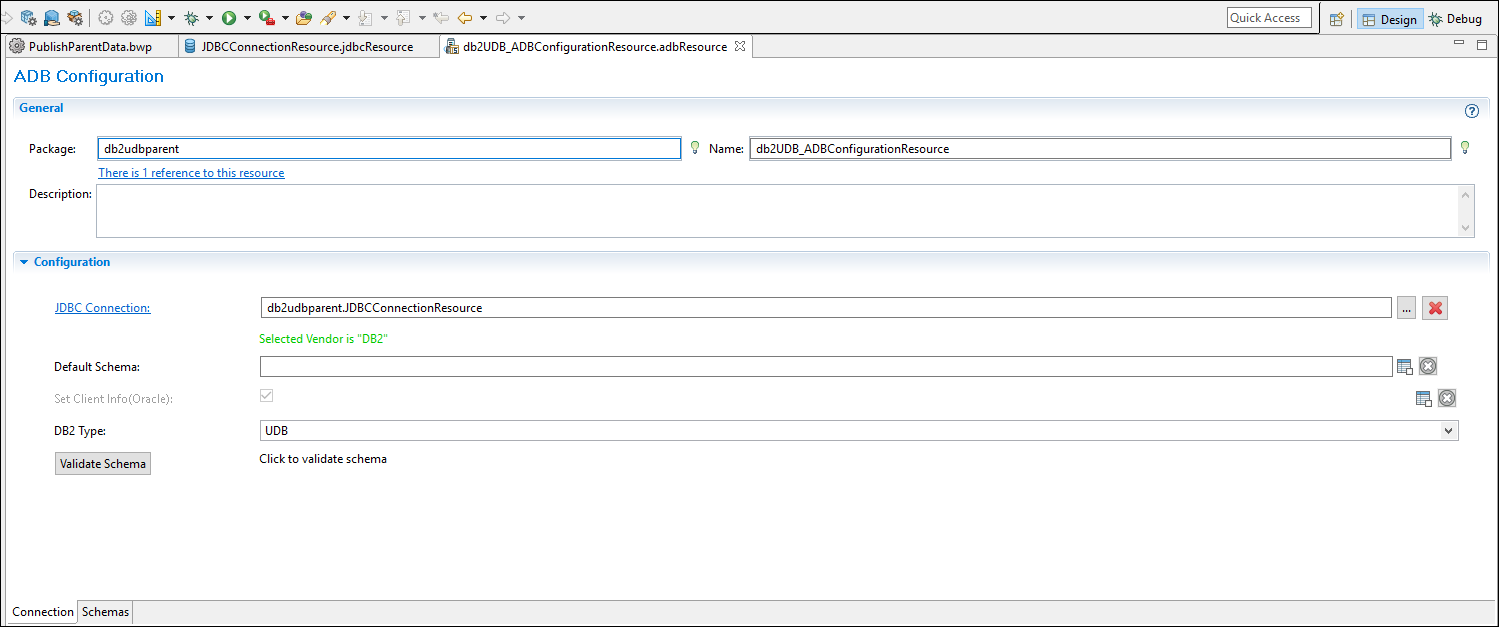

ADB Configuration Resource

In this example, the ADB Configuration resource is configured as follows:

The table schema is defined by using the Schemas tab. The different tabs on the right are shown below.

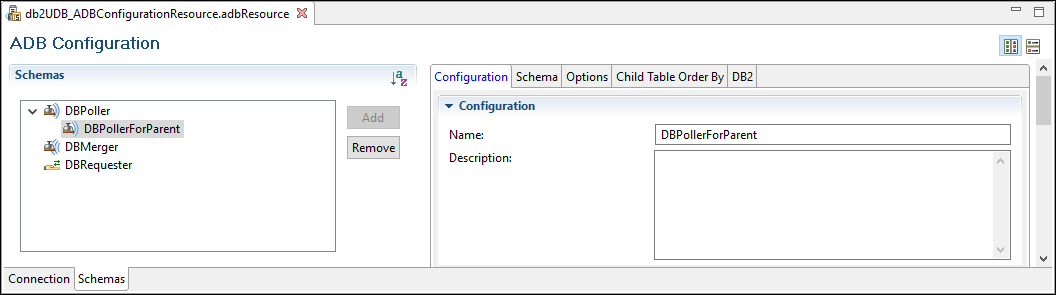

The Configuration tab:

The Schema tab:

6in

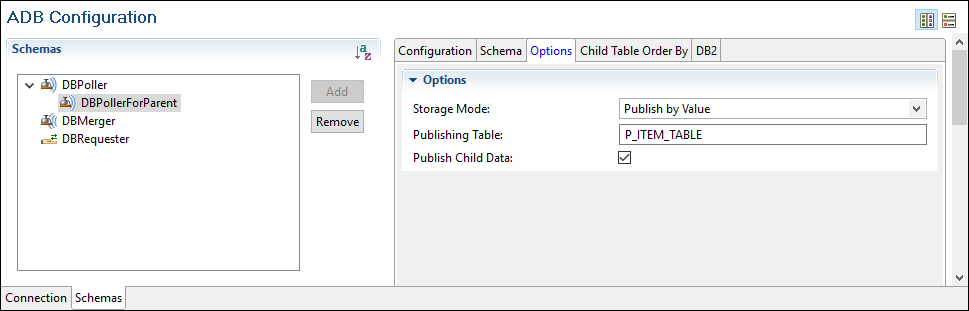

The Options tab:

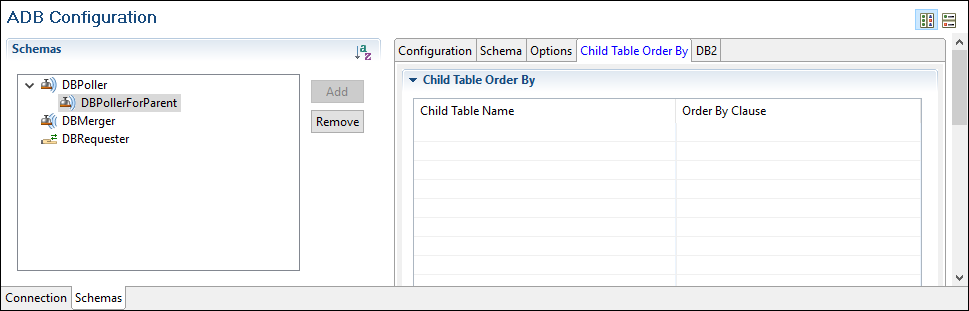

The Child Table Order By tab:

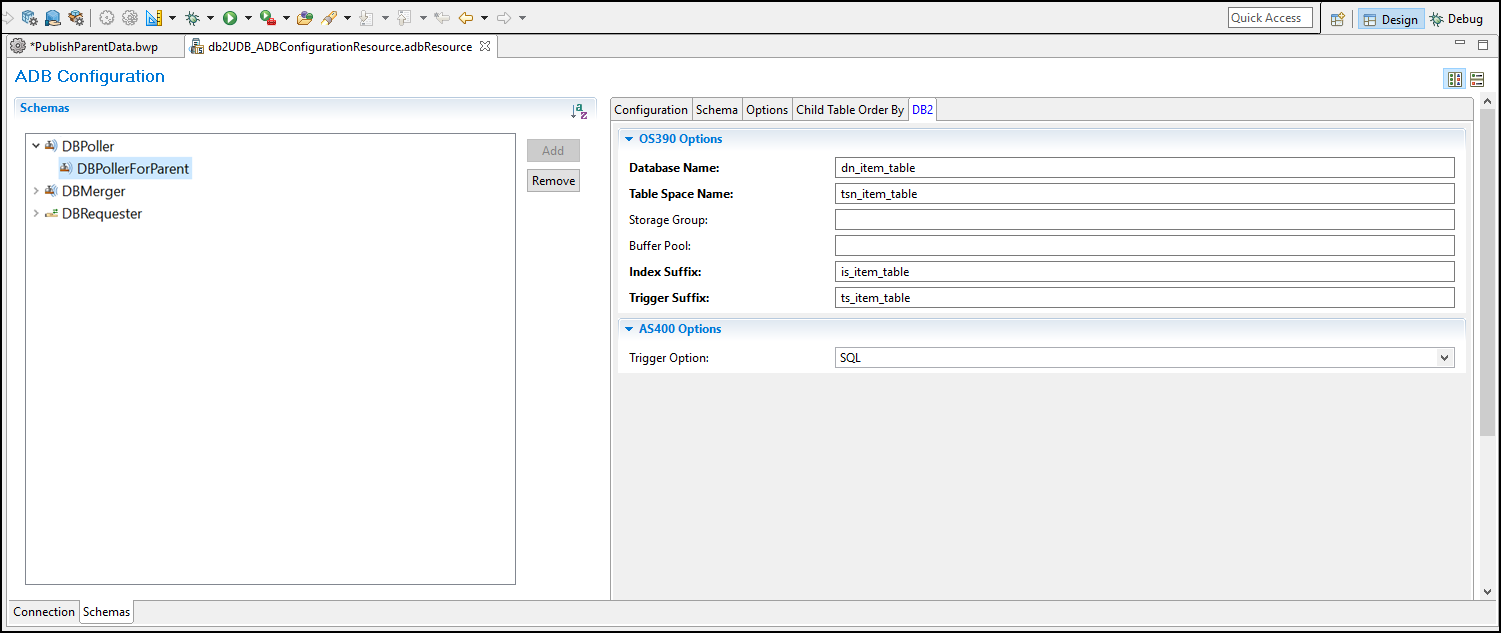

The DB2 tab
