Data Requester OracleDataRequester: Running the Project

After setting up the project, you can run it.

Procedure

  1. In the Project Explorer view, expand the Module Descriptors resource, and then double-click Components.
  2. In the Components editor, select the process that you want to run.
  3. On the toolbar, click the Save icon.
  4. To run the selected process, on the menu bar, click Run > Debug Configurations.
  5. In the Debug Configurations dialog box, expand BusinessWorks Application, and then click BWApplication.
  6. In the right panel, click the Applications tab, and then under OracleDataRequester.application select the check box next to the process you want to run.
  7. Click Debug to run the process.
  8. Click the Stop icon to stop the process.

Result

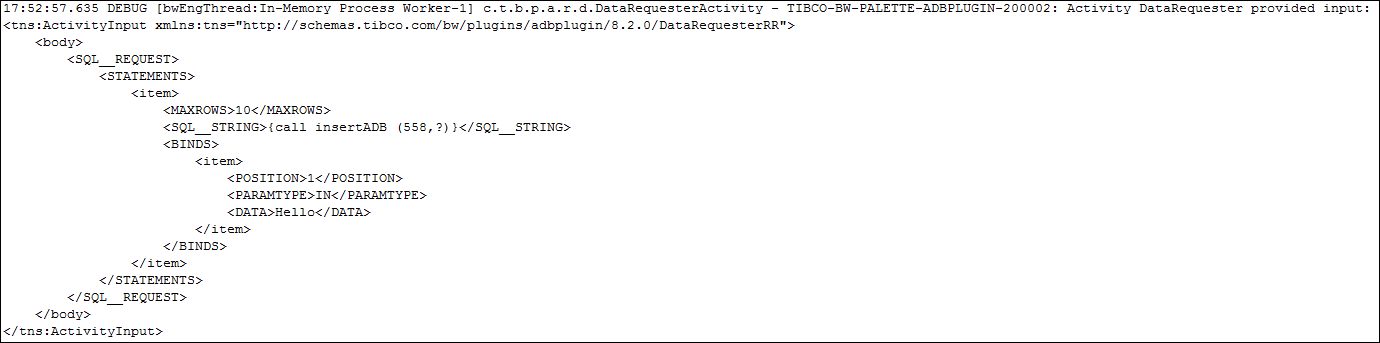

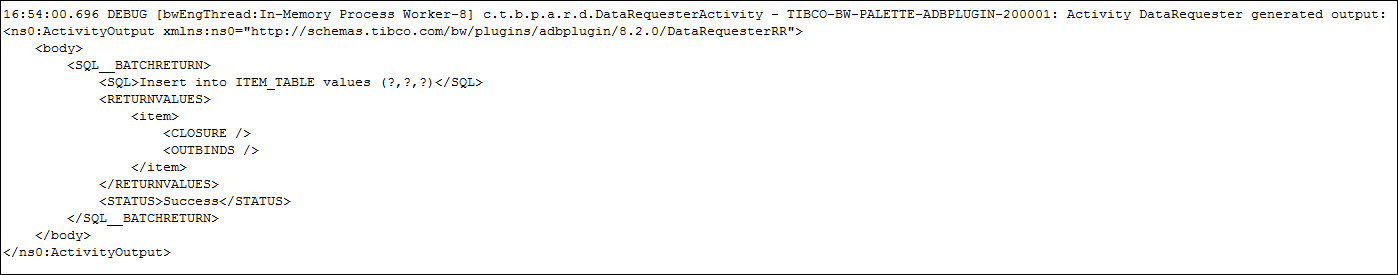

After the RPC_SQLBATCHEXECUTE process runs successfully, its input and output can be seen as follows:

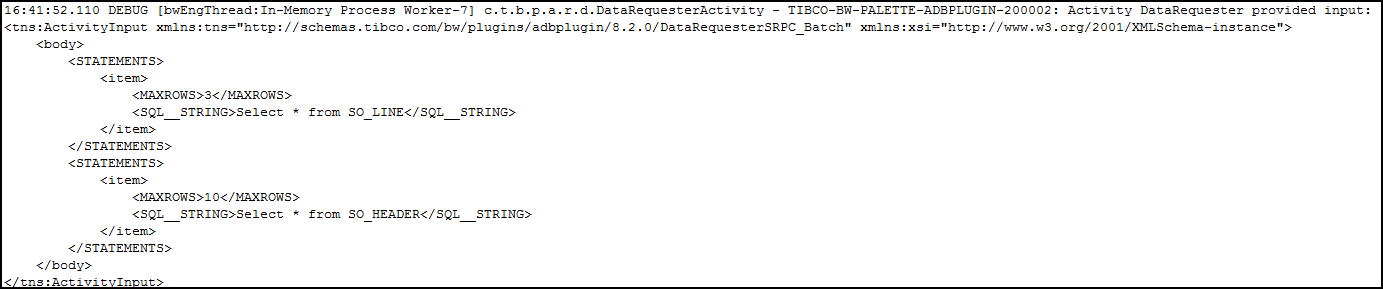

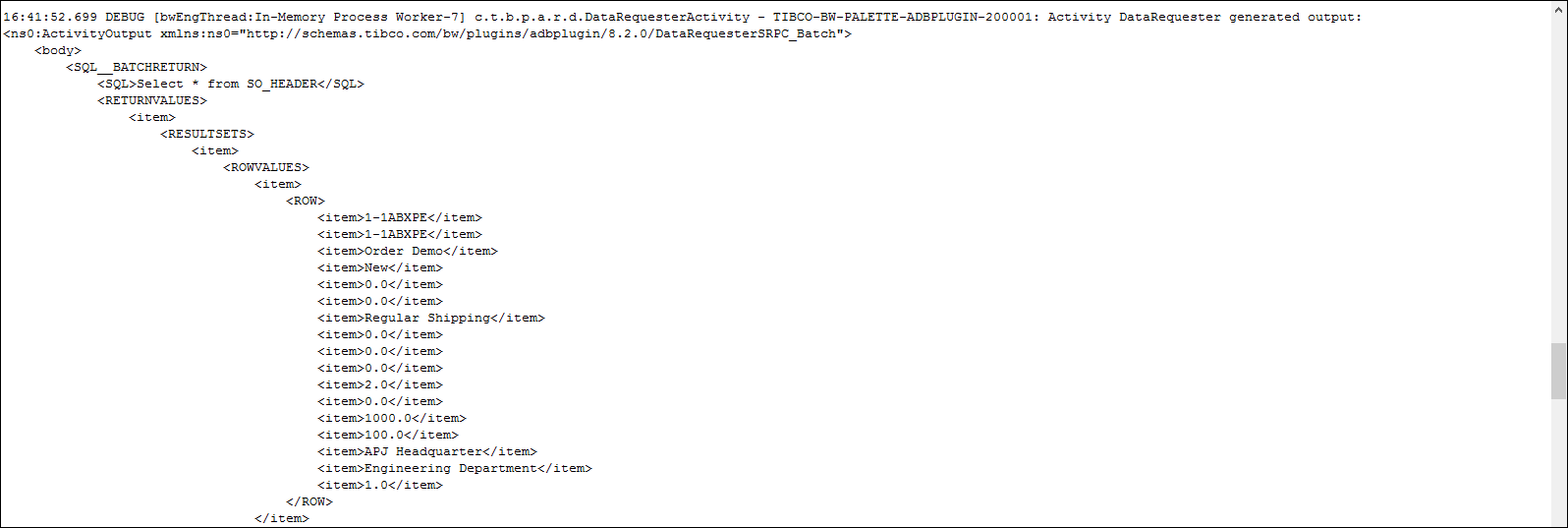

After the RPC_SQLEXECUTE process runs successfully, its input and output can be seen as follows:

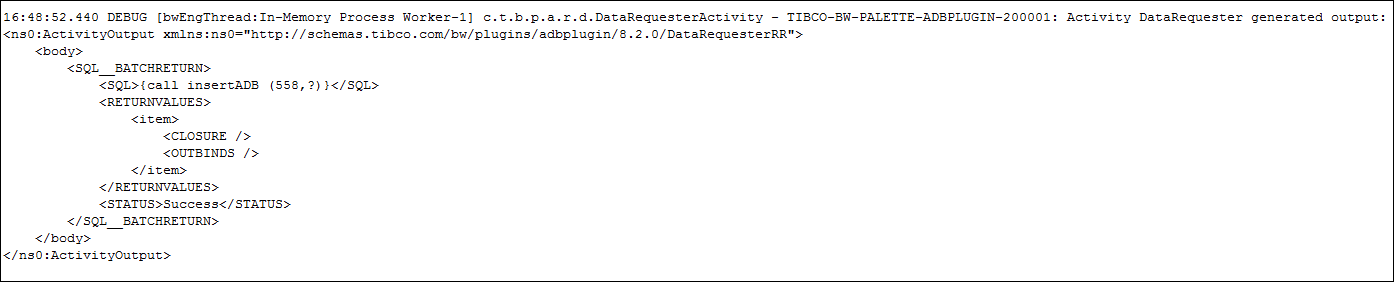

After the RR_callprocedure process runs successfully, its input and output can be seen as follows:

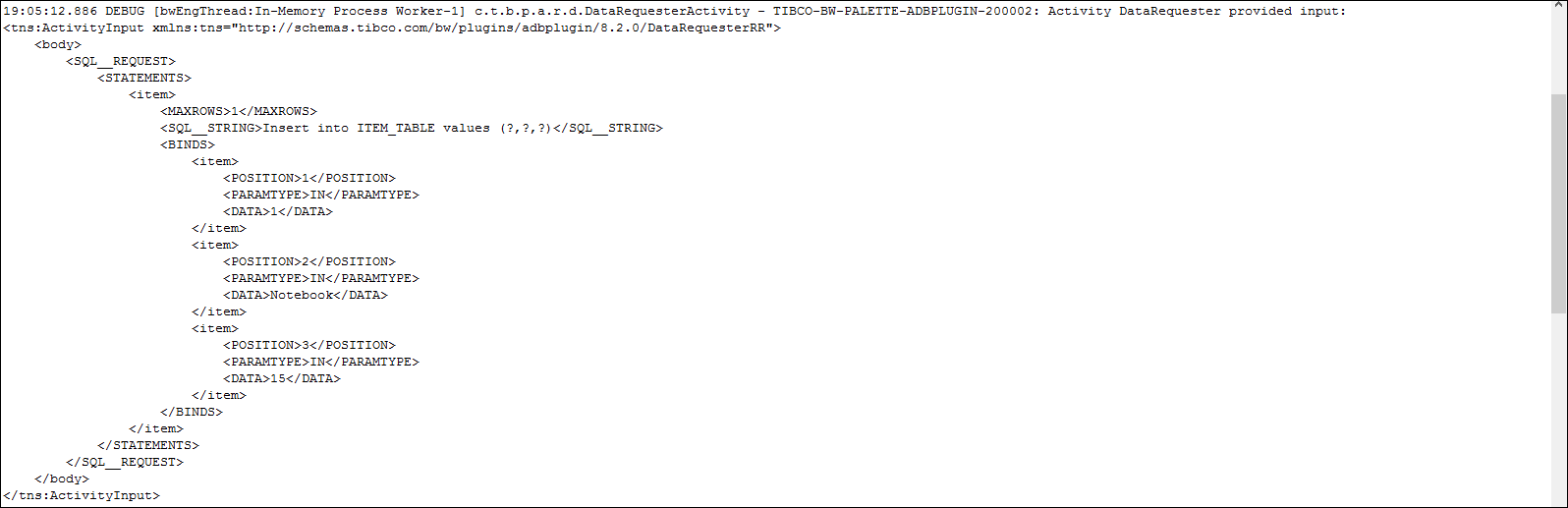

After the RR_mode process runs successfully, its input and output can be seen as follows:
