Creating a Schema by Using the ADB Configuration Shared Resource

You can use the ADB Configuration Shared Resource to create a schema to use in the processes you create by using the activities provided by this plug-in.

Adding a Shared Resource

Perform the following steps to add a shared resource for the DataEventPoller activity, DataMerger activity, and the DataRequester activity.

Procedure

  1. Expand the created project in the Project Explorer view.
  2. Right-click the Resources folder and select New > ADB Configuration. Specify the Resource Folder, Package, and Resource Name. Click Finish.
  3. On the Connection page, select the JDBC connection in the JDBC Connection field.
  4. On the Schemas page, select DBPoller, DBMerger, or DBRequester as required, and then click Add. As soon as a new DBPoller, DBMerger, or DBRequester schema is added, a corresponding section is created on the right.

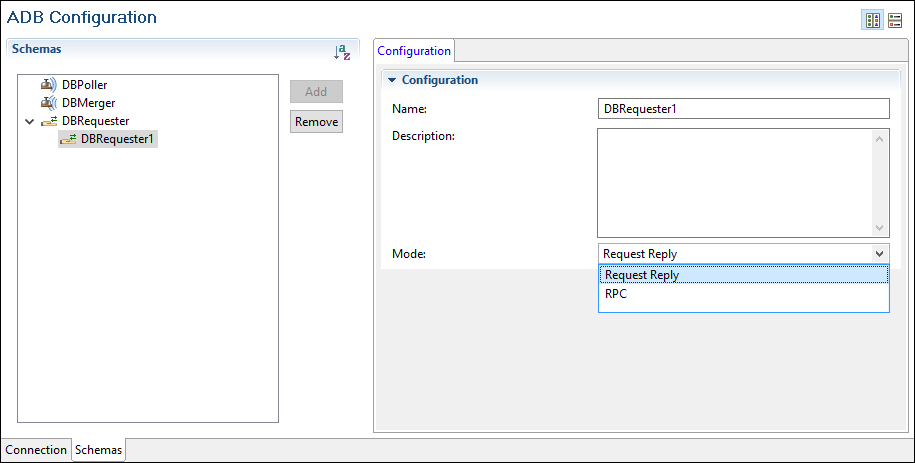

    Note: The schema for DataRequester activity has the following modes:
    • Request Reply mode takes a sequence of statements as a request and replies back to activity as output.
    • Remote Procedure Call (RPC) mode can be used to configure the plug-in to act as remote procedure call server on behalf of a client.

Adding a Parent Table

Note: If you perform a delete operation on a Parent table, the DataEventPoller activity does not publish any child data.

You can add a parent table only to DB Poller and DB Merger schemas. To add a parent table from the connected Database (through JDBC connection) for the DataEventPoller activity and the DataMerger activity:

Procedure

  1. On the ADB Configuration page, navigate to the Schemas > Schema tab.
  2. Click Add table . The Select Table wizard is displayed.
  3. Enter a pattern name to search the table.
    You can also use the % character to search for table names.
  4. To fetch data from the default schema, click Fetch beside the Default Schema field. To fetch data from any other schema, click Fetch beside the Other Schema.
    Note: For a parent table, only tables are fetched.

    All the tables available in the specified schemas are displayed.

  5. Click Finish.

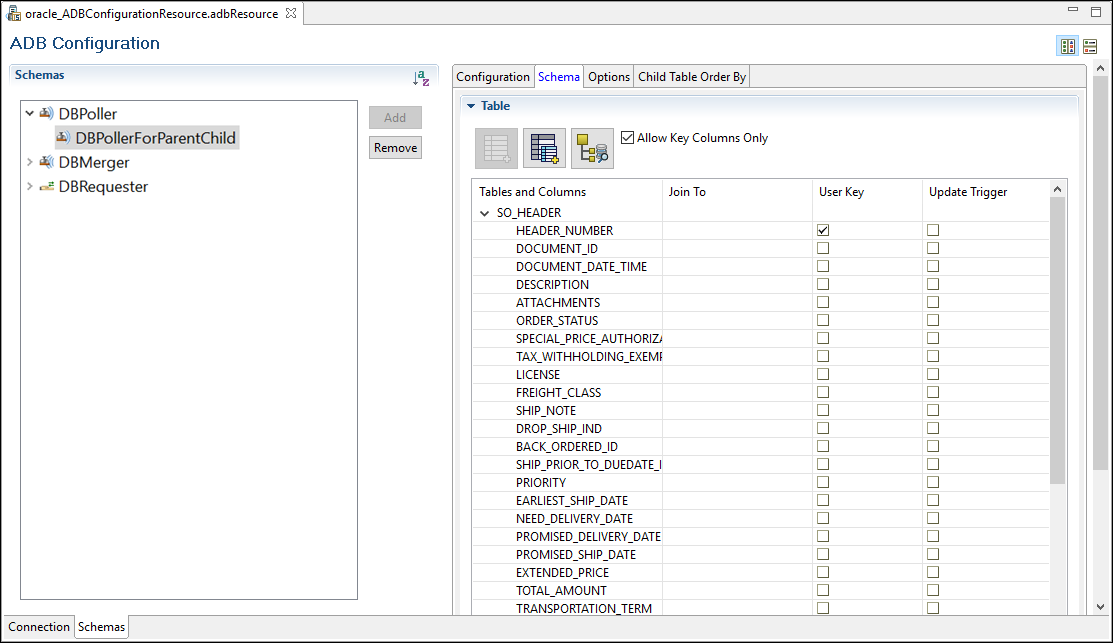

    The table is displayed in the Schema tab on the right.

Adding a Child Table

You can add a child table only to DB Poller and DB Merger schemas. To add a child table from the connected Database (through JDBC connection) for the DataEventPoller activity and the DataMerger activity:

Procedure

  1. On the ADB Configuration page, navigate to the Schemas > Schema tab.
  2. Select the parent table and click Add Child table .

    A wizard similar to the one for adding a parent table is displayed.

  3. Fetch the table and click Finish.
    Note: For a child table, both tables and views are fetched.

    The child table is added under the parent table and displayed in the Schema tab on the right.

Selecting a Table from Other Schema

On the ADB Configuration page, the schema mentioned in the Default Schema field on the Connection tab is the Default Schema. Any schema other than the default schema is termed as Other Schema.

The following points are to be noted about Other Schema:
  • To access tables in the Other Schema, the database user must have the proper set of permissions granted.
  • The Add table opens a dialog box from which you can add a table from the Other Schema. You can use it to add different schemas at parent and child level.
  • If you set the value of the Default Schema field to a different schema (other schema) name other than the default schema specified in an Oracle database and select a table by performing the steps mentioned later, the table is loaded from the other schema and the publishing table is also generated in the other schema.
  • If you set the value of the default schema to a non-DBO schema (other schema) for Microsoft SQL Server database or a non-Public schema (other schema) for a PostgreSQL database and select the table by performing the steps mentioned later, the table is loaded from the other schema and the publishing table is also generated in the other schema.
  • To select a table from other schema, perform the following steps:

Procedure

  1. On the ADB Configuration page, go to the Schemas > Schema tab.

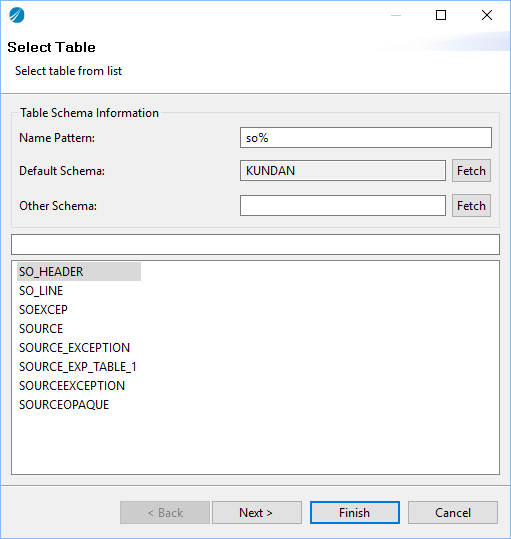

  2. Click Add table . The Select Table wizard is displayed.
  3. Enter a pattern name to search the table.
    You can also use the % character to search for table names.

  4. To fetch data from other schema, click Fetch beside the Other Schema field.
  5. Select a table from the list of tables displayed in the area below and click Finish.

Setting Up a Relation Between Parent and Child Tables

You can set up a relation between the parent and child table by using Join To for the DataEventPoller activity and the DataMerger activity. For applying a Join To relation between a parent and child table, you must set at least one field as the User Key in the child table or clear the Allow Key Columns check box.

Procedure

  1. If you want to apply the Join To relation only on fields having a user key, select the Allow Key Columns Only check box. If you clear the Allow Key Columns Only check box, the Join To relation is applied on any fields from the parent table.
  2. Select the Update Trigger check box to ensure that the selected column is updated by the database application.

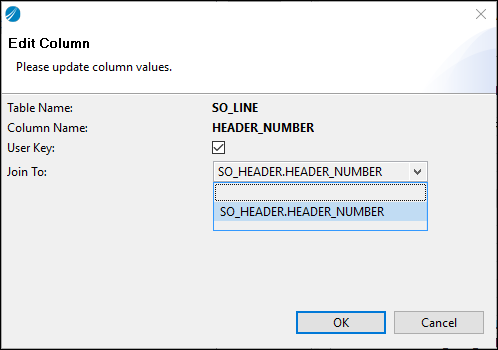

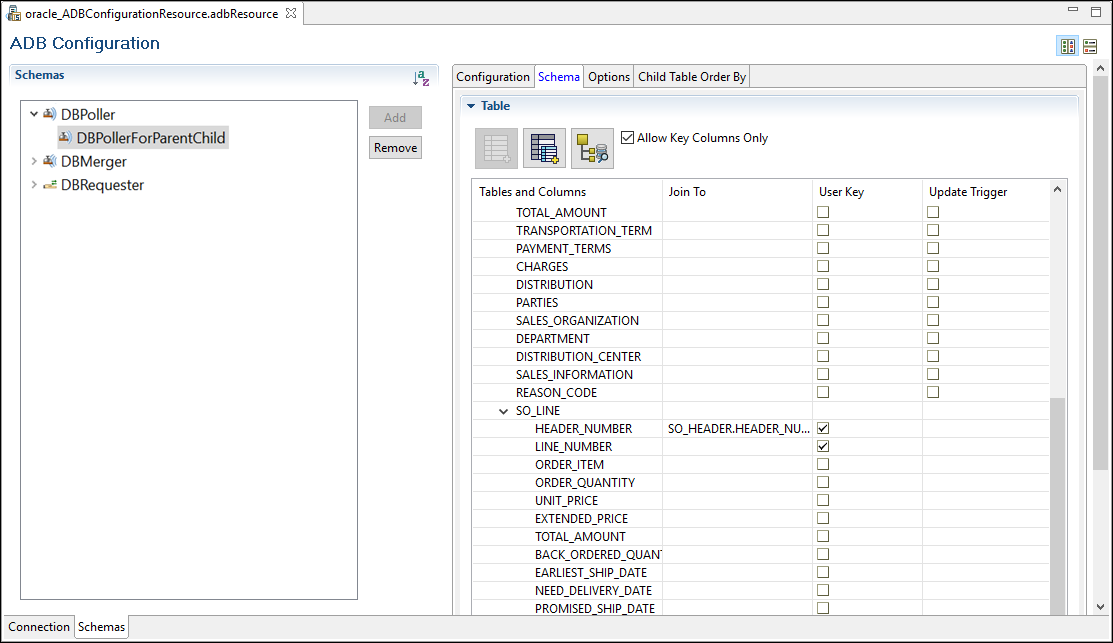

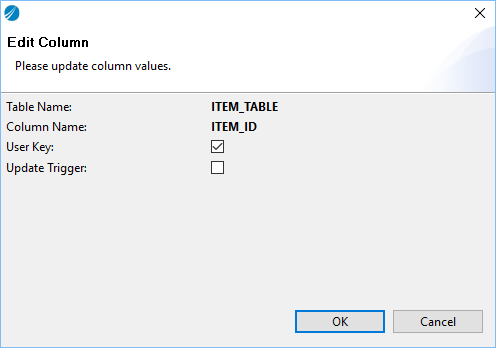

    You can edit the information for Join To, User Key, and Update Trigger columns of the child table in a dialog box by double clicking the table name.

Refresh the Schema

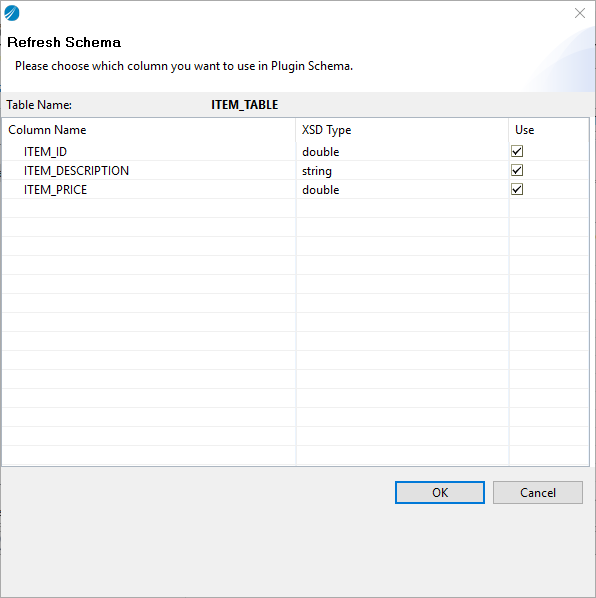

Refresh the existing schema or change the columns used, by using Refresh Schema from DB .

Specifying the Columns of an Order By Clause for a Child Table

When a child table is added to a parent table, it is displayed on the Child Table Order By tab. You can specify the columns of an Order By clause used for each child table query. The plug-in returns the child table result set in a particular sequence. To specify the columns of an Order By clause for a child table for the DataEventPoller activity and the DataMerger activity:

Procedure

  1. On the ADB Configuration page, navigate to the Schemas > Schema tab.
  2. Click Select Columns on the Child Table Order By tab.

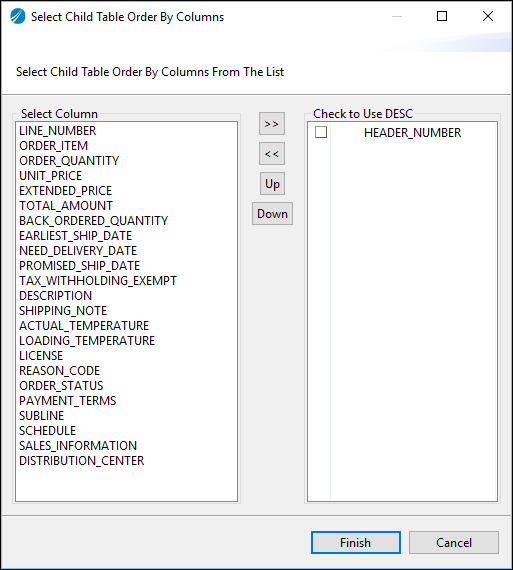

    The Select Child Table Order By Columns wizard opens.

  3. Select the fields depending on the order you want and move them to the right panel by using . Similarly, you can use to move them back to the left panel. You can also reorder the sequence by using the Up and the Down buttons.
  4. If you want to get the values of a field in a descending order, select the check box beside the appropriate field in the right panel, that is, the Check to Use DESC panel. The default order is the ascending order.
  5. Click Finish.

Adding a Procedure to an RPC Custom Operation

To add a procedure to an RPC custom operation:

Procedure

  1. In the ADB Configuration window, select DBRequester and add a schema with RPC mode.
  2. Select the Use Custom Operations check box.
  3. On the Schema tab, click Add Operation .

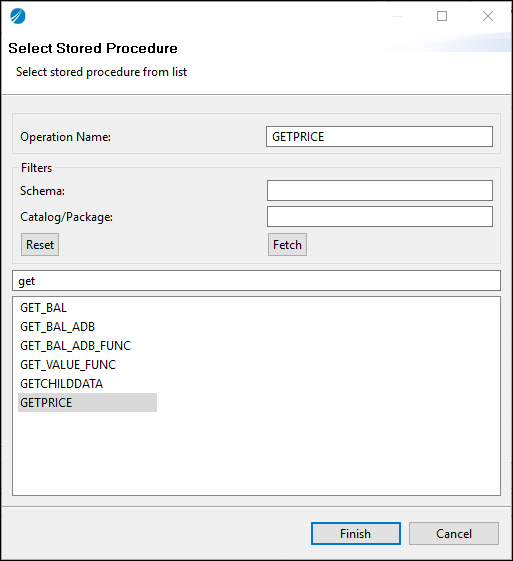

    The Select Stored Procedure window is displayed. By default, the Operation Name field displays all the procedures from the default schema that you have specified on the Operation Name tab.

  4. In the Select Stored Procedure dialog box, specify Operation Name.
    • To select the default procedure (Operation Name), click Fetch and then click Finish.
    • To select another procedure, set the filters as required and click Finish.

      Hint: You can click Reset to clear existing data and select another operation name and filters.

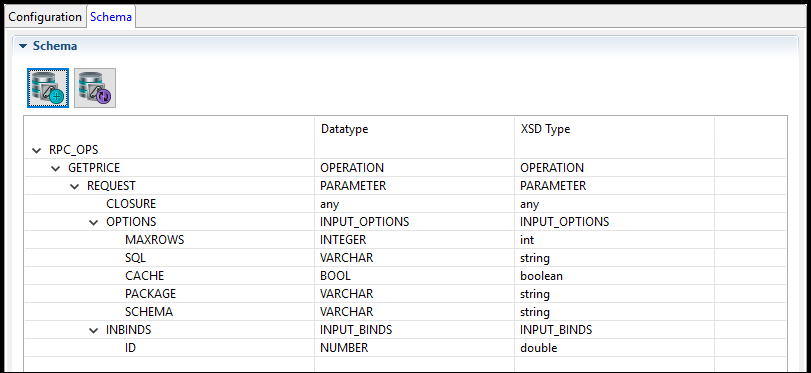

    The operation you select is displayed on the Schema tab.
  5. Optional: Set filters as required to fetch the procedure and click Finish.
  6. To select a different operation name and filters, click Reset.
    The operation you selected is displayed on the Schema tab.
