The OracleParent project contains one process:
oracleparent.PublishParentData process. The project shows how the plug-in handles polling of data from publishing table.

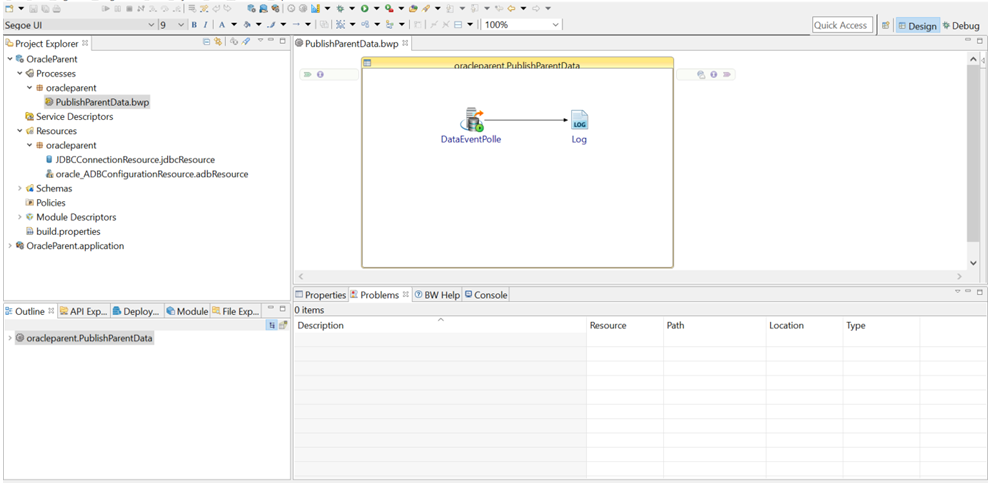

PublishParentData Process
In this example, the DataEventPoller activity polls the data from the publishing table. The following figure shows the PublishParentData process:

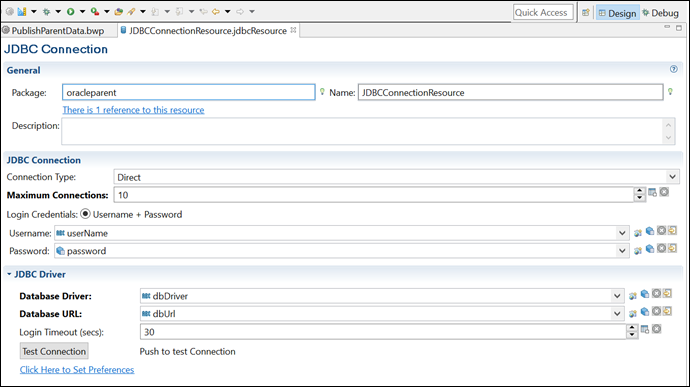

JDBC Connection Resource
In this example, the JDBC Connection resource is configured as follows:

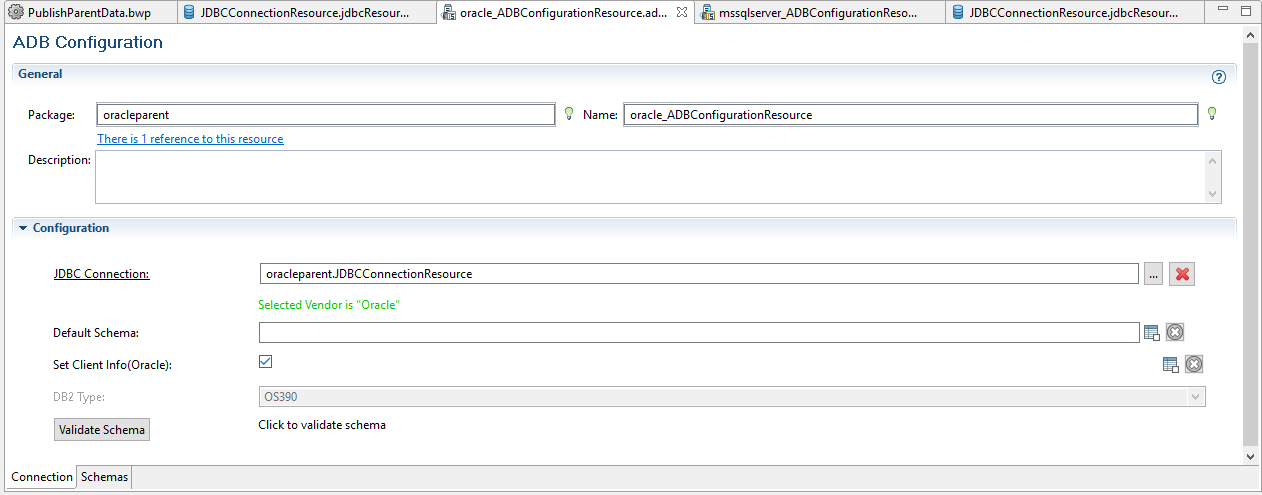

ADB Configuration Resource
In this example, the ADB Configuration resource is configured as follows:
The table schema is defined by using the Schemas tab. The different tabs on the right are shown below.

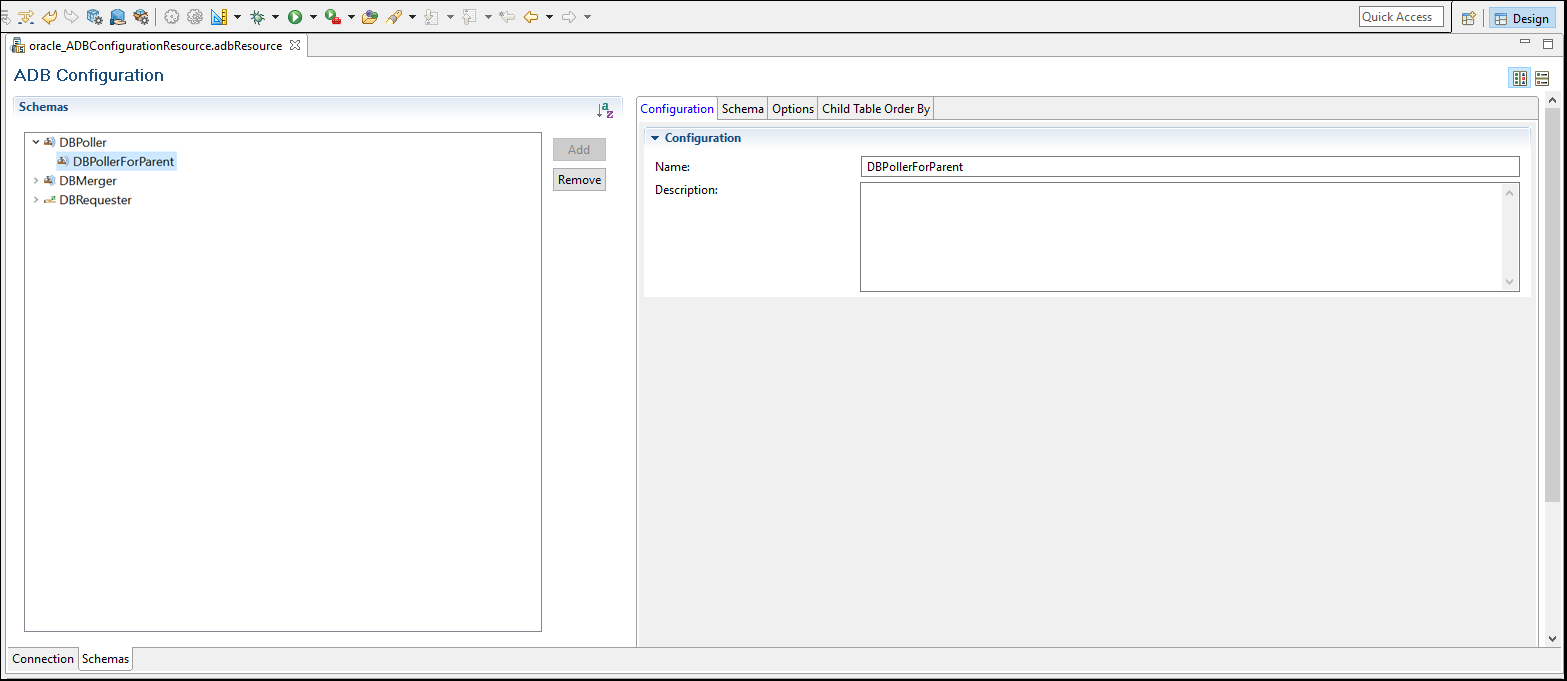

The Configuration tab:

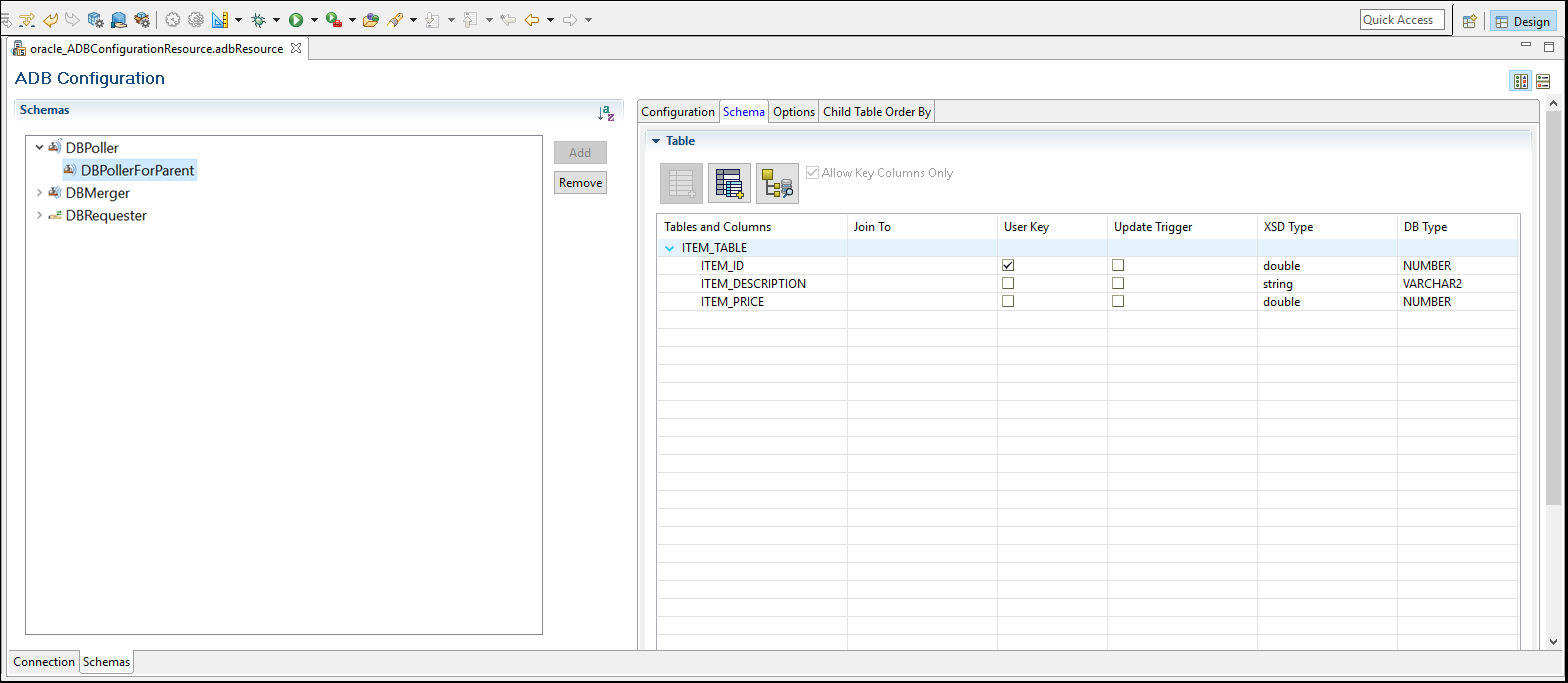

The Schema tab:
6in

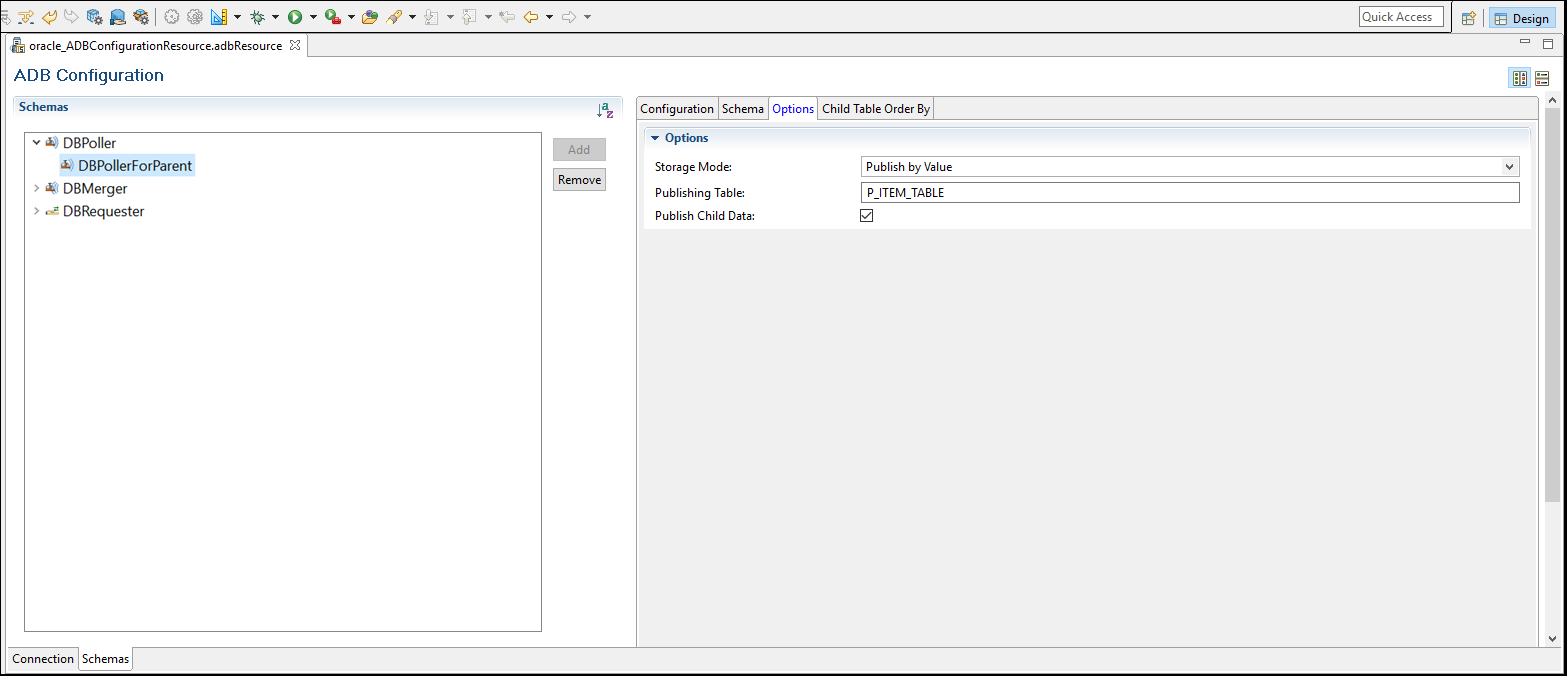

The Options tab:
The Child Table Order By tab:
