The OracleParentChild project contains one process: oracleparentchild.PublishParentChildData process. This project demonstrates how the plug-in handles polling of data from publishing table.
PublishParentChildData Process
In this example, the DataEventPoller activity polls data from the publishing table and corresponding data from the child table. The following figure shows the PublishParentChildData process:

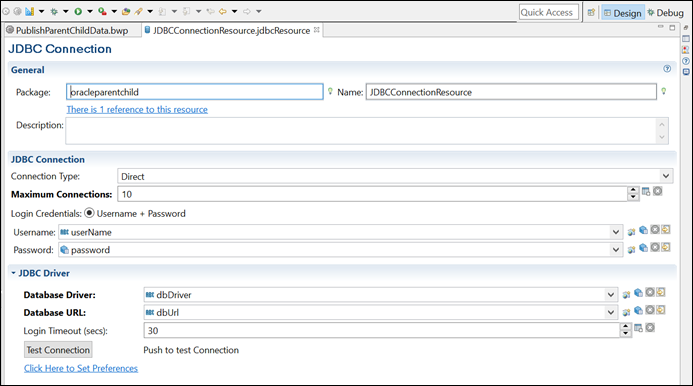

JDBC Connection Resource
In this example, the JDBC Connection resource is configured as follows:

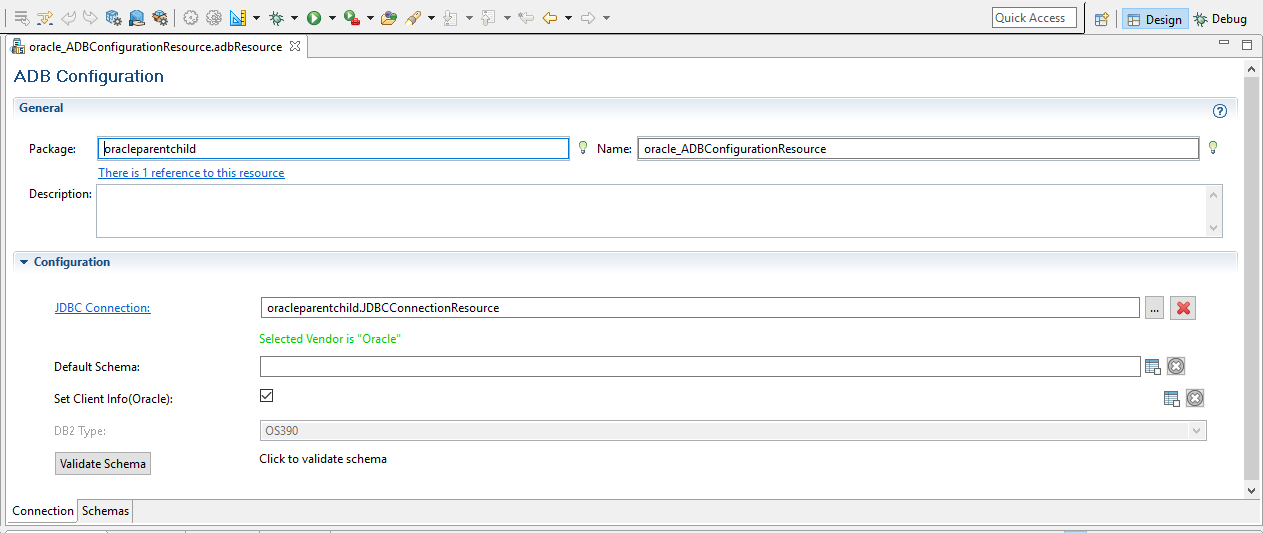

ADB Configuration Resource
In this example, the ADB Configuration resource is configured as follows:
The table schema is defined by using the Schemas tab. The different tabs on the right are shown below.

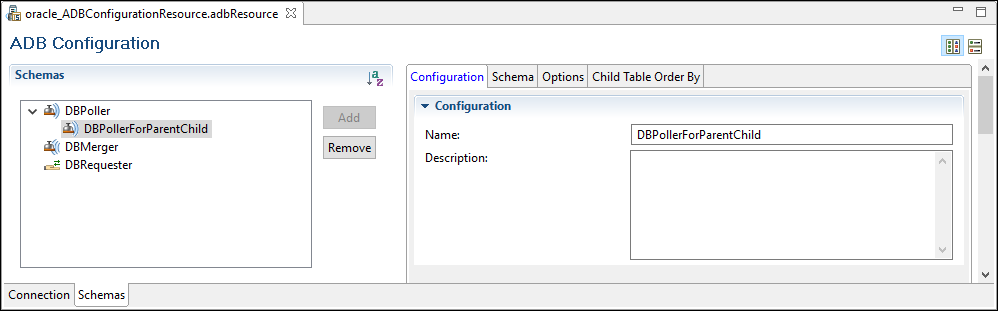

The Configuration tab:

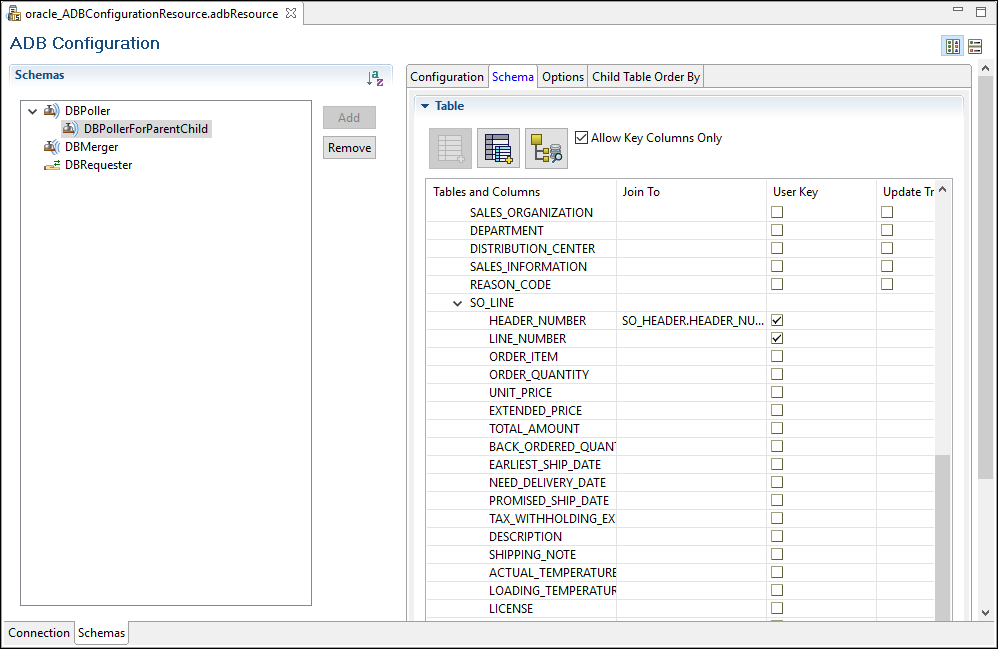

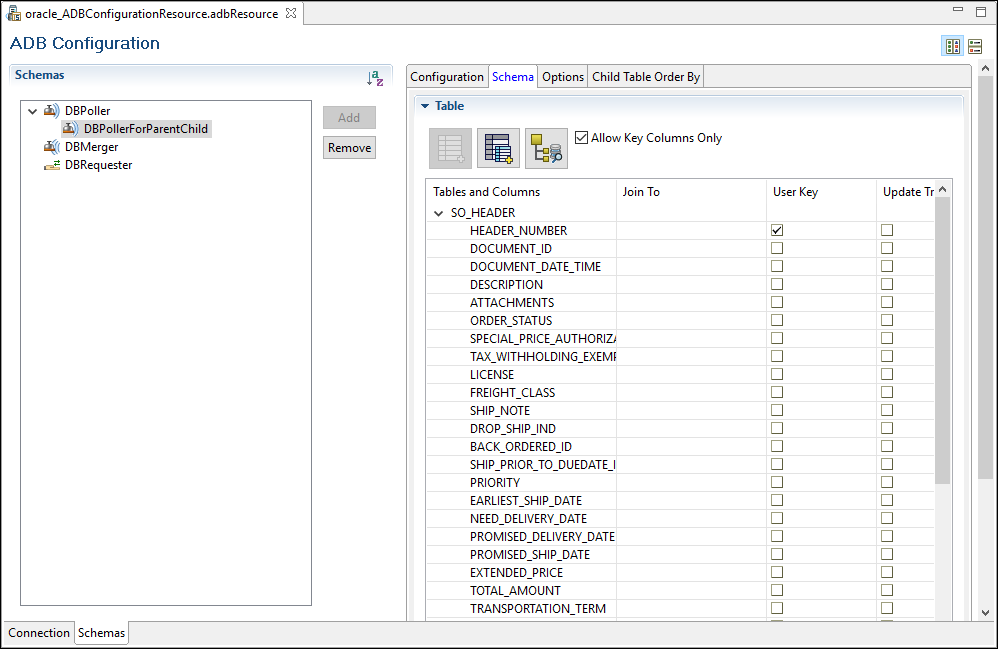

The Schema tab:

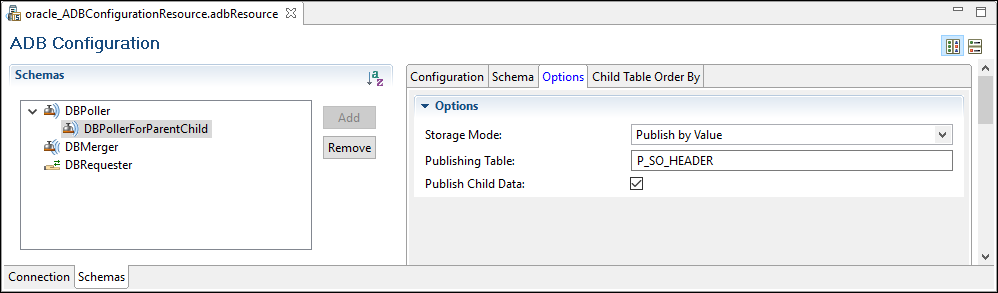

The Options tab:

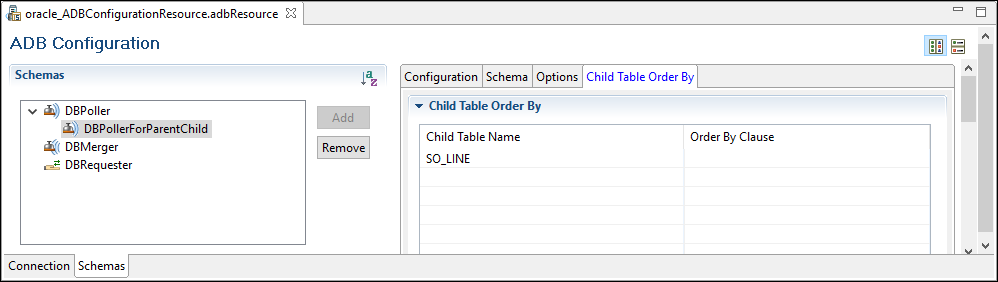

The Child Table Order By tab:
